February 23/08
Last run in HK-J series
Condar series
Maple, 18% moisture, 78.0 lbs
5 round pieces of maple, with 3 pieces of white birch on top, 2 on bottom, 10pieces
Warm heater (162F firebox temp)
cold fuel
Side ignition, cold kindling, 4.0 lbs
Similar to run HK-J29, 1/2 lb more kindling, larger load.
Nice clean start, then fire overamped at 27 minutes, creating large opacity spike for 10 minutes.
Dark grey smoke from stack. However, PM number still reasonably low, indicating that this was pure soot with no tar, as would be expected at this stage in the burn.
This is an interesting demonstration of the high opacity, low mass nature of the soot component of PM.
Condar Summary
|
Flue Gas Data
Opacity
|
|
|
February 22/08
Condar series
Mixed hardwood
18% moisture, 70.3 lbs
Round pieces, 2 small pieces of white birch on top, 9 pieces
Stack sloped slightly towards kindling
Warm heater (132F firebox temp), cold fuel
Side ignition
Cold kindling, 3.5 lbs (not enough)
Almost identical load to run HK-J26 (very clean), except a borderline start, requiring one additional piece of kindling.
Interesting example of non-linear system -- high sensitivity to initial conditions.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
February 21/08
Condar series
Maple, 16% moisture, 50.3 lbs
Small pieces, smaller on top, 11 pieces
Stack sloped towards kindling
Warm heater (144F firebox temp), cold fuel
Side ignition
Cold kindling, 4.0 lbs (too much)
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
February 20/08
Condar series
White birch, 20% moisture, 70.0 lbs
Medium pieces, smaller on top
10 pieces
Stack sloped towards kindling
Cold heater (90 F firebox temp)
Cold fuel (-5 F)
Cold kindling, 3.5 lbs with 2.25 lbs extra added at 18 minutes (see opacity curve)
Side ignition.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
February 18/08
Condar series
Maple, 17% moisture, 68.5 lbs
Medium pieces, all round pieces, smaller on top, 10 pieces
Stack sloped towards kindling
Warm heater (180F firebox temp), warm fuel
Side ignition.
Cold kindling, 3.5 lbs.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|

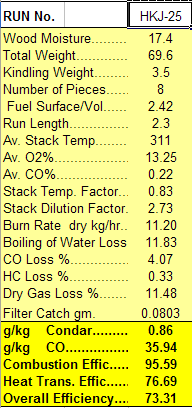

February 17/08
Condar series
Maple, 17% moisture, 69.6 lbs
Large pieces, smaller on top, 8 pieces
Stack sloped towards kindling
Warm heater (167F firebox temp), warm fuel (40F)
Side ignition.
Cold kindling, 3.5 lbs
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
February 16/08
Condar series
White birch, 20% moisture, 61.3 lbs
Large pieces, smaller on top, 8 pieces
Stack sloped towards kindling
Warm heater (145F firebox temp), cold fuel (0F)
Side ignition.
Cold kindling, small kindling, large amount, very rapid start.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
February 15/08
Condar series
White birch, 20% moisture, 70.5 lbs
Very large pieces, smaller on top
7 pieces
Stack sloped towards kindling
Warm heater (137F firebox temp), warm fuel, side ignition.
Cold kindling, needed boost with torch
Last 10 minutes of gas data lost - substituted with estimated data.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
February 14/08
Condar series
White birch, 20% moisture, 59.3 lbs
Large and small pieces, 10 pieces
3.0 lbs kindling
Warm heater (160F firebox temp), warm fuel.
Start was too fast with the birch bark catching right away.
Side ignition.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
February 13/08
Condar series
White birch, 20% moisture, 65 lbs
Large pieces, 8 pieces, 3.5 lbs kindling
Cold heater (80F firebox temp), cold fuel (10F)
Side ignition.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|

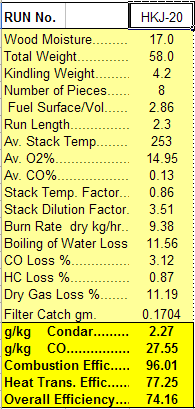

February 11/08
Condar series
Maple, 17% moisture, 58 lbs
Large pieces, 8 pieces, 4.2 lbs kindling
Cold heater (50F firebox temp), cold fuel (0F)
Side ignition

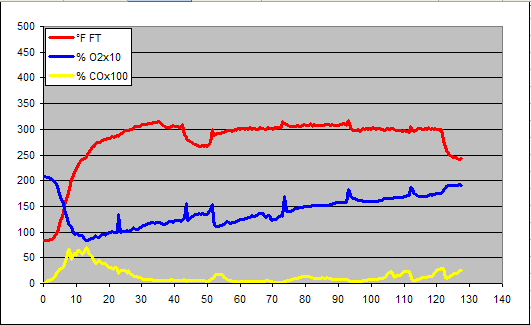

Compare with HK-J19, below
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|

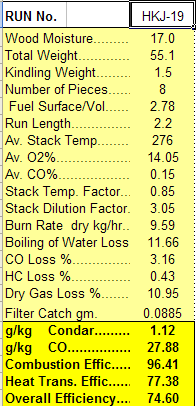

February 6/08
Condar series
Maple, 17% moisture, 55 lbs
Large and small mixed, 8 pieces
1.5 lbs kindling
Cold heater (48 hrs, 100F firebox temp), cold fuel
Bottom ignition.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|

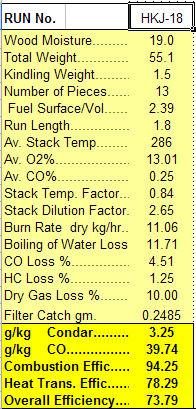

February 4/08
Condar series
White birch, 19% moisture
55 lbs, 13 pieces, 1.5 lbs kindling
Warm heater, warm fuel, small fuel
Bottom ignition, regular air slot
Kindling went out, restarted with torch.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
February 3/08
Condar series
Mixed hardwood
21% moisture, 64 lbs
8 pieces, 3.2 lbs kindling
Warm heater, warm fuel
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
February 2/08
Condar series
Wet hardwood, maple and oak
35% moisture, 84 lbs
12 pieces, 12 lbs kindling
Cold heater (66F), side kindling
Difficult to start. Had to add more kindling twice.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 30/08
Condar series
Large and small maple, 16% moisture,
53 lbs, 9 pieces, 3.3 lbs kindling
Warm heater, cold fuel, side kindling
Clean run. Piece #1 on bottom was too large, difficult to manage coals at end.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 29/08
Condar series
Large and medium maple, 16% moisture,
65 lbs, 8 pieces, 5.5 lbs kindling
Warm heater, cold fuel, side kindling
Mis-start, extra newspaper added.
Also, fuel pile was slow to catch and required 1.5 lbs added kindling.
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 28/08
Condar series
OMNI ASTM fuel crib, 44.6 lbs
10% moisture
12 pieces, 2 lbs kindling
Room temp fuel. Warm heater (24 hrs)
Kindling from the side.
Regular air slot in front - 1"

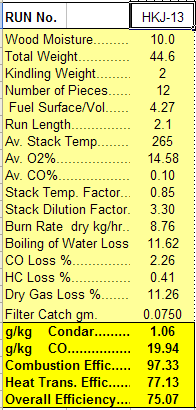

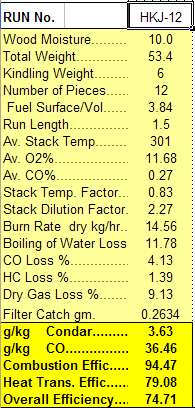

Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 27/08
Condar series
OMNI ASTM fuel crib, 47.2 lbs
10% moisture
12 pieces, 6 lbs kindling
Room temp fuel. Warm heater (24 hrs)
Kindling from the bottom (underneath pile)
Modified air - front slot reduced 50%
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 26/08
Condar series
White birch, small pieces
19% moisture
medium load 41 lbs
12 pieces, 1.8 lbs kindling
Cold fuel. Cold heater (66F)
Kindling from the bottom (underneath pile)
Modified air - front slot reduced 50%
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 23/08
Condar series
Maple, large pieces, 16% moisture,
large load 70 lb.
6 pieces, 2.5 lbs kindling
Cold fuel (0F). Cold heater (66F)
Kindling from the bottom
(underneath pile)
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 21/08
Condar series
White birch, large and small pieces
Cold fuel (0F)
Cold heater (50F)
Kindling from the bottom
(underneath pile)
Condar Summary
|
Flue Gas Data
Opacity
|
|
January 16/08
Condar series
Hard maple
medium and large pieces
Cold fuel, stacked in warm firebox for 90 minutes.
Warm heater (24 hrs)
Condar Summary
|
Flue Gas Data
Opacity
|
|
|
January 15/08
Condar series
White birch
large pieces
Cold fuel, stacked in warm firebox for 90 minutes. Warm heater (24 hrs)
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 14/08
Condar series
White birch
medium pieces
Cold fuel, stacked in warm firebox for 90 minutes. Warm heater (24 hrs)
Condar Summary
|
Flue Gas Data
Opacity
|
|
|
January 13/08
Condar series
Hard maple
medium pieces
Cold fuel, stacked in warm firebox for 4 hours. Warm heater (24 hrs)
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 13/08
|
gas leak. Estimated values in order to obtain approximate Condar number
|
See page for details. |
|
January 11/08
Condar series
White Birch
Small pieces
Cold fuel, cold heater
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 5/08
Condar series
Mixed hardwood
large pieces
Cold fuel, warm heater
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
January 4/08
Condar series
White birch
medium pieces
Cold fuel, cold heater
Condar Summary
 |
Flue Gas Data
Opacity
|
|
|
March 11/07
Reference run.
This run was a best guess as to an optimum fuel loading and optimum air.
Very clean, low PM, low CO, good efficiency.
Stack temperature is hight, partly due to measurement location - see discussion for Series HKI
This run will serve as a benchmark for comparison for future tests.
Jan 9/08: Condar summary added
Condar Summary .
|
Flue Gas Data
Opacity
|
|
| |
|
|
