2008 Condar Tests

Test HK-J07
January 15/08

White birch, large pieces, 21% moisture, large load 79.1 lbs
8 pieces, 4.5 lbs kindling
Cold fuel, stacked in warm firebox for 90 minutes. Warm heater (24 hrs)

Animation HK-J
Animation, 2 minute intervals.

gas analysis
Flue gas

Somewhat slow start. Kindling was stacked a little tight, so fire tunnelled through the newspaper to the back right away.
Ashbox door was accidentally left closed with 50% air, AB door opened at 12 minutes.

Ashbox door was closed at 32 minutes. (air control full open), evidenced by stack temperature (red curve) drop.
Also a huge, short, CO (yellow curve) spike.

Bells were closed to start, opened at 40 minutes. They add about 2% in efficiency. If the bells were openend permanently, stack would
take longer to get up to temperature - it is unclear at this point whether that would increase emissions on the start, and needs further

Big dip in oxygen (blue) curve at 90 minutes is when fuel pile collapses.

TESTO Excel data file

The spike at 32 minutes is when air is cut back (ashbox door closed).
With a very large fuel load such as this, it may be advantageous to delay closing the door to 350F.

Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

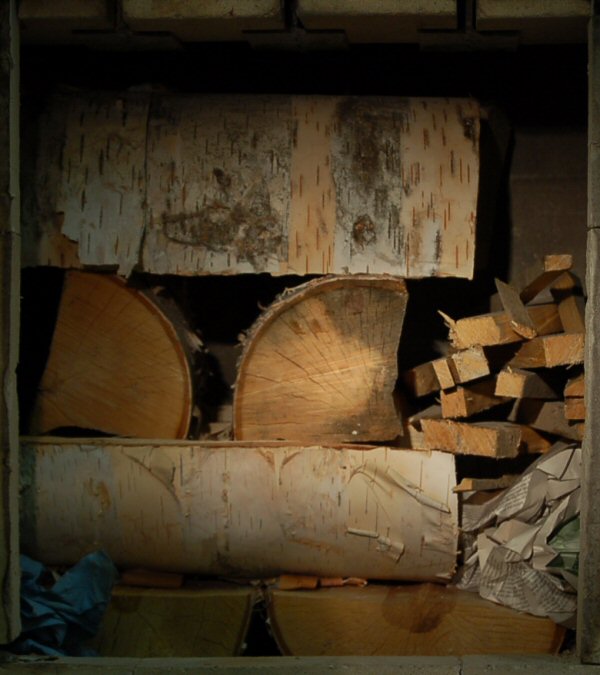

Fuel stack.

Fuel load J07
Fuel load.

Graphical data comparison of Condar tests
