2008 Condar Tests

Test HK-J30
February 23/08

Maple, 18% moisture, 78.0 lbs
5 round pieces of maple, with 3 pieces of white birch on top, 2 on bottom, 10 pieces total
Warm heater (162F firebox temp), cold fuel
Side ignition
Cold kindling, 4.0 lbs

Similar to run HK-J29, 1/2 lb more kindling, larger load.
Nice clean start, then fire overamped at 27 minutes, creating large opacity spike for 10 minutes.
Dark grey smoke from stack. However, PM number still reasonably low, indicating that this
was pure soot with no tar, as would be expected at this stage in the burn.
This is an interesting demonstration of the high opacity, low mass nature of the soot component of PM.

Animation HK-J
Animation, 2 minute intervals.

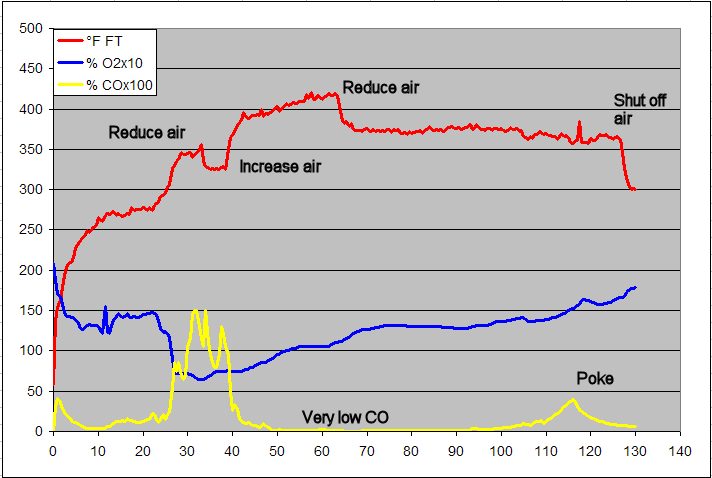

gas analysis
Flue gas

TESTO Excel data file

opacity
Opacity
Note that the opacity spikes lag the CO spikes, and there is no corresponding opacity spike for the CO spike at the end.

Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

HK

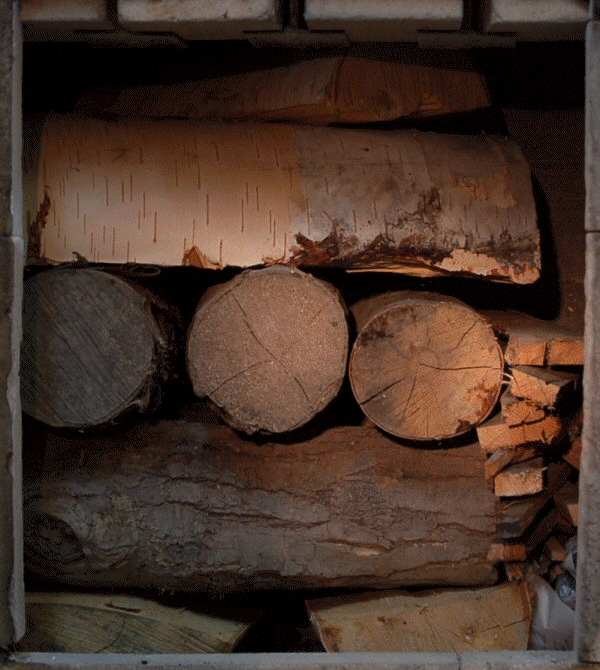

Fuel stack. Kindling on right side.



fuel pieces
Fuel pieces, numbered 1 - 10 from left to right.

Graphical data comparison of Condar tests


This page was updated on December 28, 2008
This page was created on February 24, 2008
