Test HK-J12
January 27/08
ASTM fuel crib supplied by OMNI, 10% moisture 47.2 lbs
12 pieces, 6 lbs kindling
Room temp fuel. Warm heater (24 hrs)
Kindling from the bottom (underneath pile)
Modified air - front slot reduced 50%
Animation, 2 minute intervals.

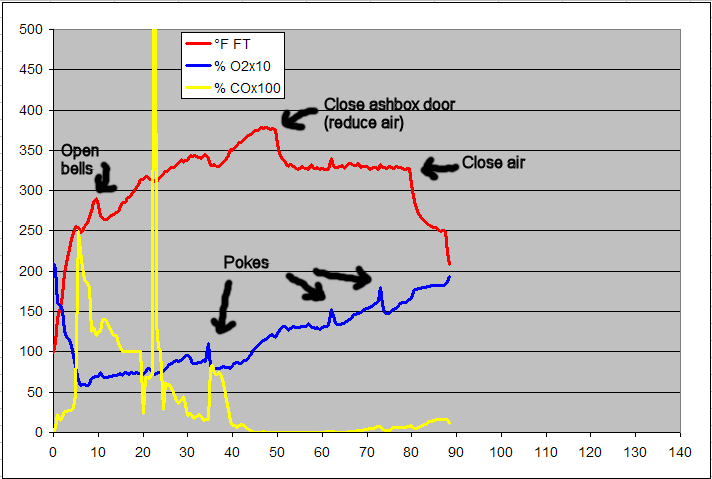

Flue gas
Condar Spreadsheet Results
Condar Spreadsheet (includes detailed fueling data)

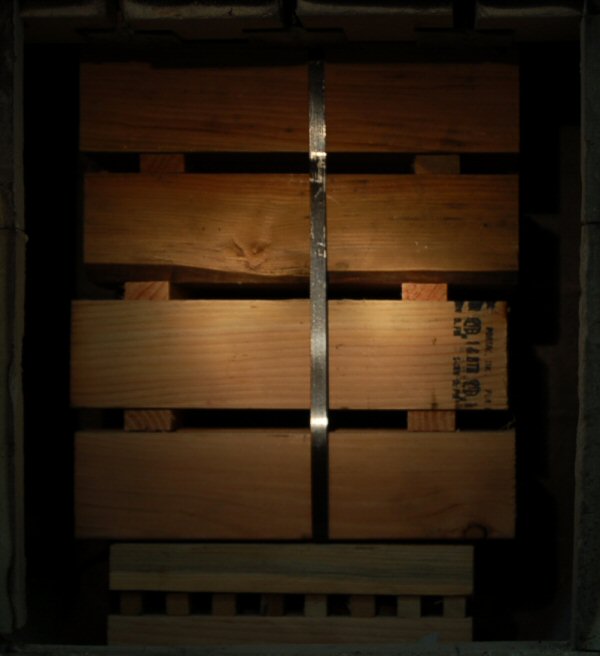

Fuel stack. Top crib sits on top of kindling crib. Top crib should be turned 90 degrees, but there was
not enough room in the firebox.

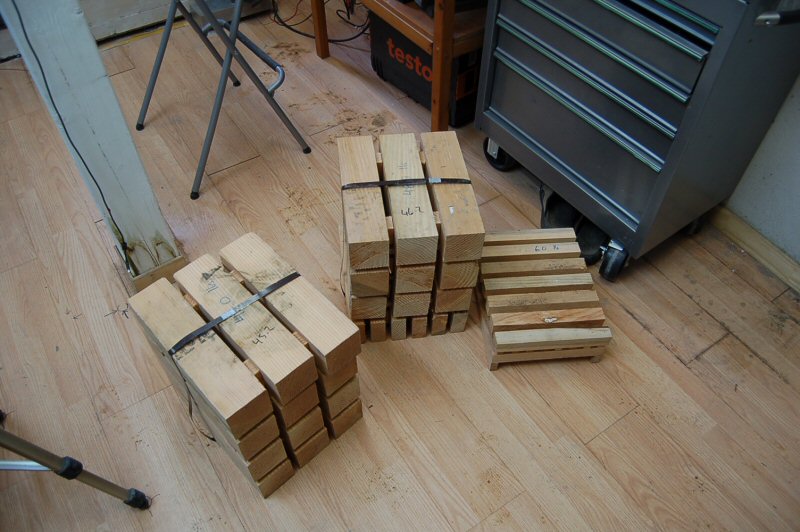

Fuel cribs. The two rightmost cribs were used for this test, with the smaller kindling crib underneath
Graphical data comparison of Condar tests
