Saltspring Bakeoven Details

  Custom bake oven and fireplace for rammed earth house, Saltspring Island, British Columbia.

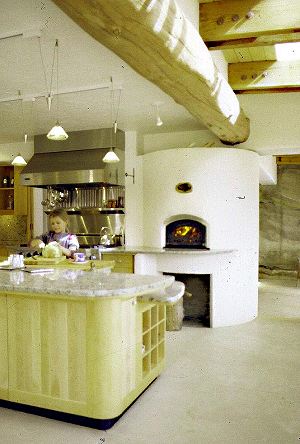

Family room fireplace is used to fire large kitchen bakeoven. In this photo, the bakeoven is being fired separately

custom bake oven and fireplace

Photo credits: photos above: Phillip van Horm
all photos below: John Fulkner

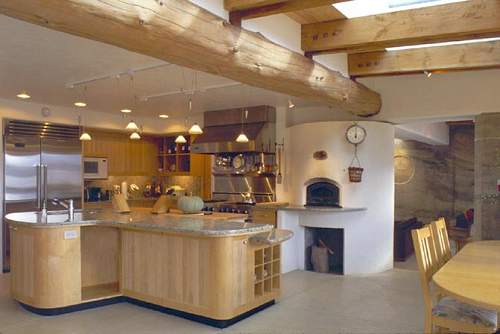

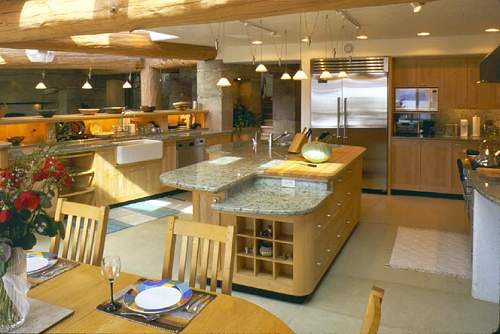

View of kitchen

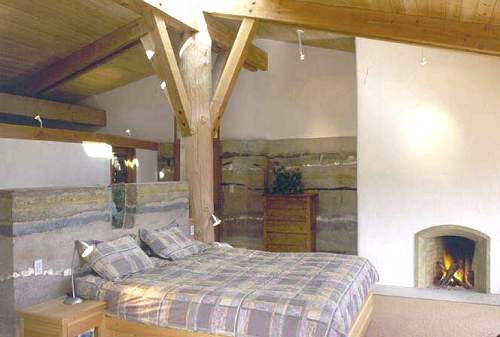

Rumford fireplace in master bedroom

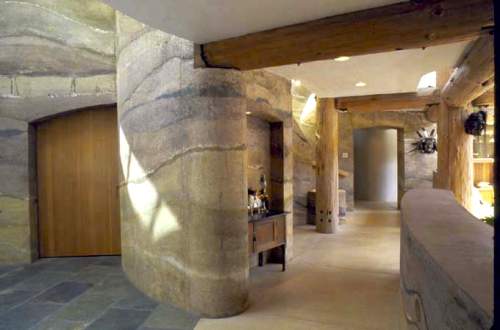

Rammed earth details in hallway.

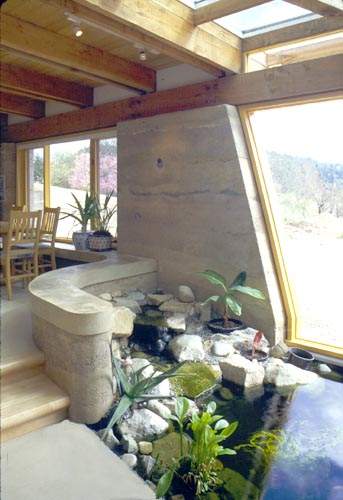

Indoor/outdoor pond

Architect: Phillip Van Horn
Mason: Richard Dakin
Photo Credits: John Fulkner, except first two photos (Phillip van Horn)
Technical design and custom refractory castings by Masonry Stove Builders

Oven Technical Details:

Schematic:

Scroll down while image is loading

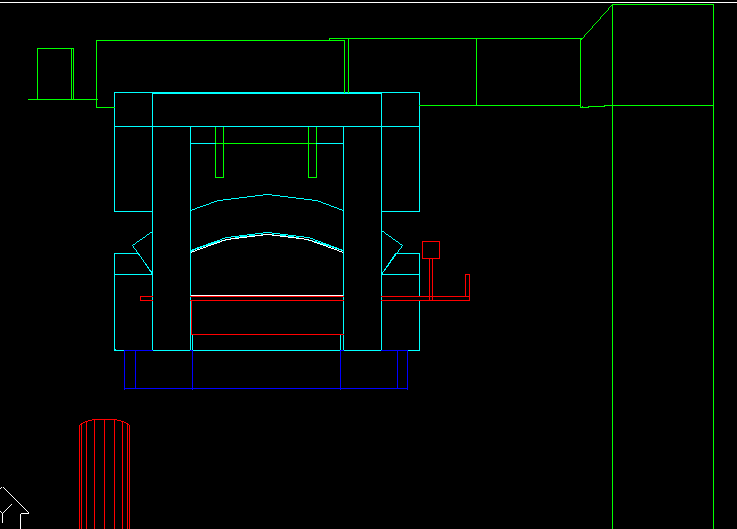

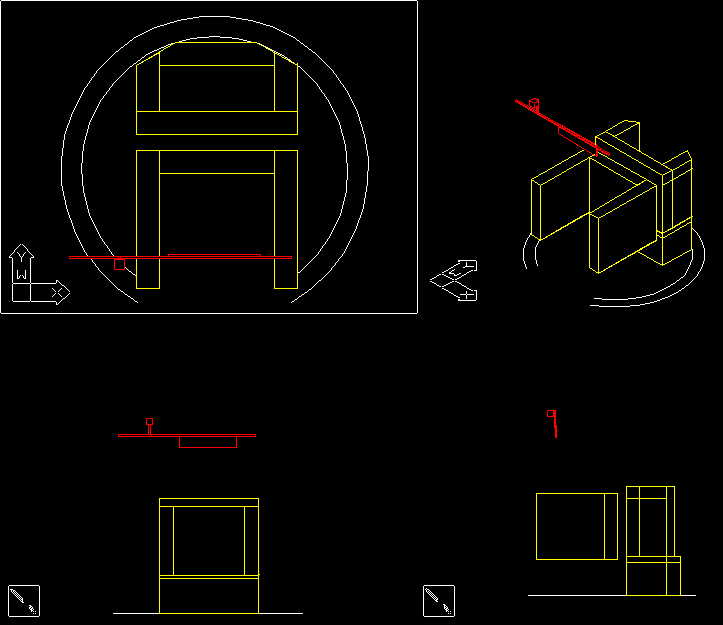

3d model, fireplace layer

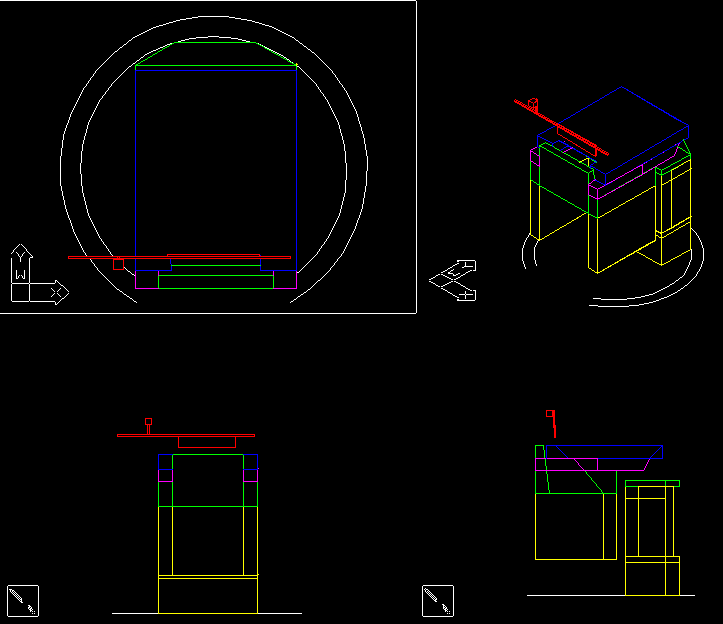

as above, throat layer turned on

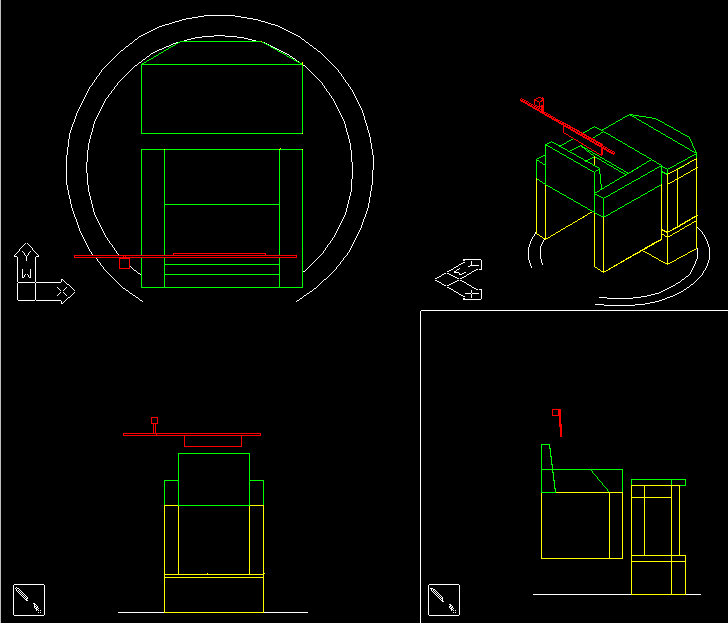

as above, showing oven floor insulation

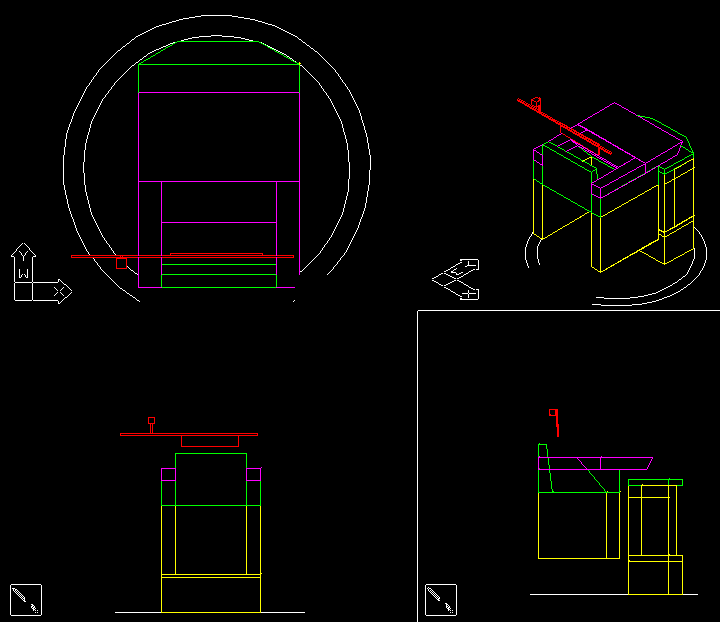

as above, oven floor layer turned on

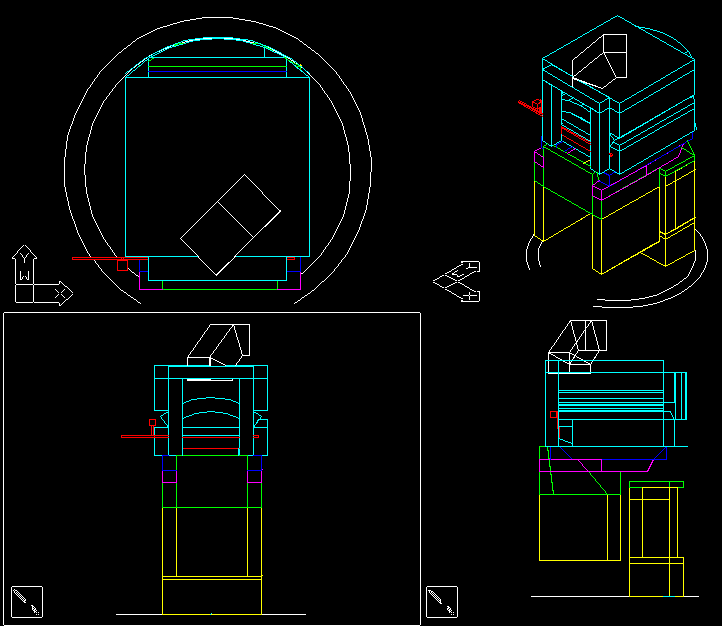

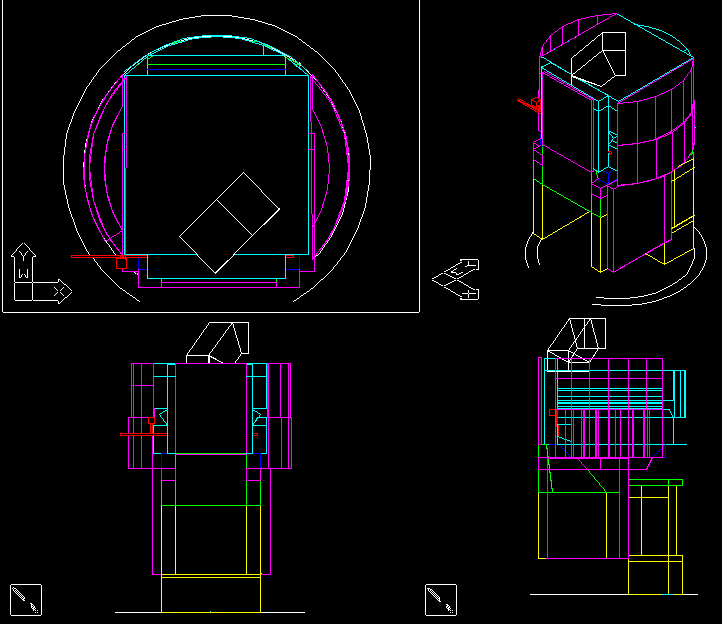

as above, oven layer turned on
as above, insulation layer turned on

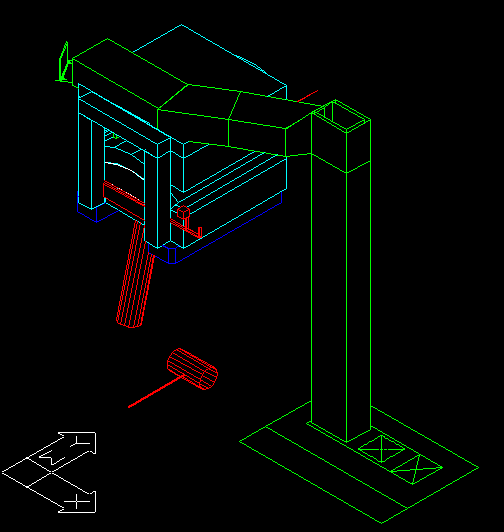

bypass damper detail 1
bypass damper detail 2

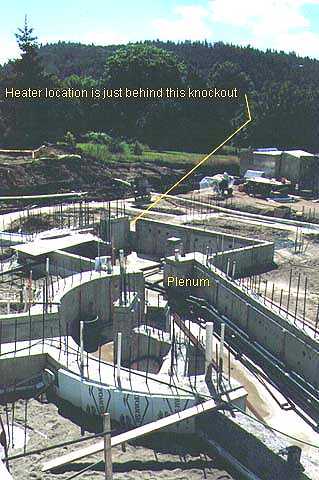

Construction progress photo

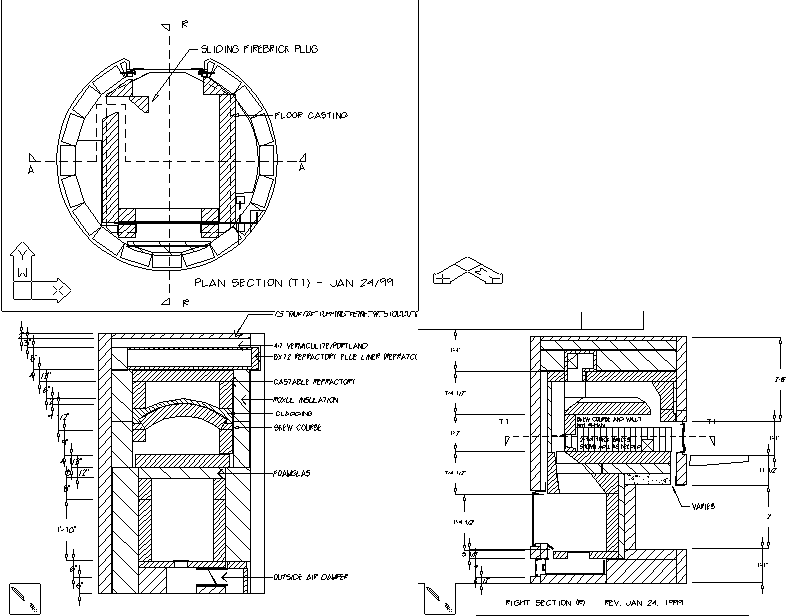

drawingsConstruction drawings

Architect's email: pvanhorn@saltspring.com
More architectural details of this house
