2016 MHA Research Heater Tests

Test MHA-1625
March 8, 2016

Birch/oak  mix
Log cabin stacking, side ignition,
63.0 lbs including 3.0 lbs kindling
17.7% moisture.

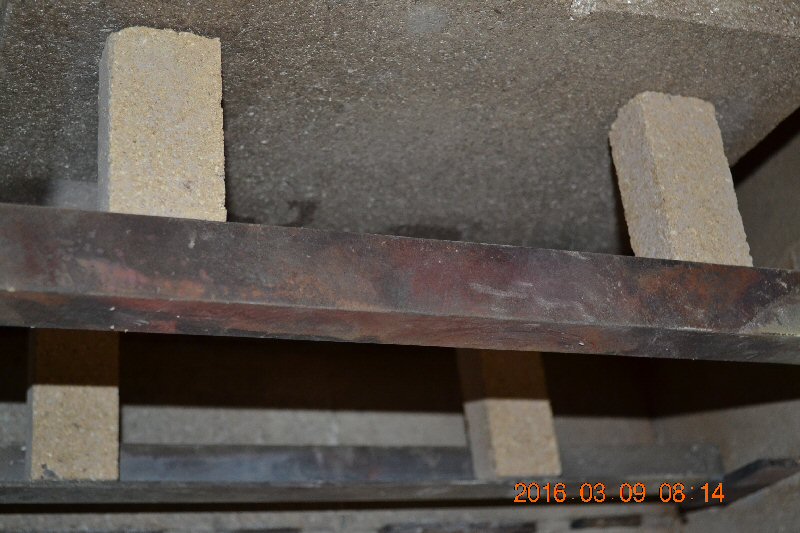

Baffle supports opened up. See photo below.
Air slots in firebox unblocked, except for top course (25% restriction)
See MHA-1623 for other modifications.

Baffle supports opened up. See MHA-1624 for baffle setup

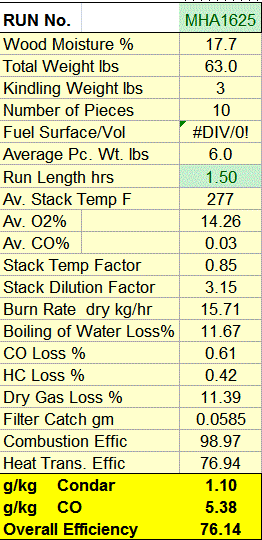

Condar Spreadsheet

Testo Raw Data

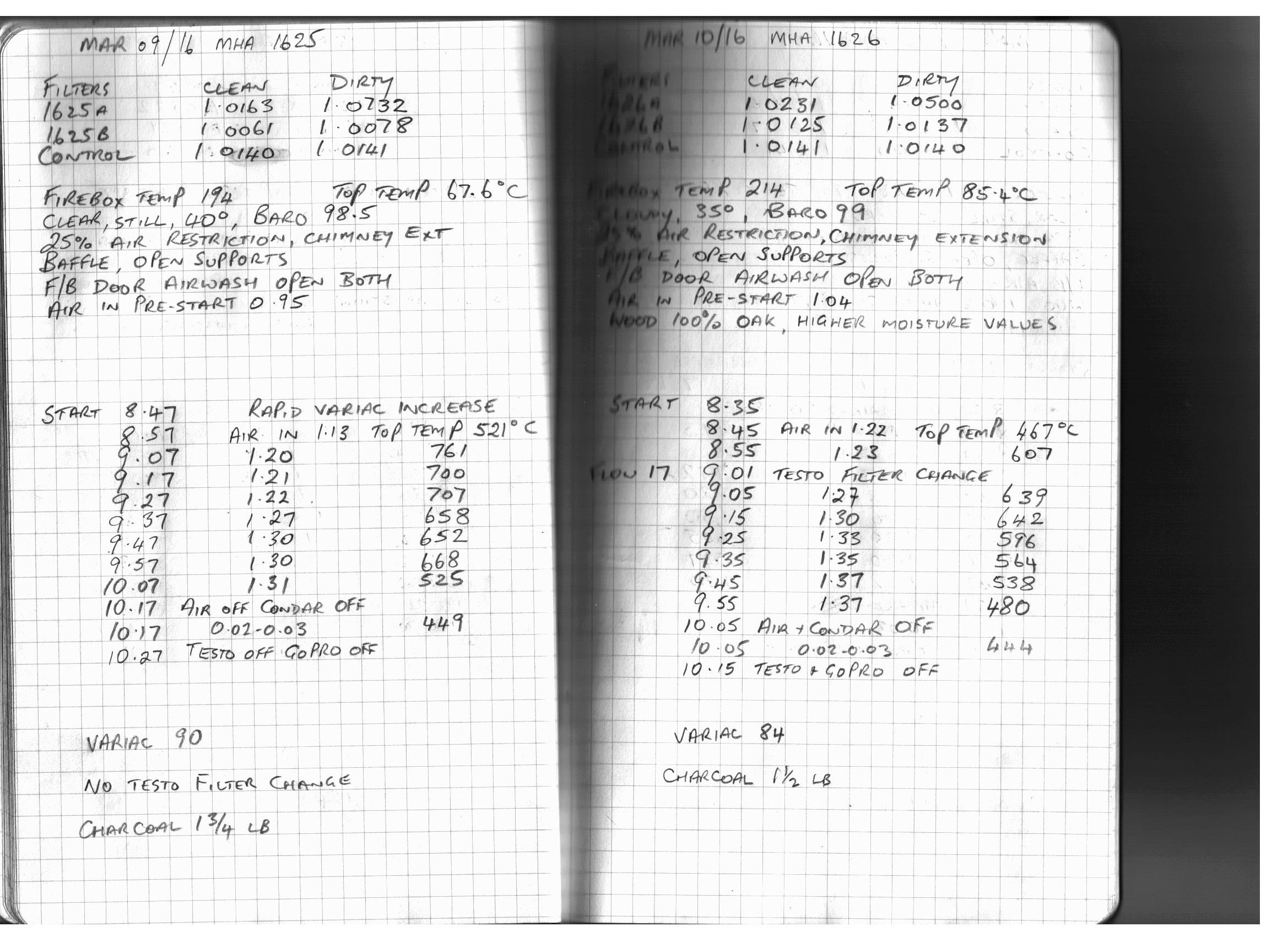

Lab Notes

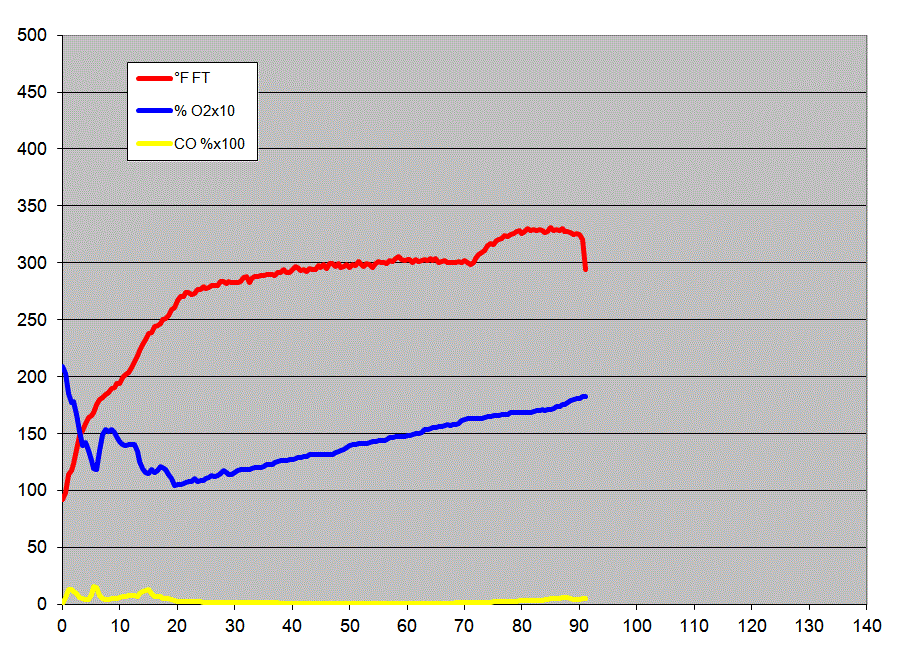

Gas graph.

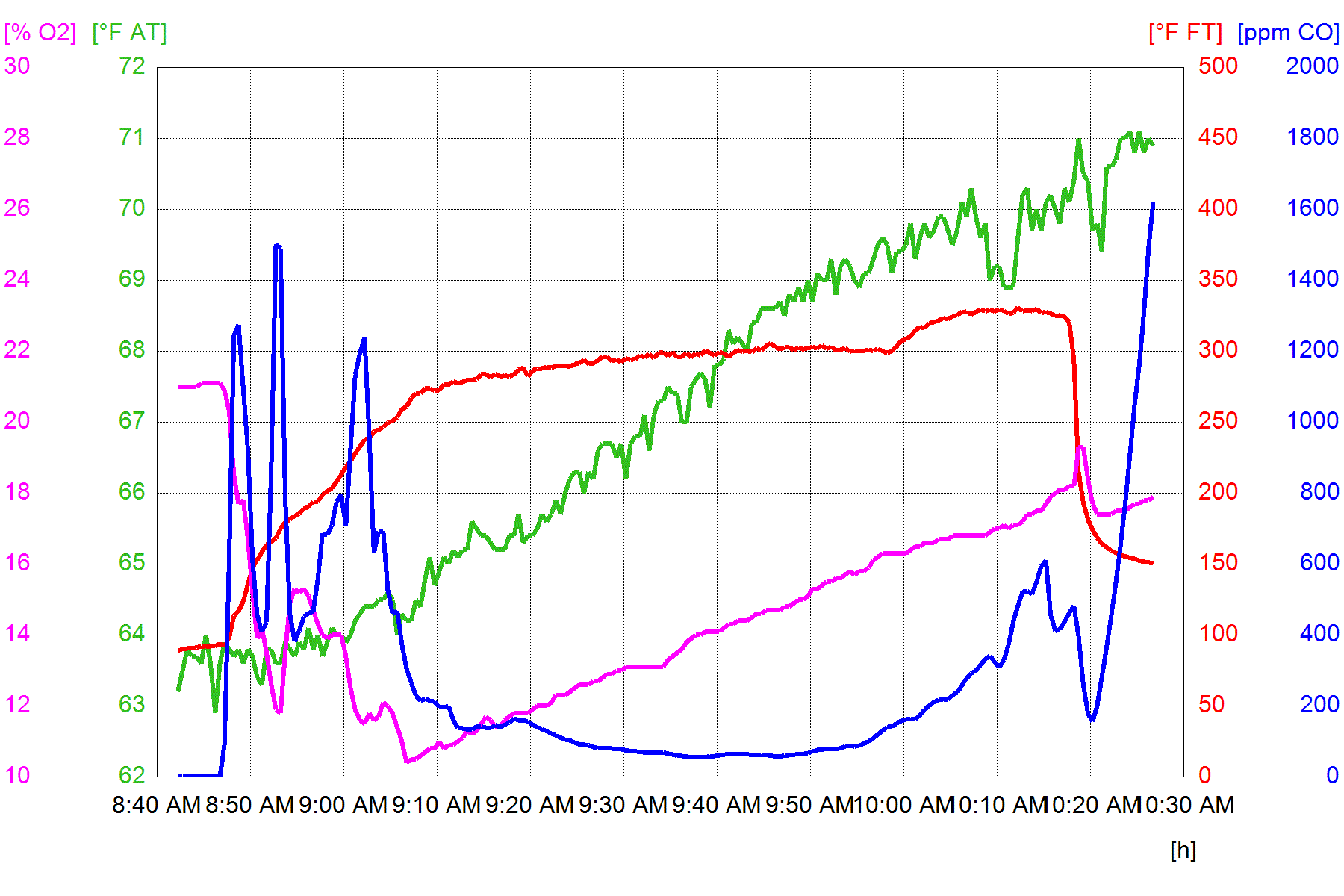

Testo gas graph.

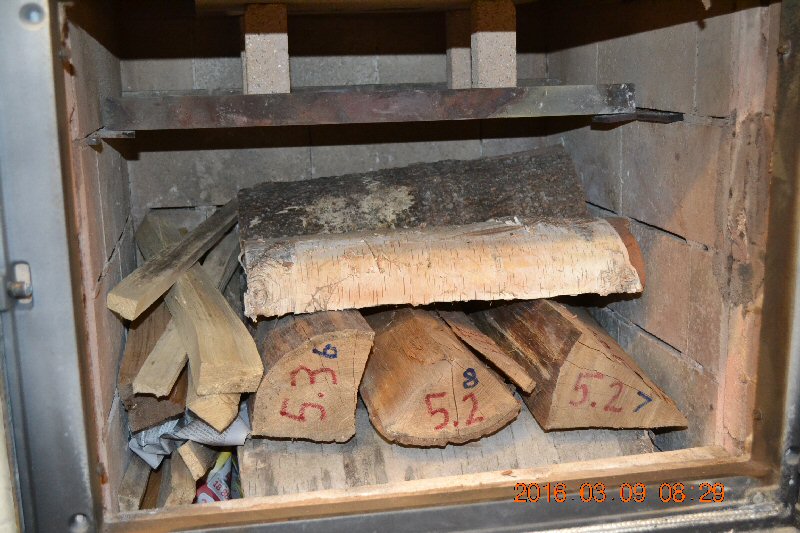

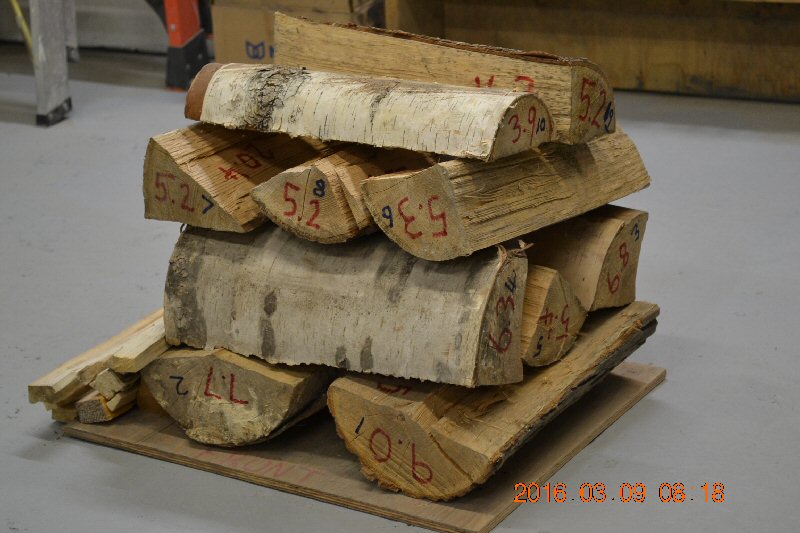

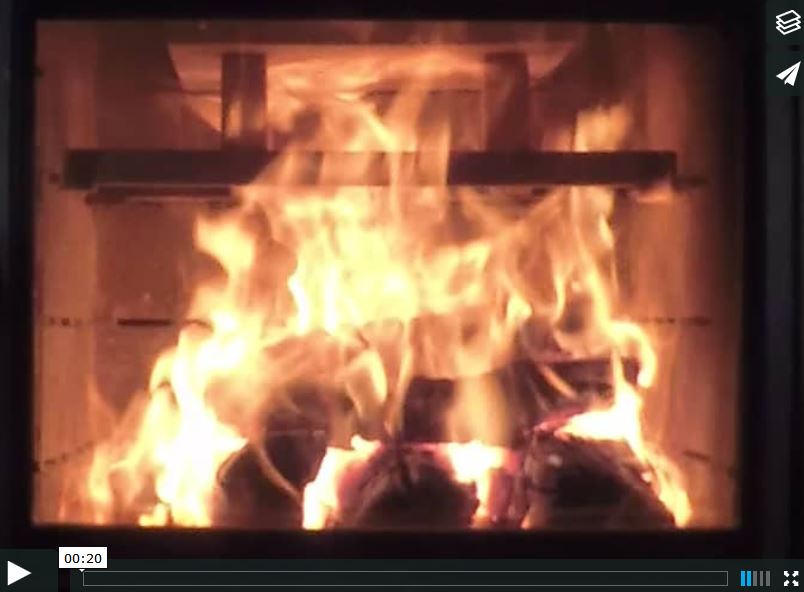

Details of fuel pile for side ignition. See video, below.
