2016 MHA Research Heater Tests

Test MHA-1624
March 8, 2016

Birch/oak  mix
Log cabin stacking, side ignition,
63.0 lbs including 3.0 lbs kindling
17.4% moisture.

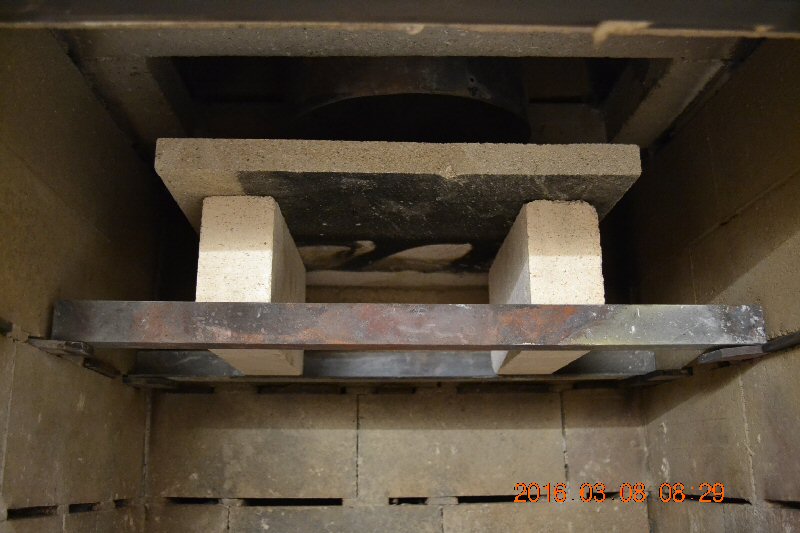

Baffle added, see photos.
Air slots in firebox unblocked, except for top course (25% restriction)
See MHA-1623 for other modifications.

Baffle added.
Space between top of baffle and chimney extension pipe is 3".

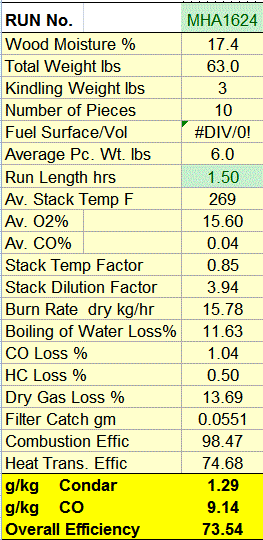

Condar Spreadsheet

Testo Raw Data

Lab Notes

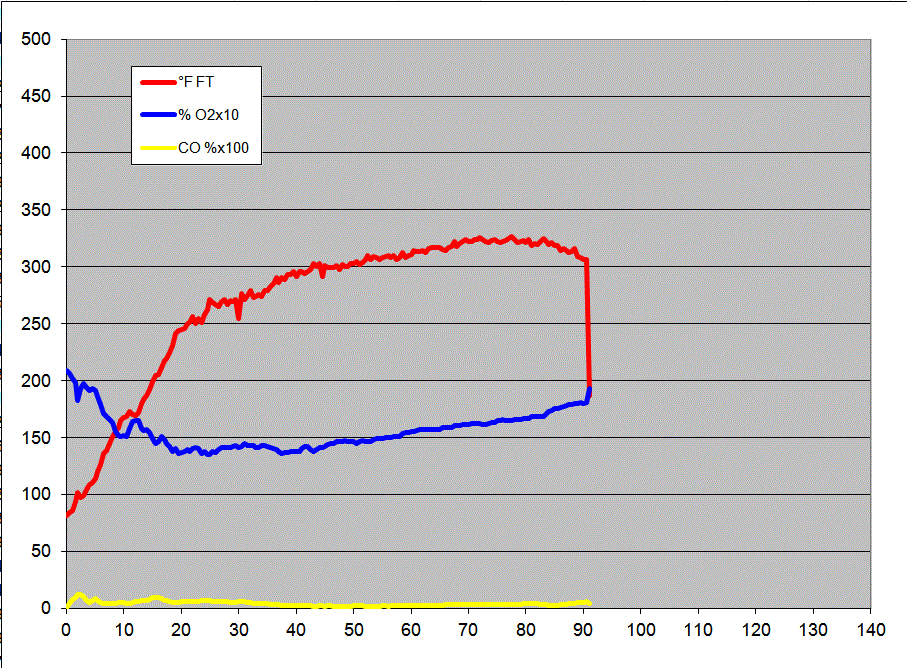

Gas graph.

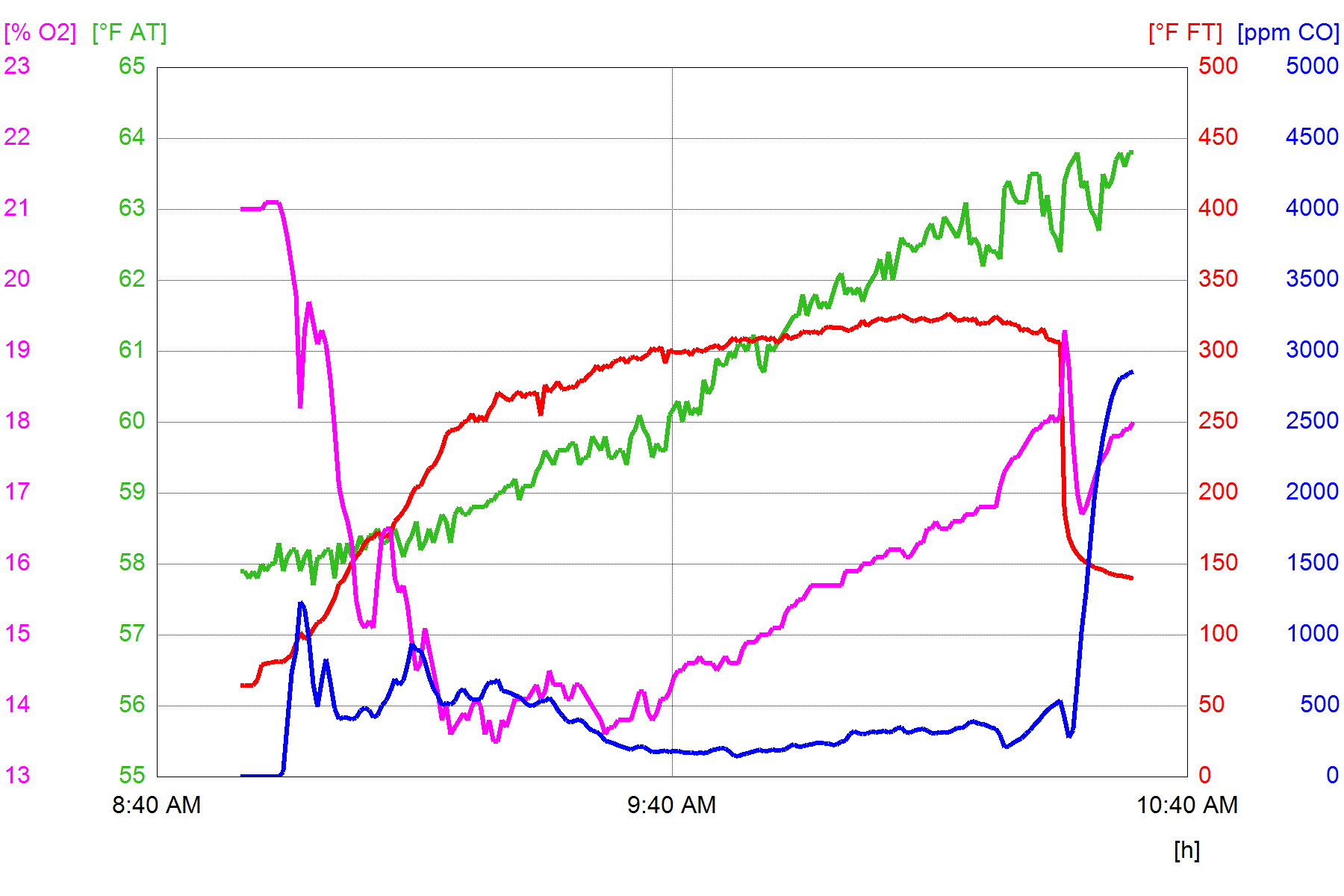

Testo gas graph.

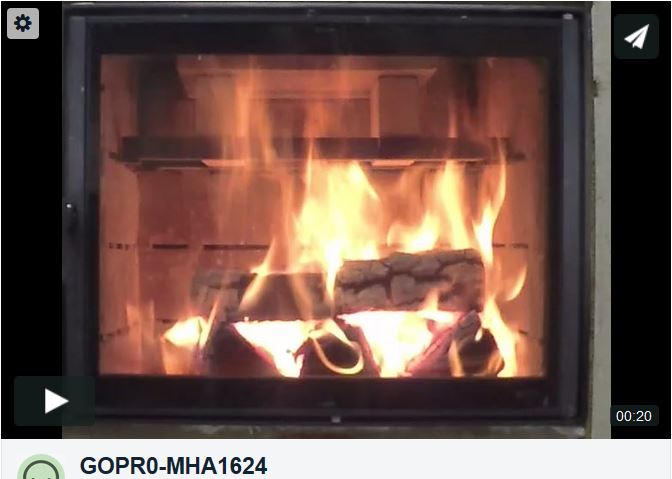

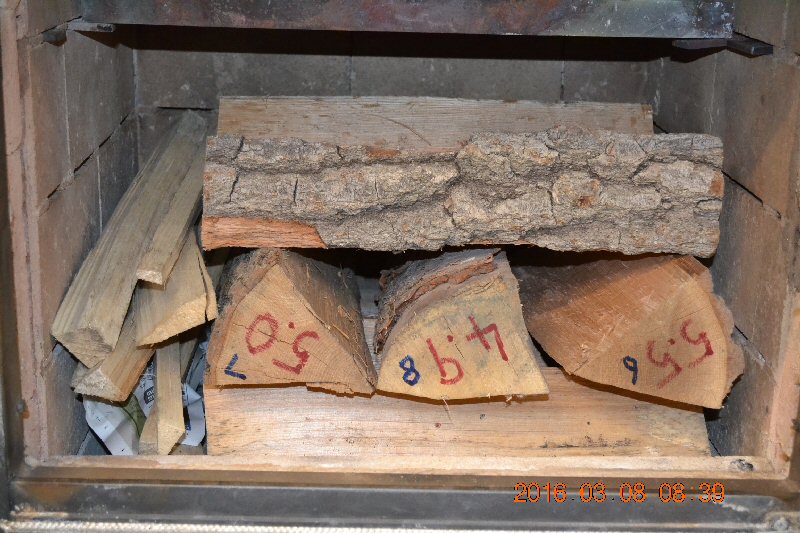

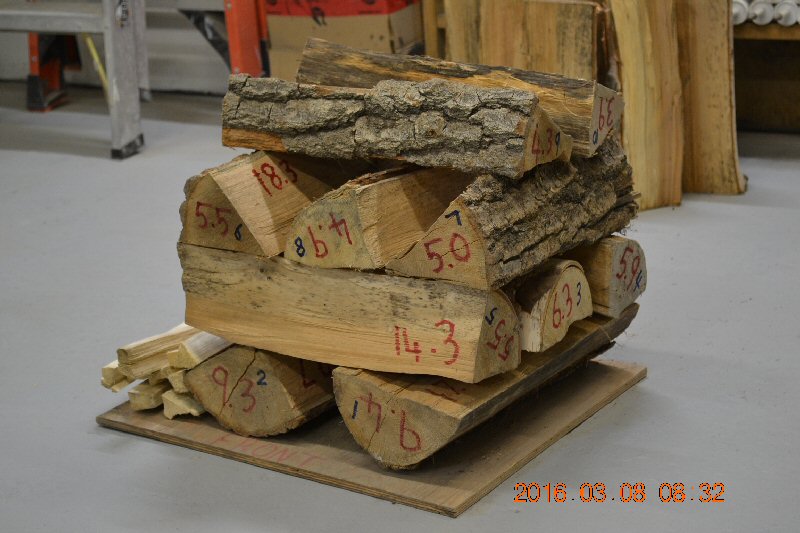

Details of fuel pile for side ignition. See video, below.

This page was updated on  March 14, 2016
This page was created on March 11, 2016
