Test MHA-1908
February 7, 2019

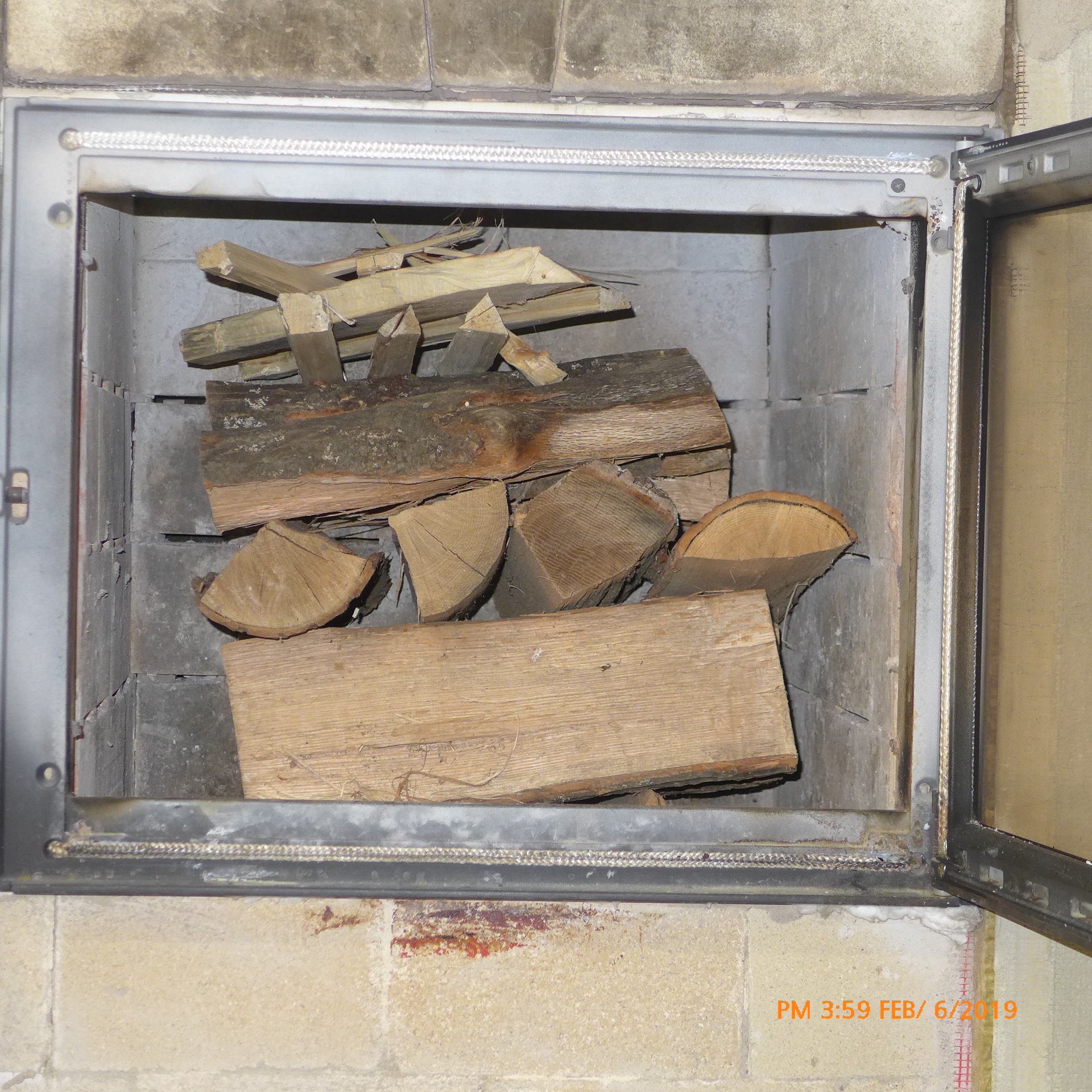

Random loading, red oak, log cabin stacking, top ignition. Cold firebox.
Pieces loaded in order of increasing weight. 2344 stacking.
69.3 lbs including 2.0 lbs kindling
Estimated moisture 15%.
Run #2 of a cold firebox test series. Heater fired every 2nd day.
This is the second test that was fully automated - once the Condar and Testo were set up
and turned on, there was no intervention until the Condar was turned off at 90 minutes.
The Testo data was started before the test and run for 30 minutes past the 90 minute test.
Pisla HTT 602 door, 22" wide
Austrian eco firebox, see http://www.heatkit.com/research/lopez-2014-03-01.html

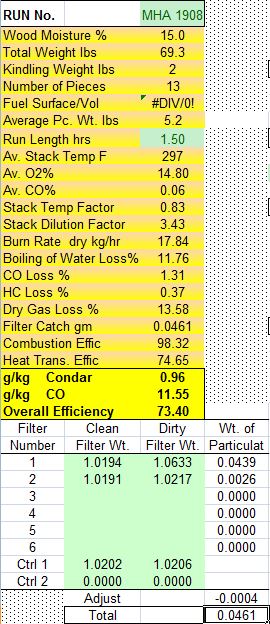

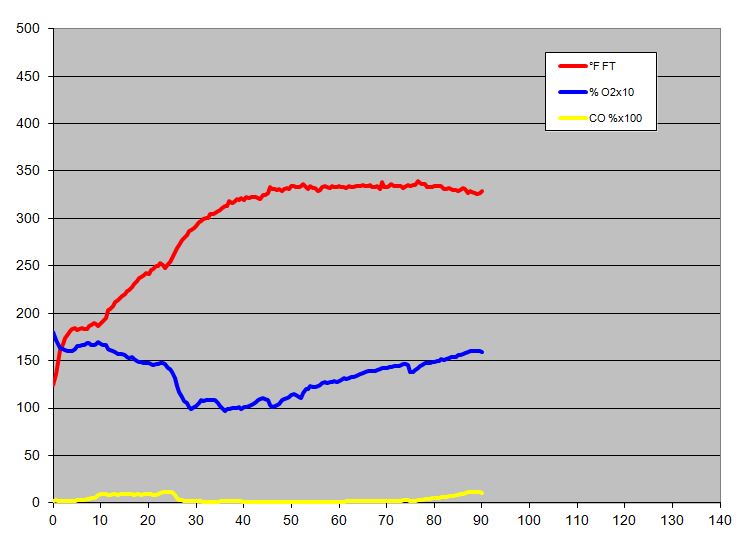

Condar spreadsheet results at 90 minutes.

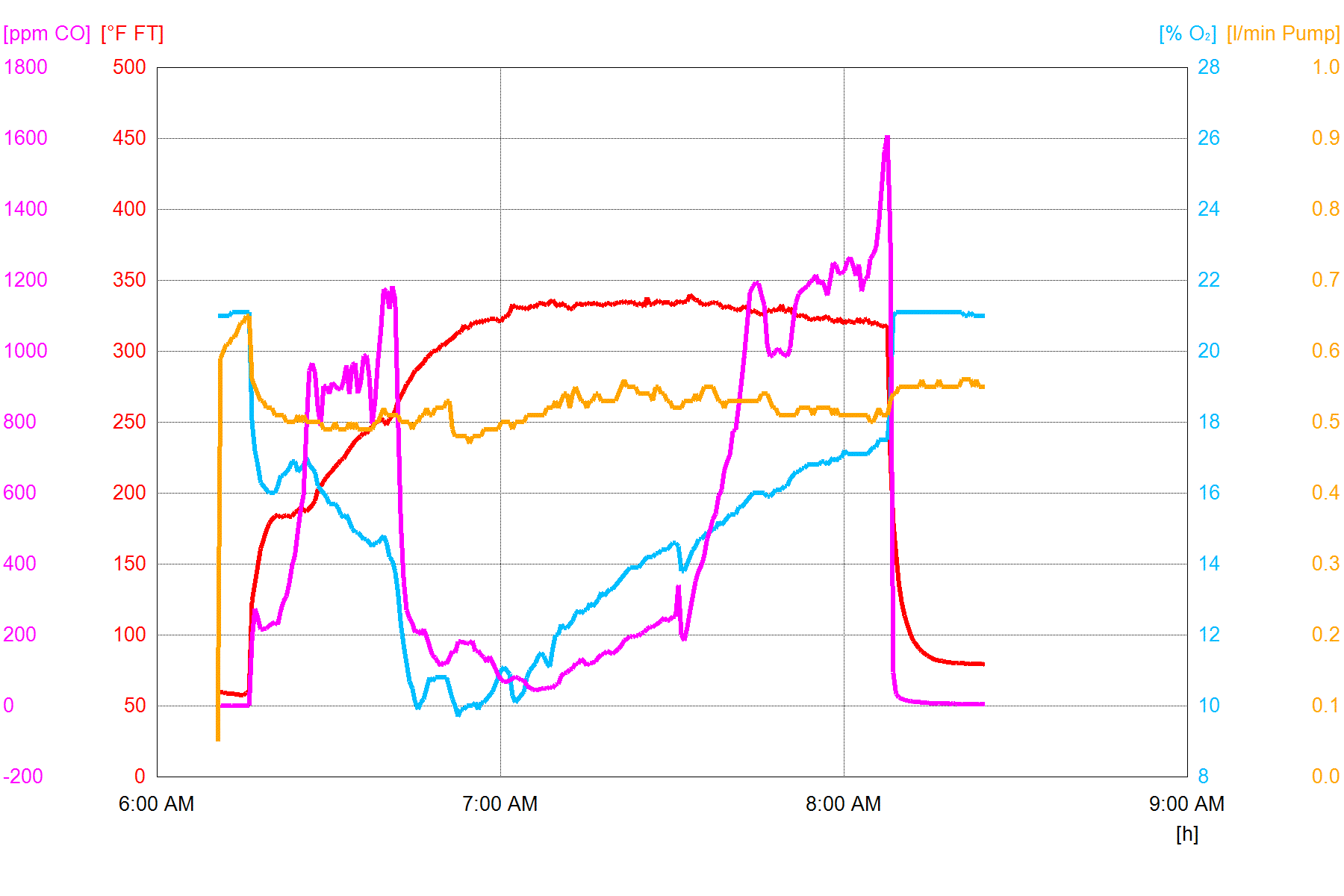

Testo
gas graph. Blue line is stack temperature and purple line is oxygen.

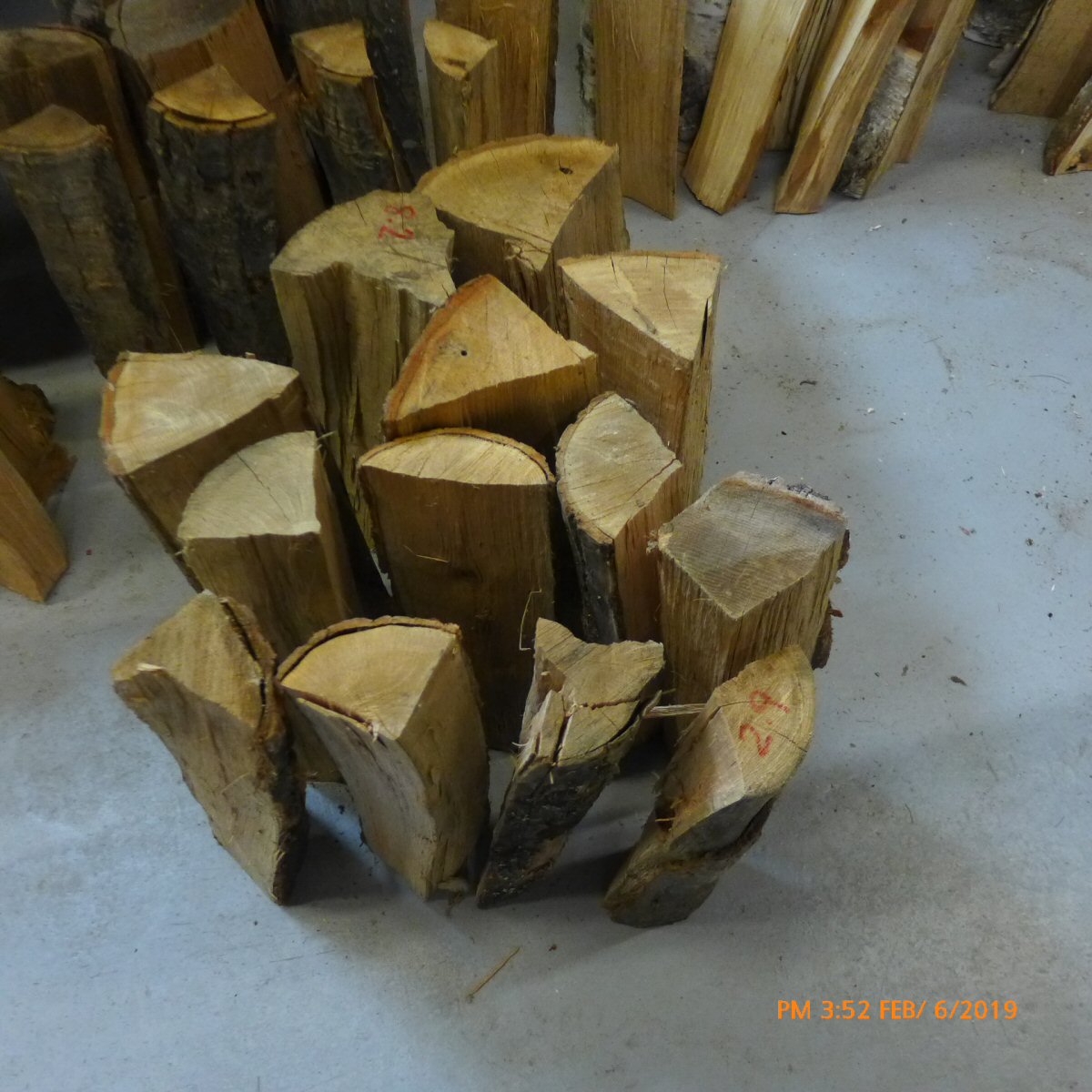

Random loading, red oak, log cabin stacking, top ignition. Cold firebox.
Pieces loaded in order of increasing weight. 2344 stacking.
63.6 lbs including 2.0 lbs kindling
Burn sequence. Time lapse taken at 2 minute intervals.
The white square marks the normal 90 minute mark for end of test.
With
the Austrian eco-labelled air system, coals are not normally burned up,
and the air is turned off at 90 minutes. For this load in actual use,
air would be turned down at 90 minutes, and turned off around 120
minutes.
