2018 MHA Research Heater Tests

Test MHA-1821
February 14, 2018

Heat exchanger reconfigured from downdrafting parallel channels
to a serial channel.

Experimental stacking according to ASTM E2780 "high burn rate"
In ASTM testing, the load is intended to be ignited from a hot coal bed.
In this modification, pieces on the top row are split in half, and ignited with kindling placed on top

Red oak, log cabin stacking, 234 stacking. Top ignition
60.5 lbs including 3.0 lbs kindling
21.5% moisture. 234 stacking.
Warm firebox, 230F
Significant drop in PM with warmer firebox and reduced kindling weight.

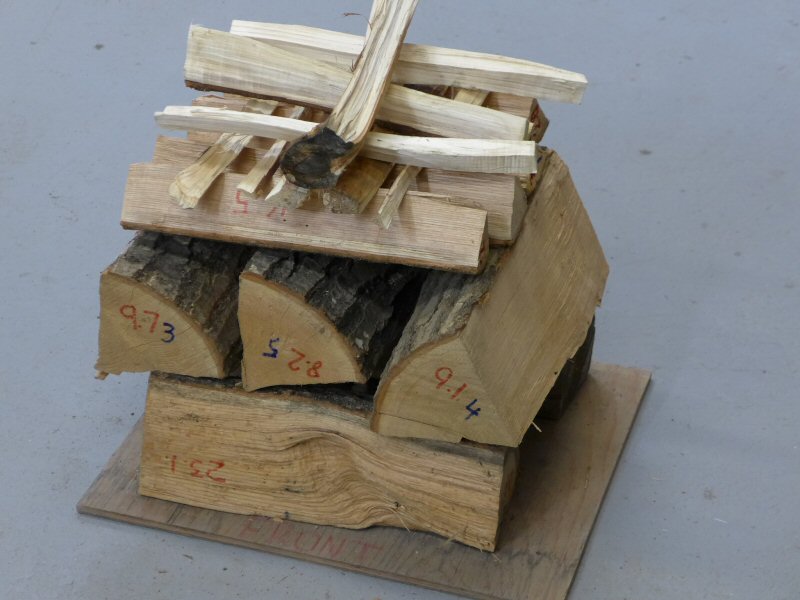

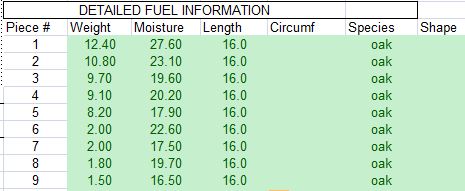

Pieces are numbered from the bottom up, front-to-back and left-to-right

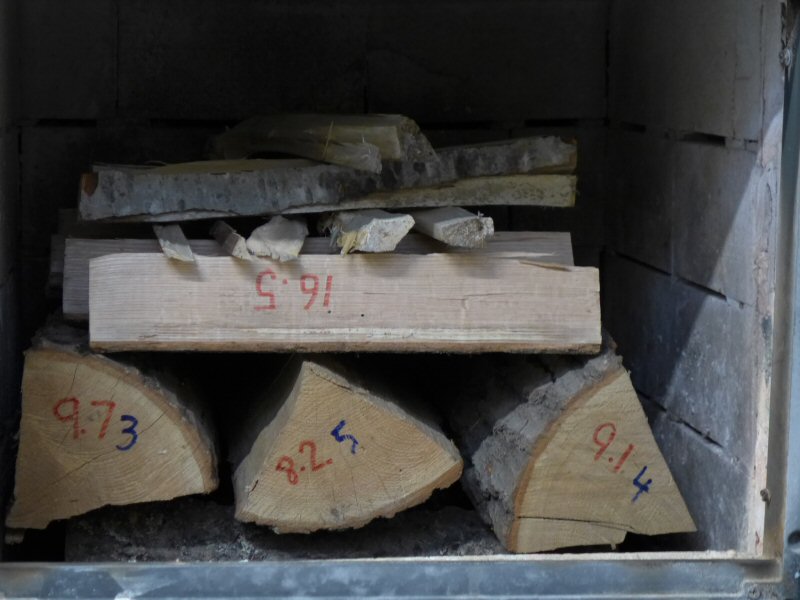

Fuel load including 3 lbs kindling on top. Same as last run MHA-1820, except warmer firebox and reduced kindling.

Pisla HTT 602 door, 22" wide
Austrian eco firebox, see http://www.heatkit.com/research/lopez-2014-03-01.html

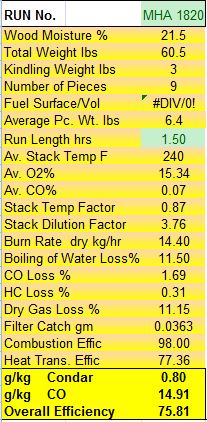

Condar spreadsheet summary panel, calculated at 90 minutes.

Testo Raw Data

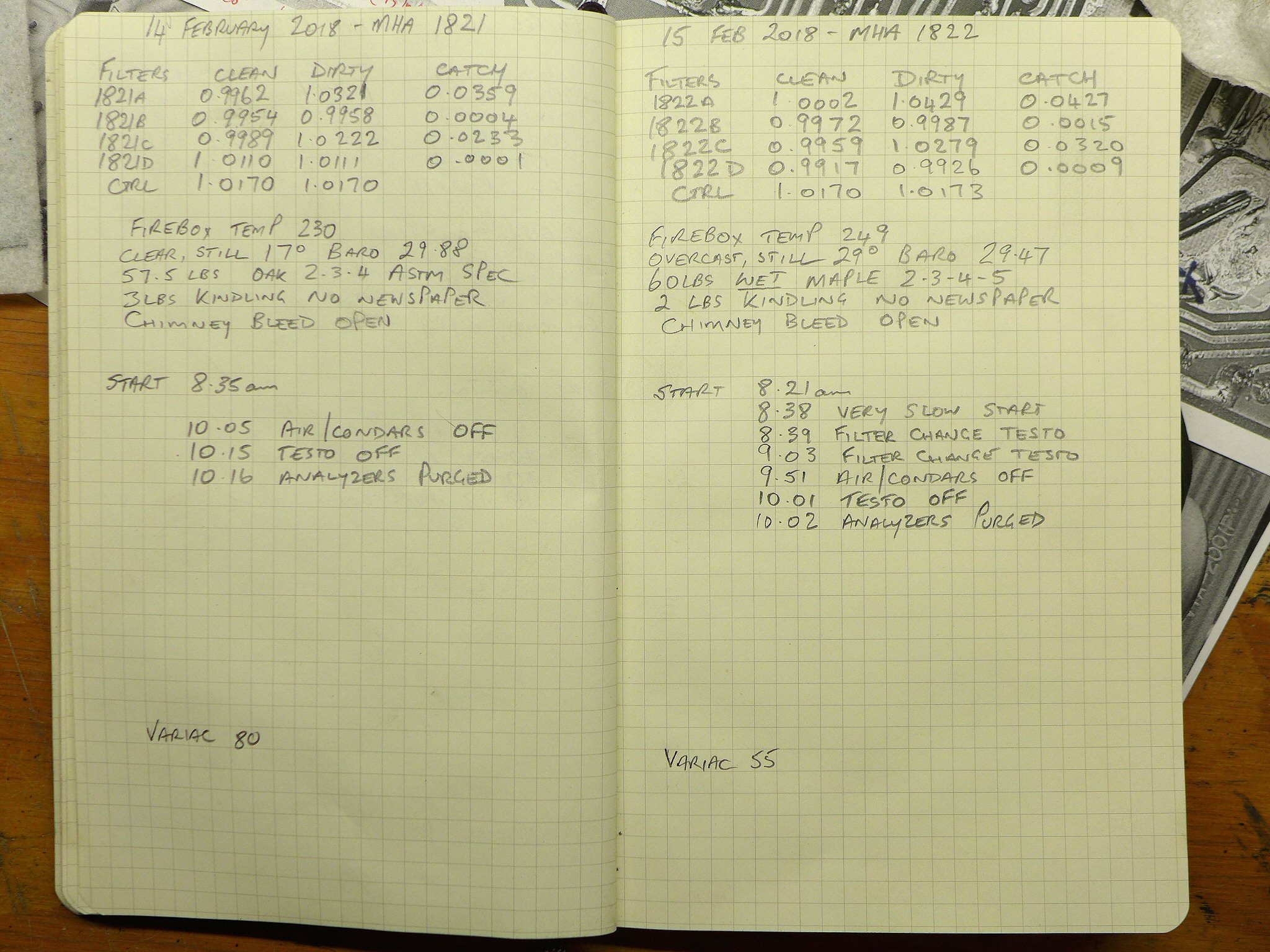

Lab Notes

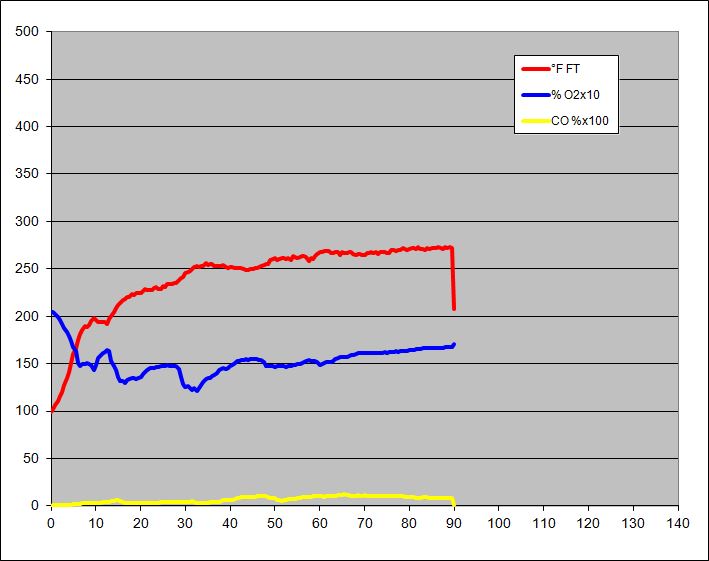

Flue gas graph to 90 minutes.
Note: CO curve is from a Horiba analyzer, and not from the Testo.

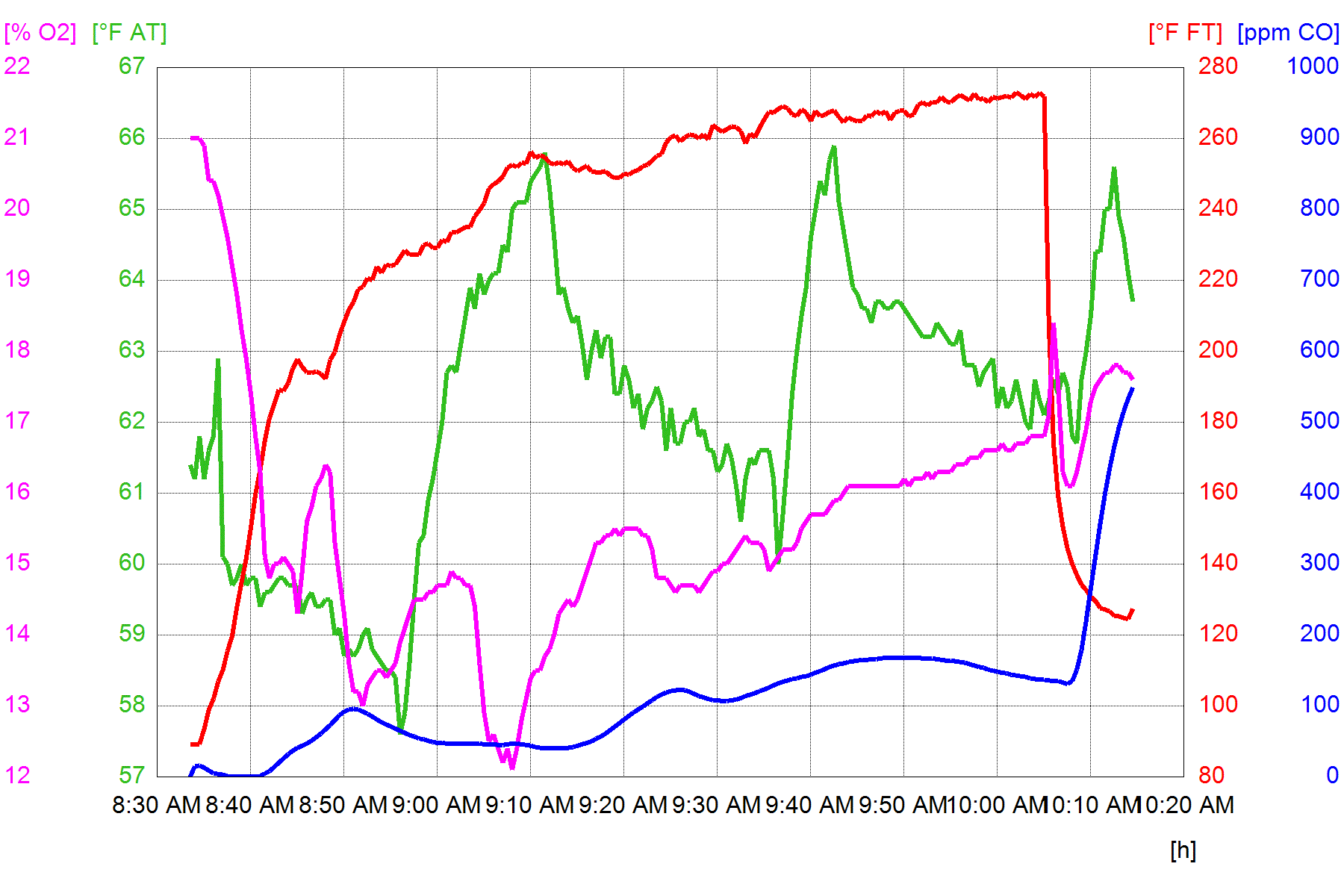

Testo gas graph.
Note: CO curve is inaccurate due to failing sensor. Backup CO data has been used for calculations.
Red line is stack temperature and green line is room temperature.

Red oak, same fuel batch as last series of 2017

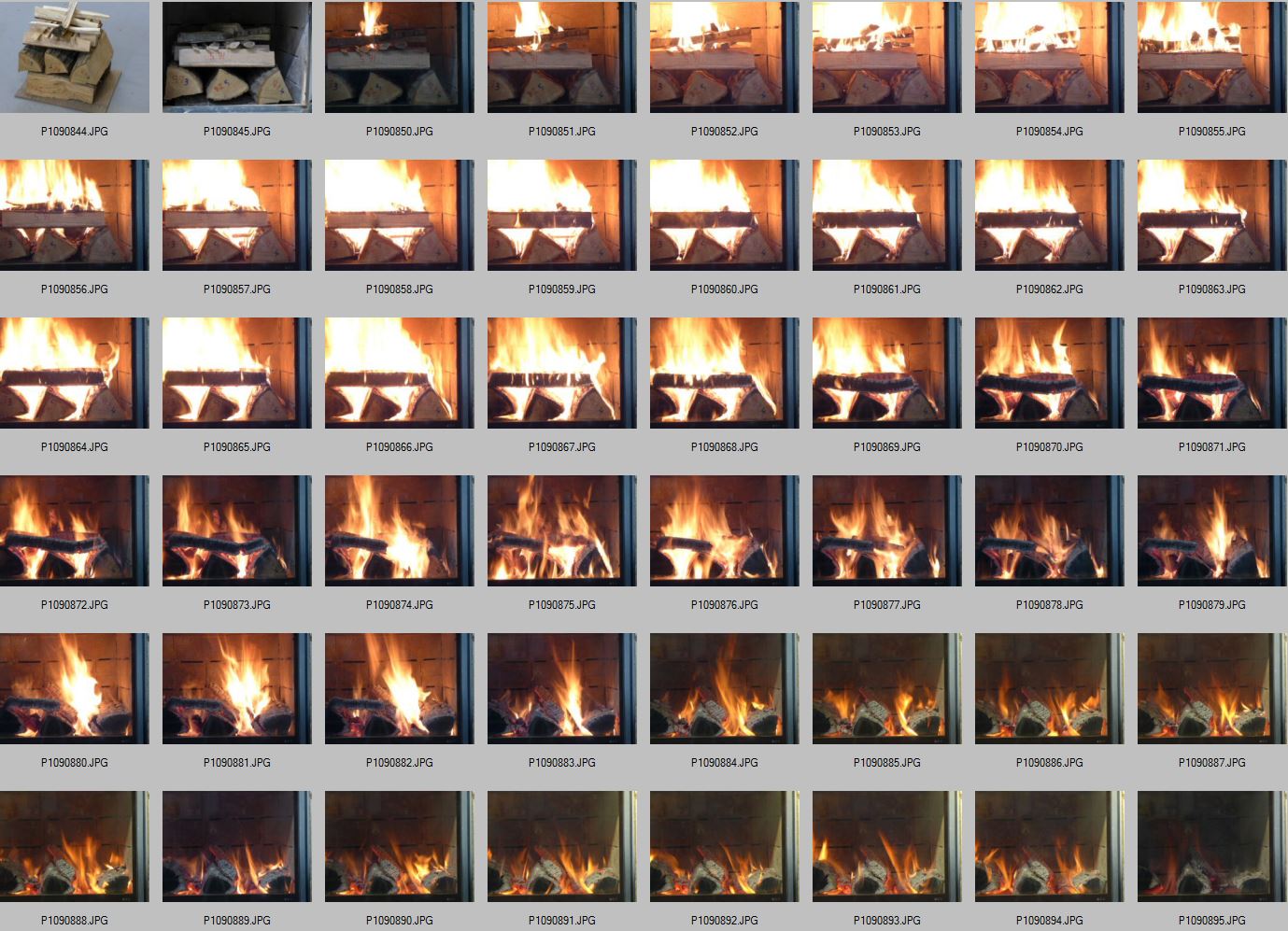

Burn sequence.
Time lapse taken at 2 minute intervals, fixed focus and fixed exposure.
Notice the burn progression. Once the initial surface flaming on the large lower pieces is over and a char layer has formed, the fire slows down. The second row is still intact after the 90 minute standard test length.
