2016 MHA Research Heater Tests

Test MHA-1618
February 29, 2016

Hardwood mix

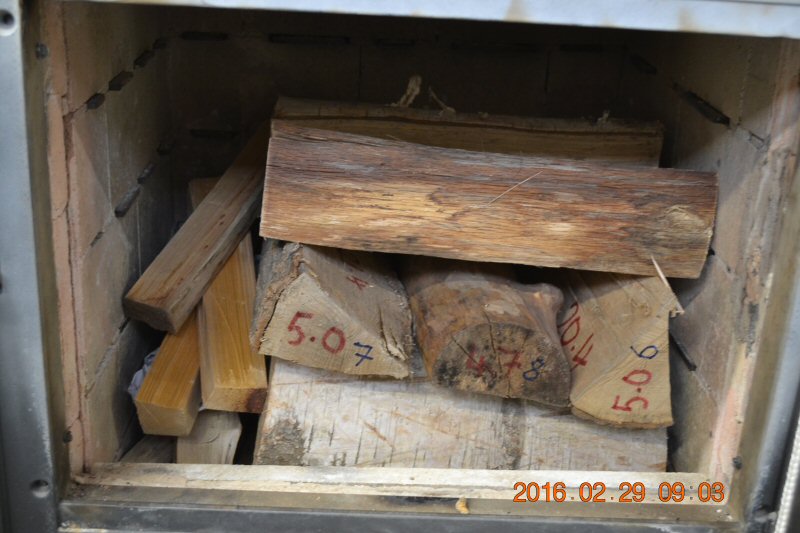

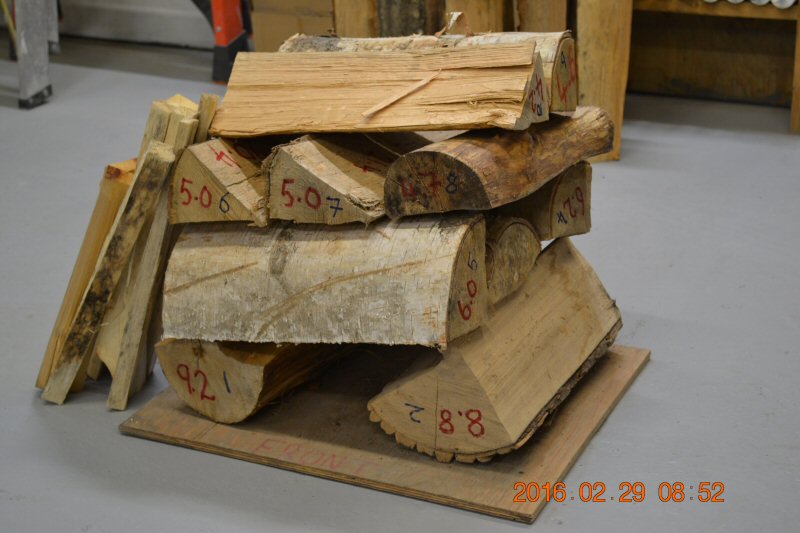

Log cabin stacking, side ignition, cold firebox
63.0 lbs including 3.0 lbs kindling
17.6% moisture.

Pisla HTT 602 door, 22" wide
Austrian eco firebox, see
Firebox top modified to raise exit. See

Air slots in firebox reduced approx 75%
Firebox exit dropped with 12" of ss liner, see photo in MHA-1616

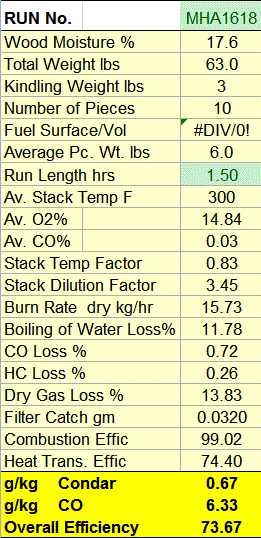

Condar Spreadsheet

Testo Raw Data

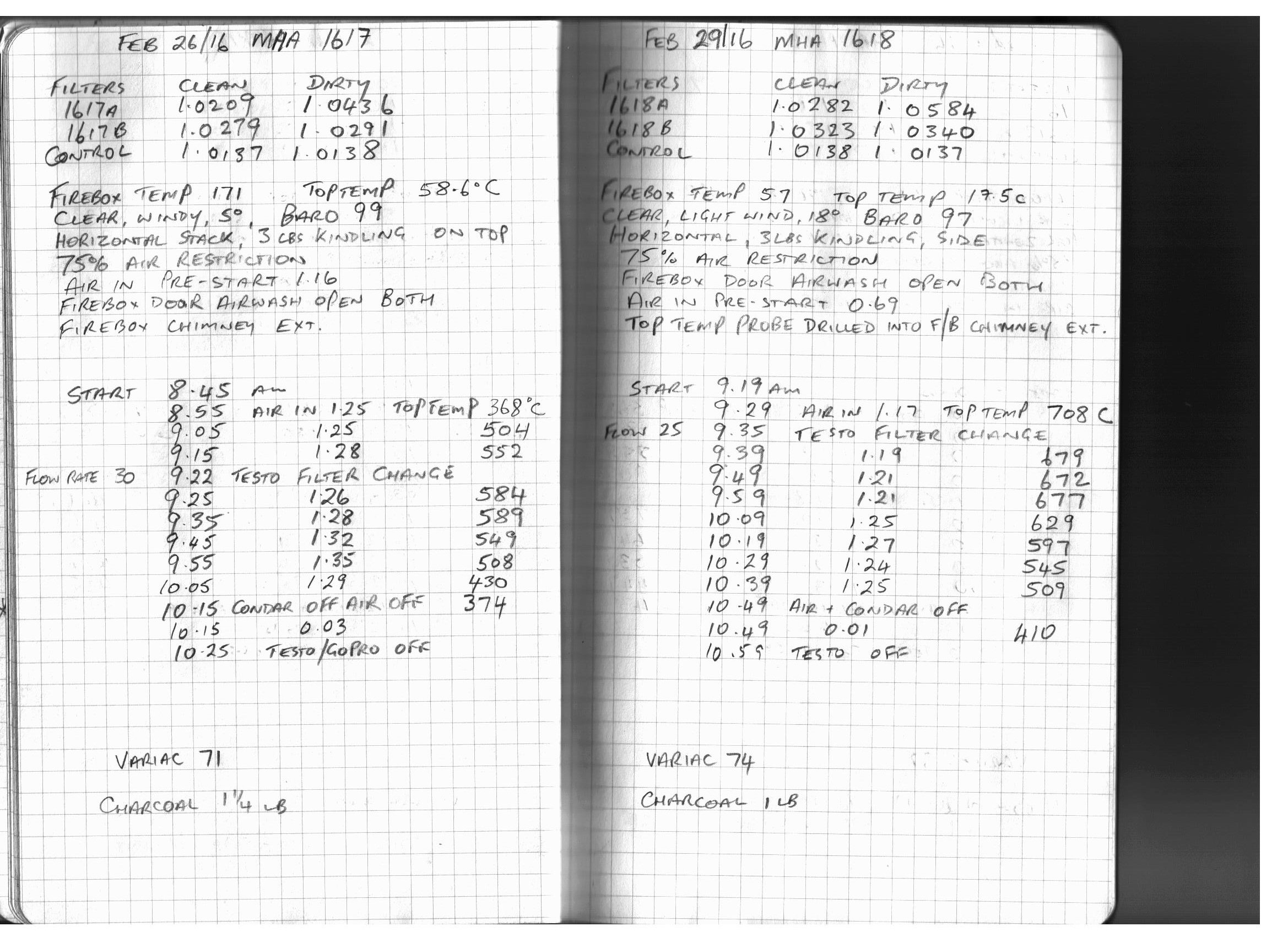

Lab Notes

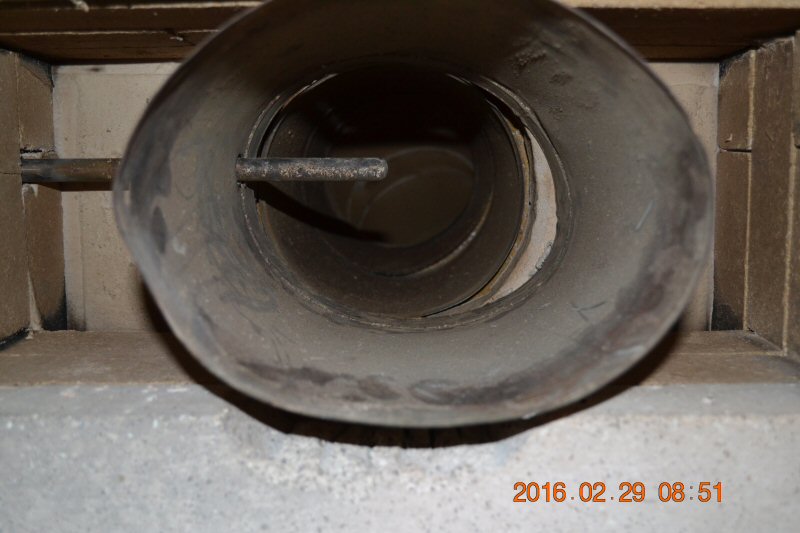

New location of throat thermocouple.

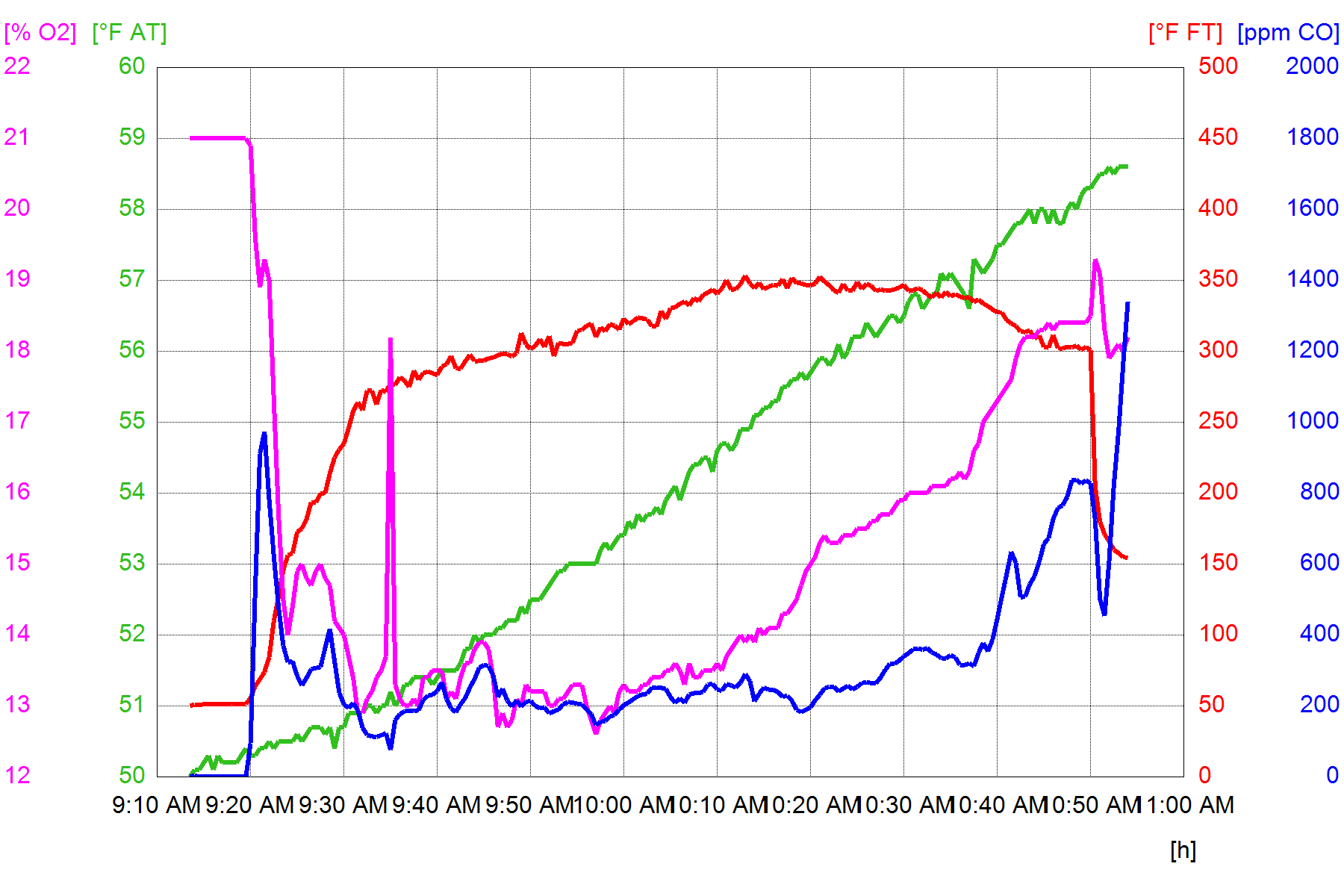

Gas graph.

Testo gas graph.
