Test
HK-M20
March 2, 2014
White birch cordwood
46.0 lbs including 4.0 lbs kindling
15.2% moisure
Stack temperature corrected for height.
Pisla HTT 602 door, 22" wide
Austrian eco firebox, see http://www.heatkit.com/research/lopez-2014-03-01.html
Custom air frame, setup "D"
Rear grate closed

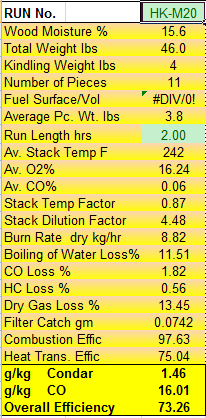

Condar Spreadsheet Results
Condar Spreadsheet
(includes detailed fueling data)

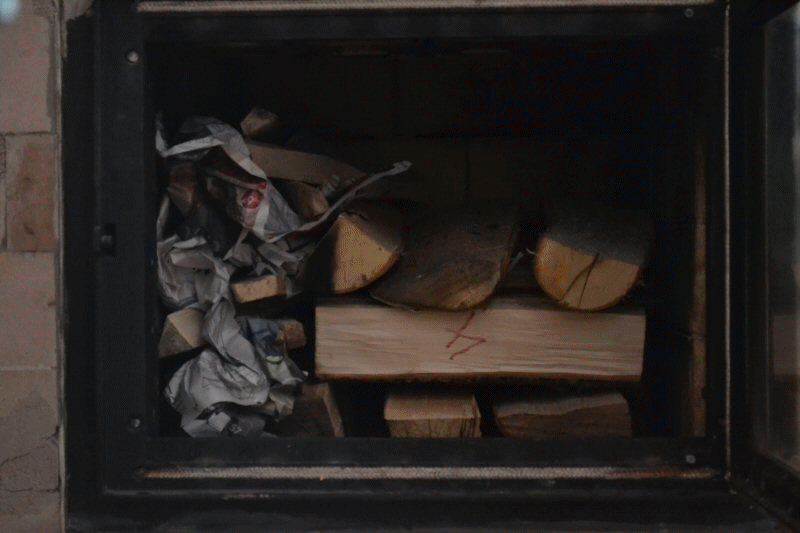

Animation, 5 minute intervals.

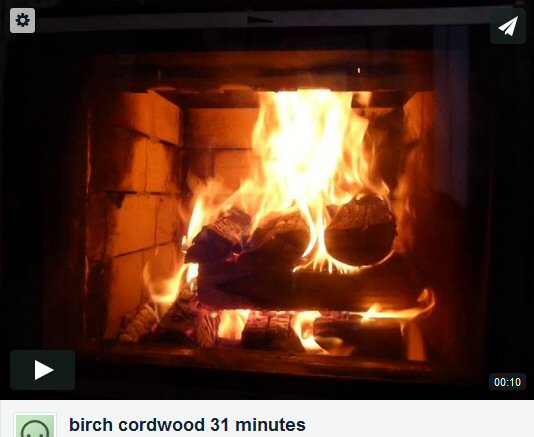

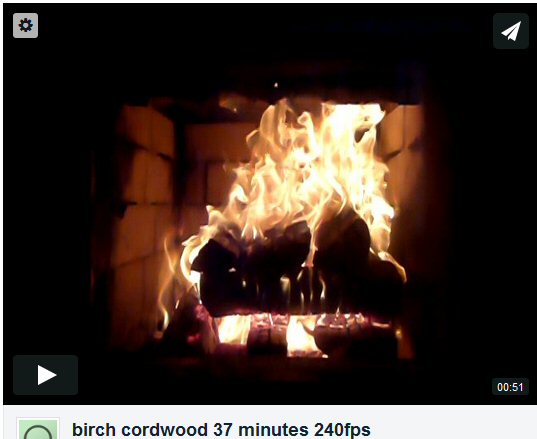

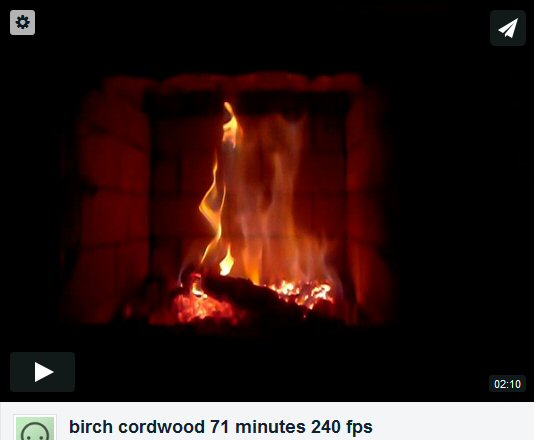

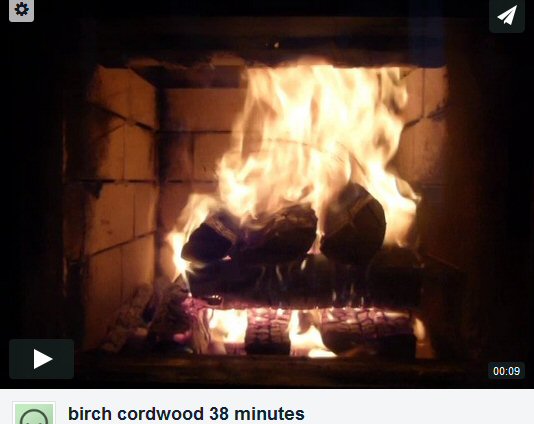

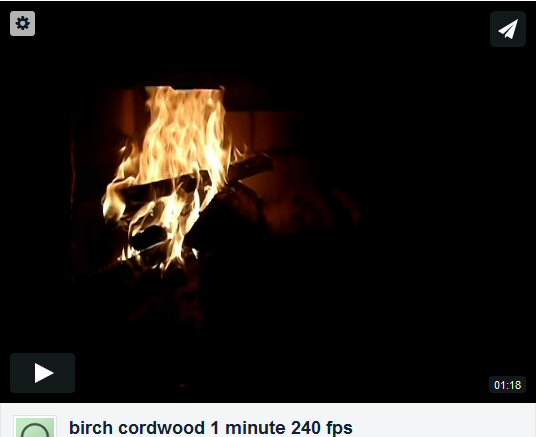

See burn videos, below.

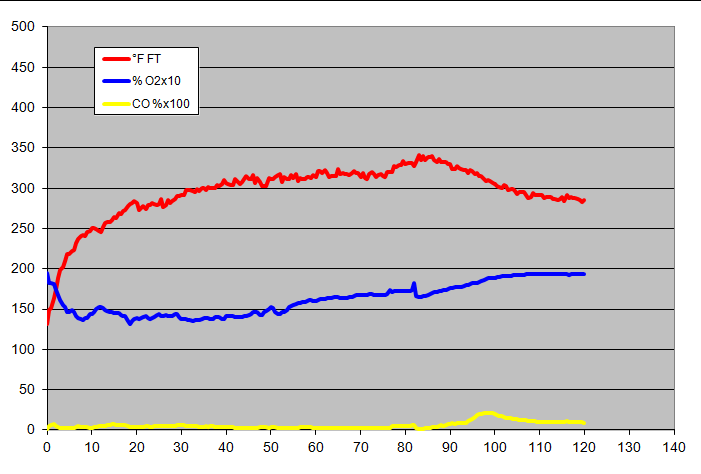

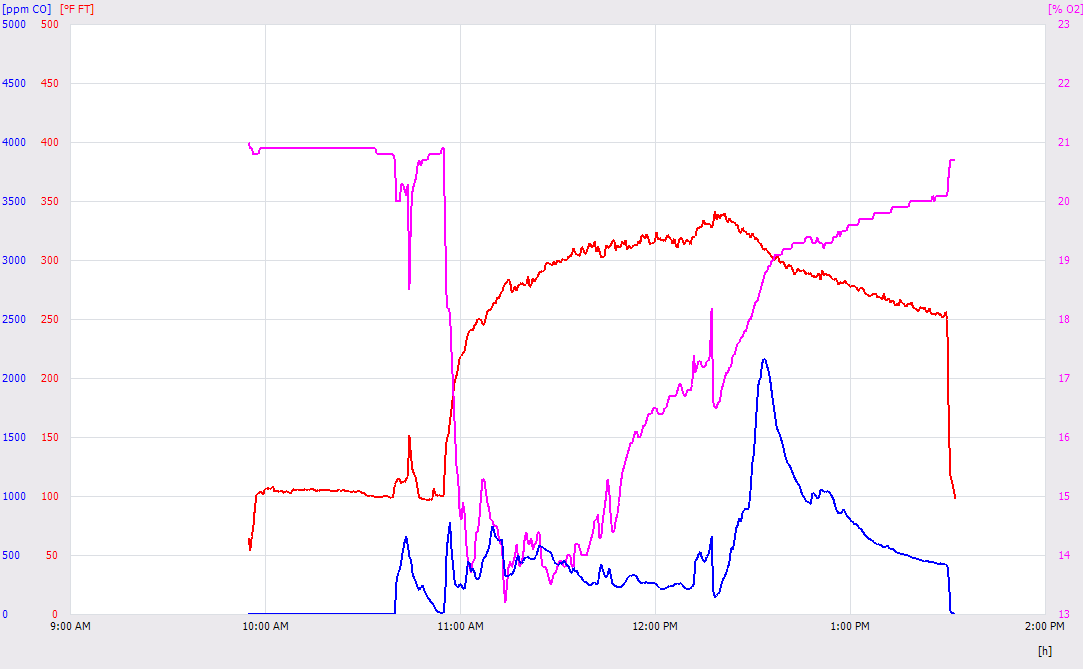

Testo gas graph, entire cyle
First stack temperature spike was a false start where the kindling caught very slowly and was removed.

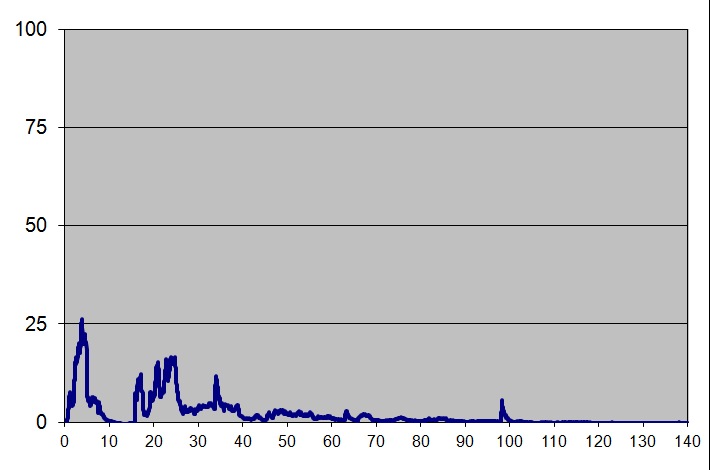

Opacity graph.
The first spike lasting 10 minutes was a false start where the kindling was catching very slowly and was removed.

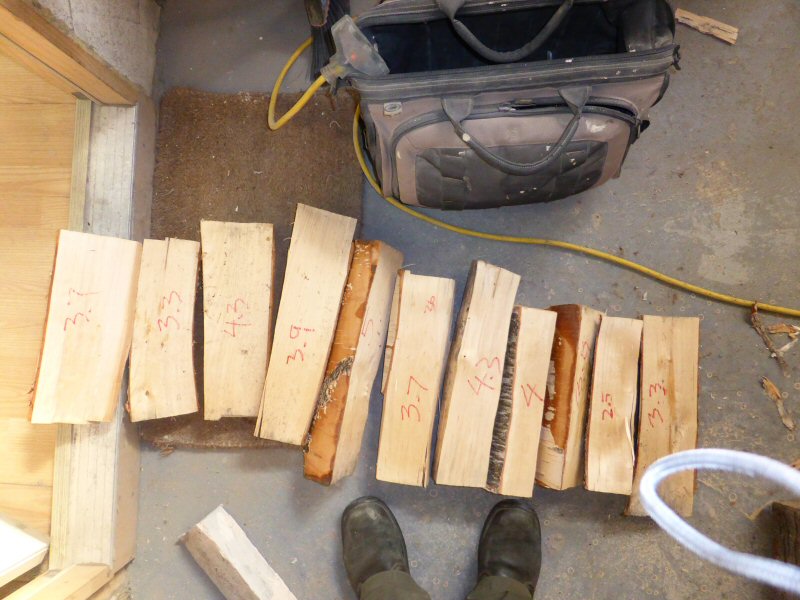

Fuel load.

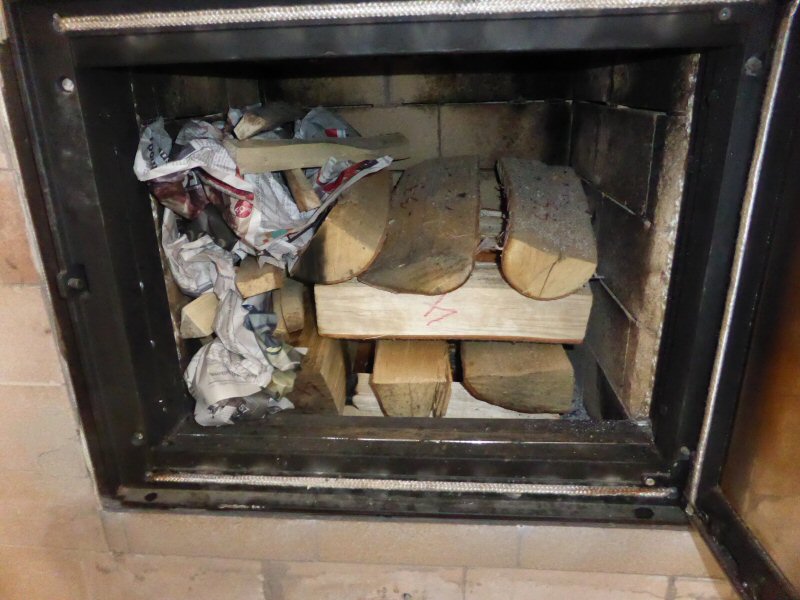

Stacked in firebox

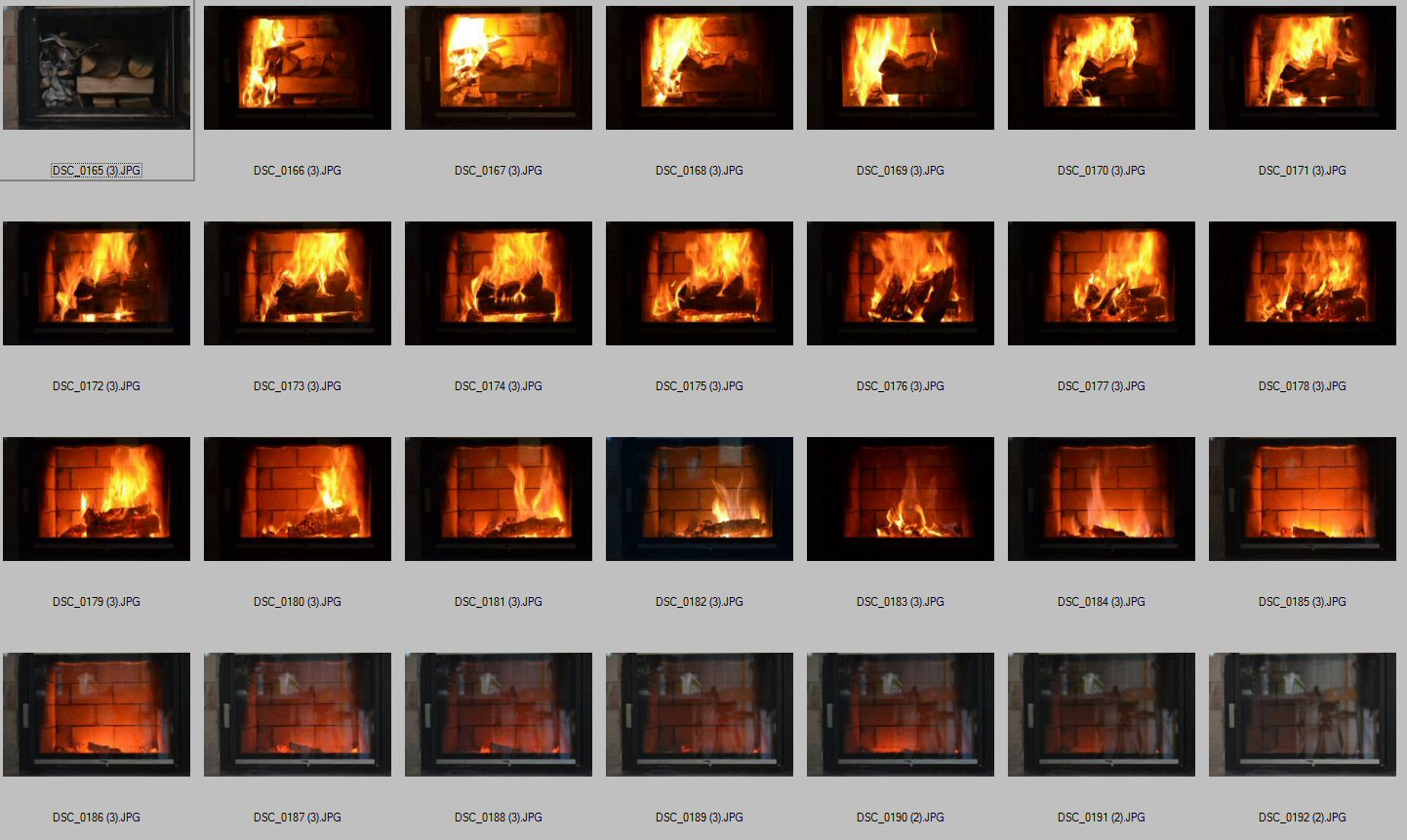

Burn sequence
