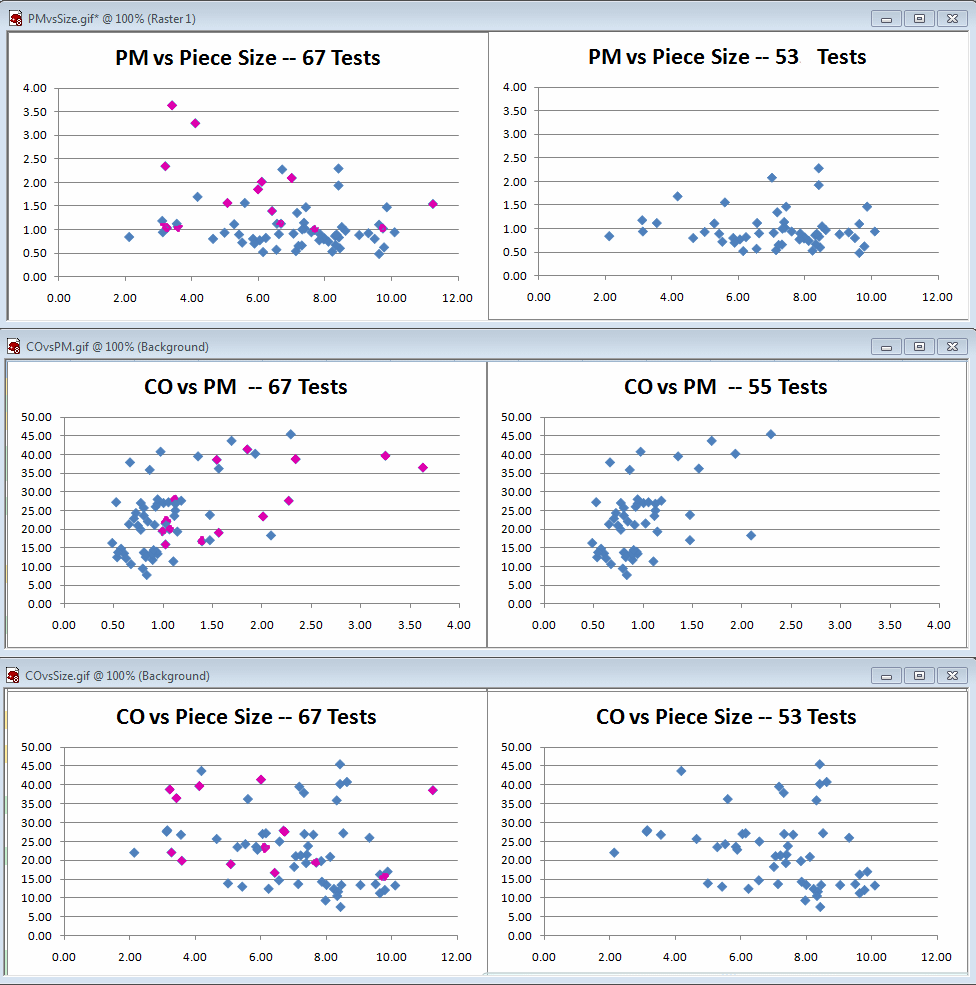

Graphs of data scatter and various correlations, from 65 cordwood and 2 crib tests in 2008-9
55 tests were "normal" and 12 tests were "not normal", meaning: cold firebox and cold fuel, or bottom ignition, or cribs.
The 12 "not normal" tests are shown in purple.
What is CO and PM ? (see page 13)
Lowest CO - - HK-K11 January 18/09
0.83 g/kg PM
7.65 g/kg CO
Warm heater
White Birch, 20% moisture
7 pieces, 4.75 lbs kindling, 63.5 lbs total
Very staged burn, with evenly shaped half logs.
Highest CO - - HK-K05 January 12/09
2.29 g/kg PM
45.5 g.kg CO
Warm heater
White Birch, 20% moisture
7 pieces, 4.5 lbs kindling, 63.4 lbs total
Error - grate air control was closed for the whole run.
Lowest PM - - HK-K03 January 10/09
0.48 g/kg PM
16.24 g/kg CO
Warm heater
White Birch, 20% moisture
6 pieces, 4.5 lbs kindling, 62.3 lbs total
Error - grate air control was closed for the whole run.
Highest PM - - HK-J12 January 27/08
3.63 g/kg PM
36.50 g/kg CO
ASTM fuel crib supplied by OMNI, 10% moisture 47.2 lbs
12 pieces, 6 lbs kindling
Room temp fuel. Warm heater (24 hrs)
Kindling from the bottom (underneath pile)
Modified air - front slot reduced 50%
Low PM /// High CO - - HK-J02 January 5/08
0.66 g/kg PM
37.90 g/kg CO
Mixed oak and maple, large pieces, 16% moisture, 60.1 lbs
8 pieces. 2.5 lbs kindling.
High PM /// Low CO - - HK-K15 February 4/09
2.09 g/kg PM
18.28 g/kg CO
Warm heater
White Birch, 20% moisture
8 pieces, 4.5 lbs kindling, 60.6 lbs total
Smaller pieces, very fast start in kindling stack.
CO spike at beginning, PM spike.
