2009 Heater Tests at Shawville

Test HK-K03
January 10/09

Warm heater
White Birch, 20% moisture
6 pieces, 4.5 lbs kindling, 62.3 lbs total

Slightly lower PM than yesterday.
Very consistent CO and efficiency with yesterday
Error - grate air control was closed for the whole run.

Animation HK-K
Animation, 2 minute intervals.

gas analysis
Flue gas

TESTO Excel data file


Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

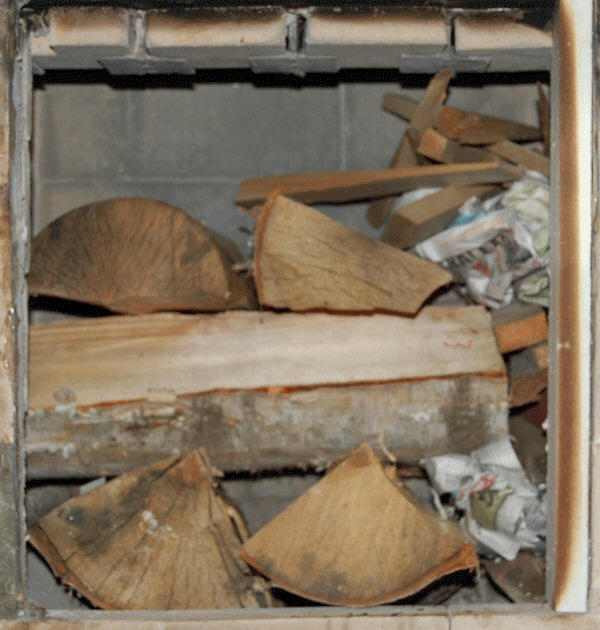

Fuel stack. Kindling is on the right side, layered with newspaper. Ignition from top of kindling

fuel pile

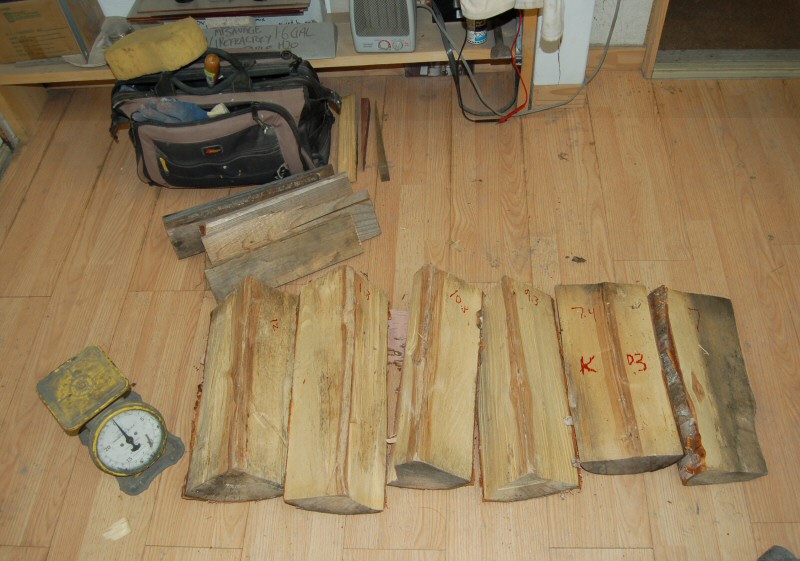

Fuel pieces, numbered 1 - 6 from left to right, heaviest to lightest piece.
