2019 MHA Research Heater Tests

Test MHA-1906
February 1, 2019

ASTM load minus 10%, small wood, dry wood, warm heater
Red oak, log cabin stacking, top ignition
56.6 lbs including 2.0 lbs kindling
15.3% moisture. 2445 stacking.
Repeat of run MHA-1905 except with Chimney bleed closed

Pisla HTT 602 door, 22" wide
Austrian eco firebox, see http://www.heatkit.com/research/lopez-2014-03-01.html

This was the fourth full run using the new automated Condar controller

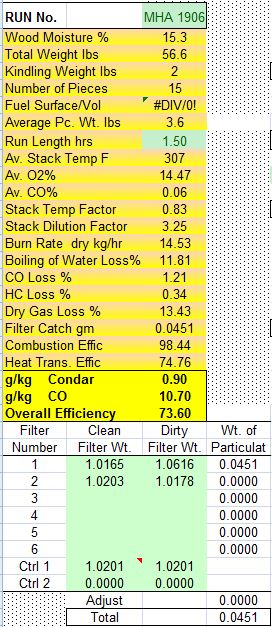

Condar spreadsheet results at 90 minutes.

Condar Spreadsheet

Testo Raw Data

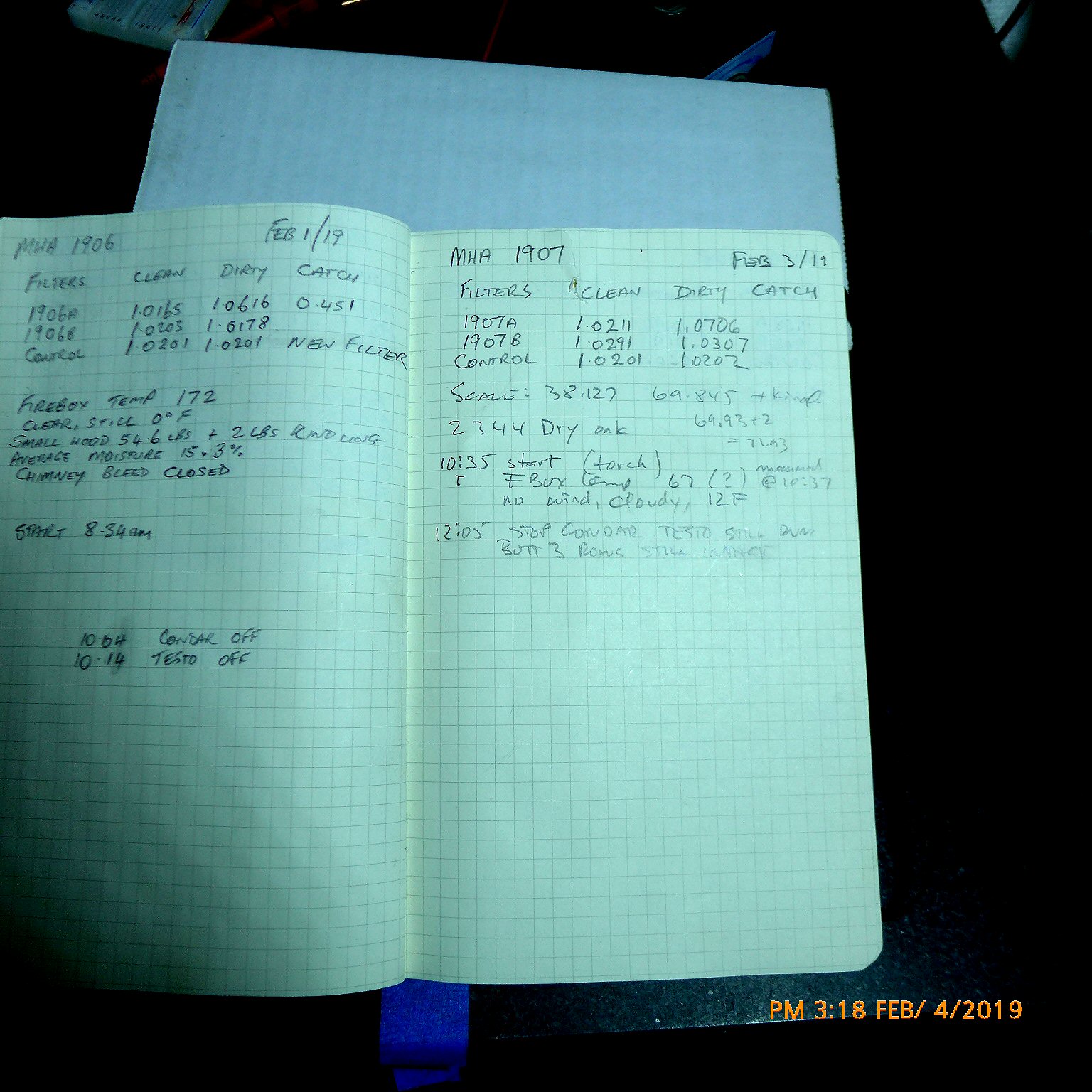

Lab Notes

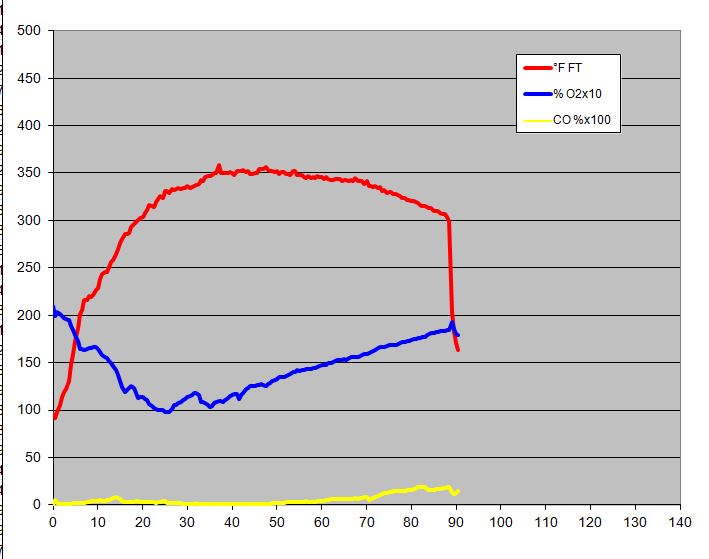

Flue gas graph to 90 minutes.

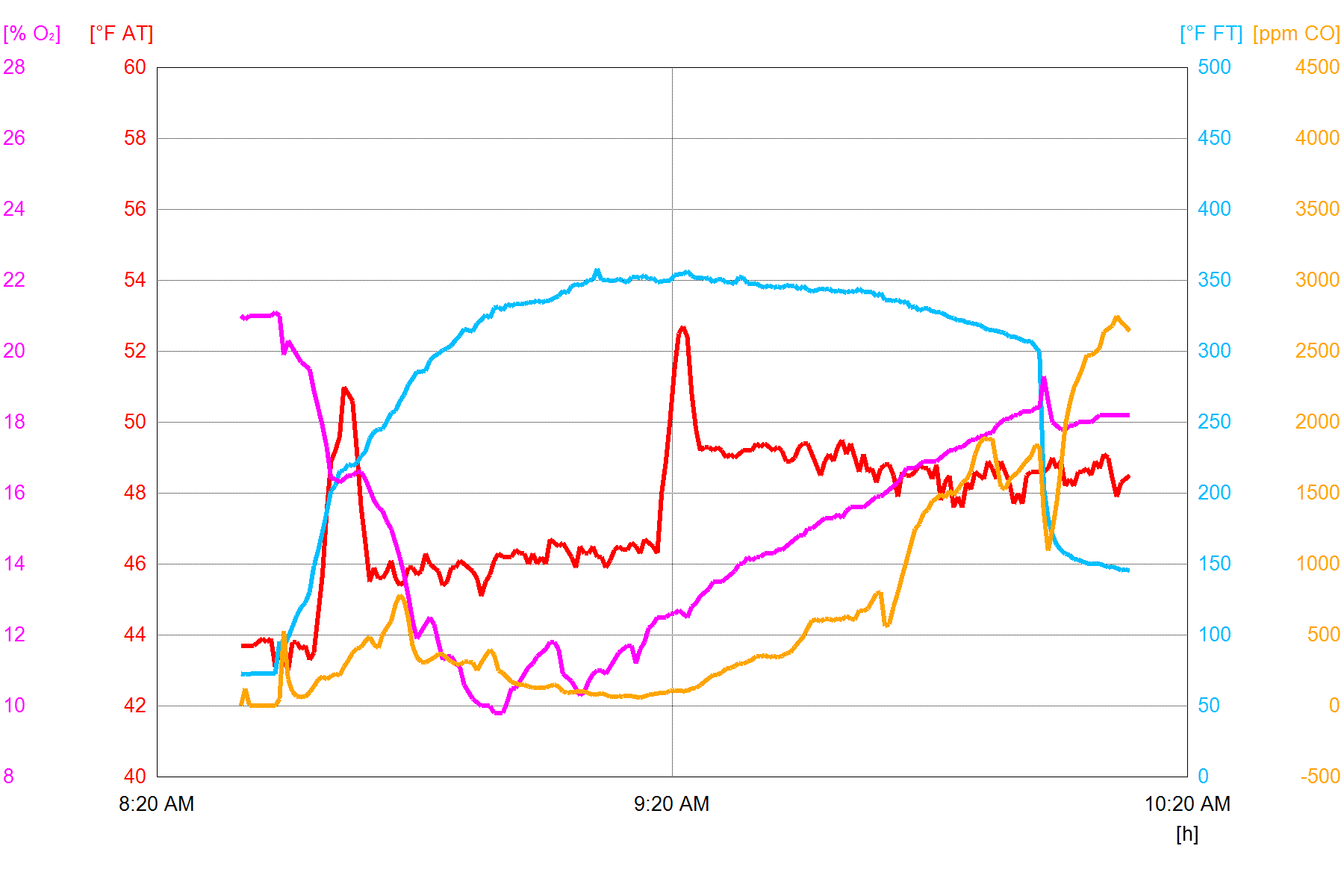

Testo gas graph.
Blue line is stack temperature and purple line is oxygen.

Fuel load --- ASTM load minus 10%, small wood, dry wood, warm heater
Red oak, log cabin stacking, top ignition
56.6 lbs including 2.0 lbs kindling
15.3% moisture. 2445 stacking.
Repeat of run MHA-1905 except with Chimney bleed closed

Burn sequence.
Time lapse taken at 2 minute intervals.
