Heater Calculator Development

Progress Report: December 2018

From: Damien Lehmann, AFPMA

December 16, 2018

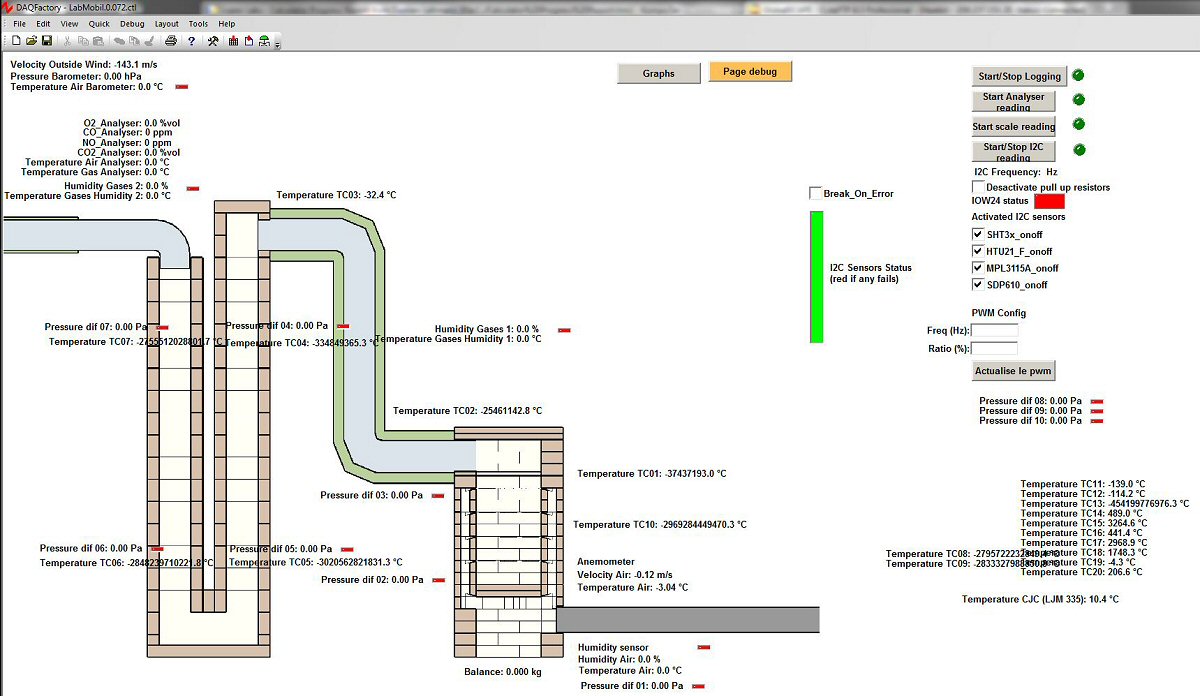

The graphic above is a screen capture from DAQFactory, which is the SCADA (Supervisory control and data acquisition) software
that we use at the AFPMA lab and the MHA lab to interface the data acquisition sensors in the test heaters.
Setting up the sensors and software has been a year+ long project.

You can also get an idea about the "heater calculator" project from the above diagram. Notice that as you go from the combustion air
inlet, through the firebox, the channels, and then into the chimney, you have a set of pressure and temperature sensors that make a
complete circuit from inlet to outlet.

This is the basic idea of the calculator, except in reverse.
In the calculator, you input your dimensions, chimney height, etc. The software then predicts what the pressures and temperatures
in the heater/chimney circuit will be, to verify that the sytem will function properly. For example, that the channels are not too long to
provide enough draft,  or that the stack temperature is not so high that it will lower efficiency.

In order to proof the calculator, we need to build some actual example heater setups and instrument them, to verify that the
software simulation (calculator) provides the correct results.

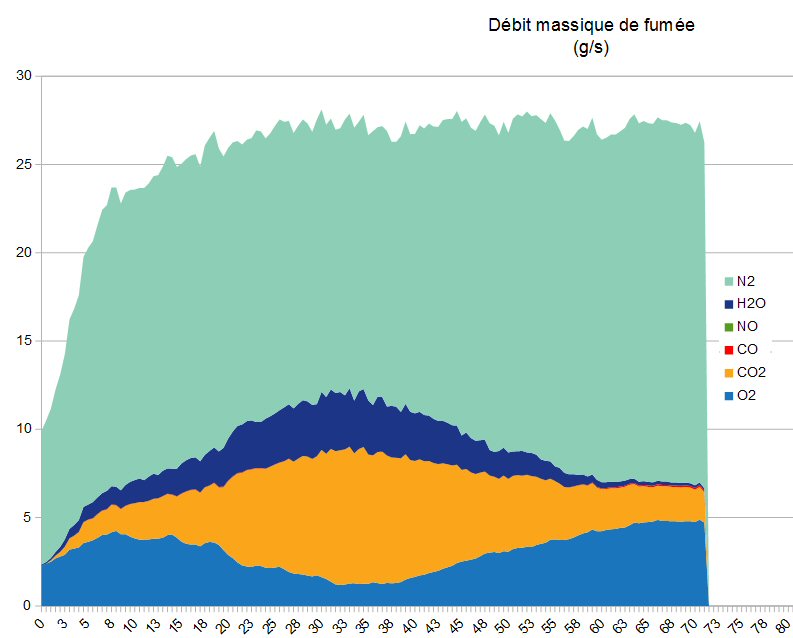

This is an early (Dec 2018) demonstration from the AFPMA lab showing the flue gas mass flow, and the contribution
to mass flow from the different flue gas components. Measuring the water mass flow in the flue has been one of the most
challenging aspects.

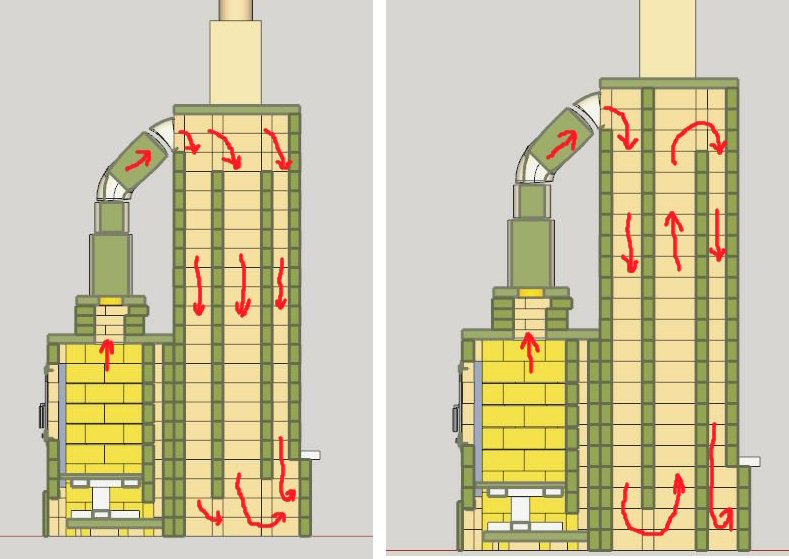

Here is an example from the MHA lab, showing the test heater running in two different heat exchanger configurations
to see how the pressures and temperatures compare in theory and in reality. This data will help to tune the
calculator to give a more accurate simulation of the heater over a wider range of conditions.

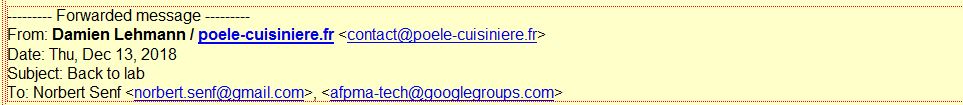

Here is Damien's recent report to the MHA and AFPMA tech commmittees:


Hi Norbert,

I'm happy to read that the Wood Stove Design Challenge was a success and that the Condar automation works fine.

We worked a lot on the Labmobil software, with Guillaume, please find the last version attached:

All sensors are working fine now, but that was not easy!

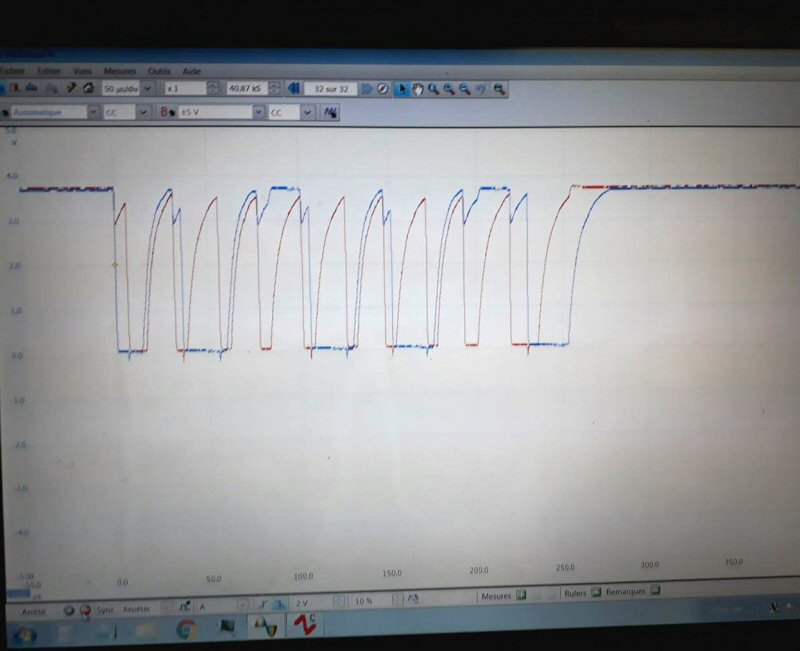

The signal was really bad, far from square:




The I2C communication protocol doesn't like long wires coupled with multiple sensors on the same bus, so we had to
add a bus extender called P82B715PN. Now the signal waveform is nearly square :-)

We had a lot of issues with  DaqFactory, but finally managed to get it all solved. DF has a lot of problem areas and
debugging is really long and difficult. We added I2C error management to avoid a value shifting, that was the biggest part of the work.

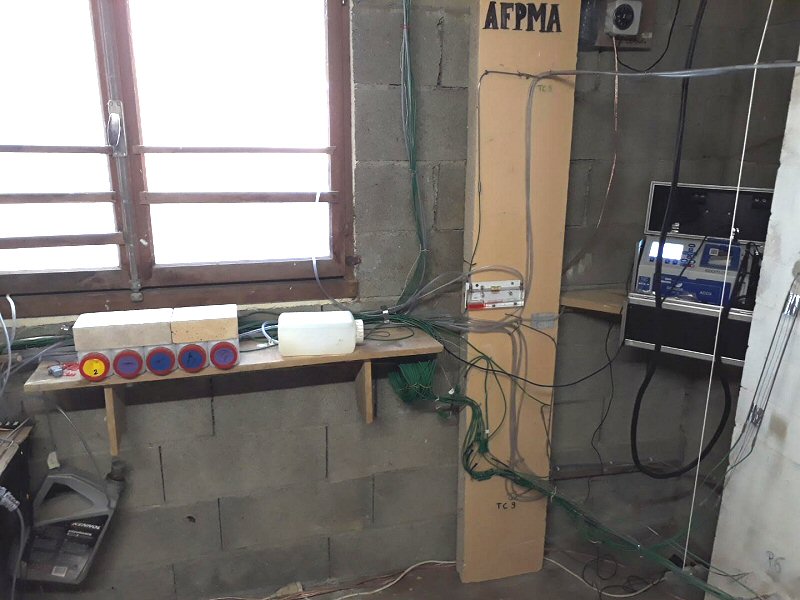

We added with Christophe buffers on the pressure sensor to stabilize the reading and reach a +/-1Pa instead of +/-4Pa.
It's the little boxes under the bricks, 0.5 liter with a very flexible membrane (child's balloon).
Results were correlated with mechanical pressure sensor and are OK.

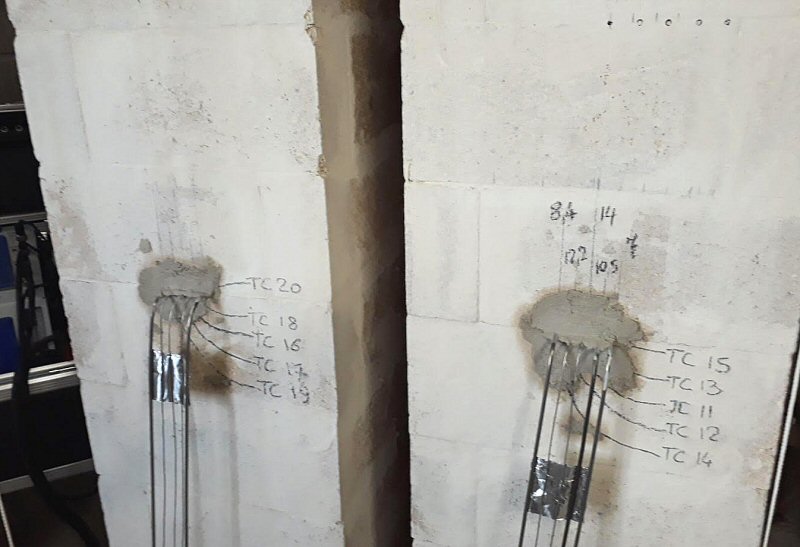

We added 10 thermocouples into the channels to establish a temperature profile across the smoke section:

Finally, after something like 200 hours of work, we were able to have a first workable analysis! :

So I start comparing results with calculation predictions, and a lot of problems appears once again :-D
See the two attached spreadsheets.
CalculPdM - v0.3.49 - Poęle test bas haut carré.ods
2018-11- 20 -Test.v.0.19.ods

I solved some of it, but there is still a lot to do.
I'm still questioning about how I could separate H2O produced by combustion from H2O evaporate from wood moisture.
This could help me to solve the air speed difference at air entrance between calculation and measure.

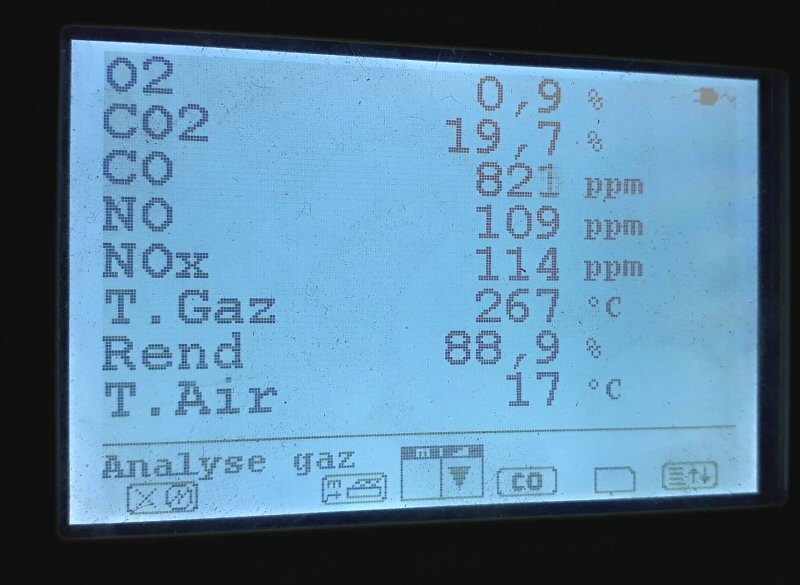

We had a very, very, very low O2 record:
