2018 MHA Research Heater Tests

Test MHA-1824
February 19, 2018

Heat exchanger reconfigured from downdrafting parallel channels
to a serial channel.

Repeat of standard 14 piece stacking from MHA-1801 - MHA-1816
Same wet weight, same kindling, different species, higher moisture

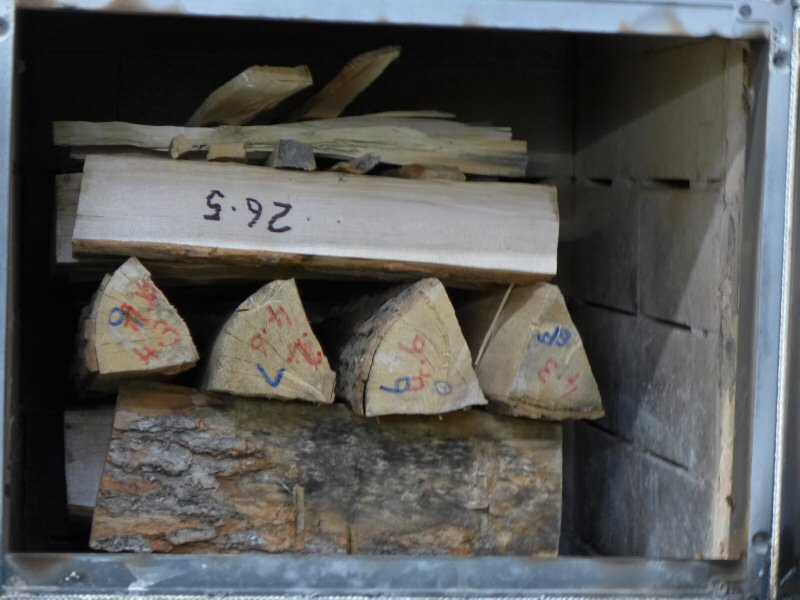

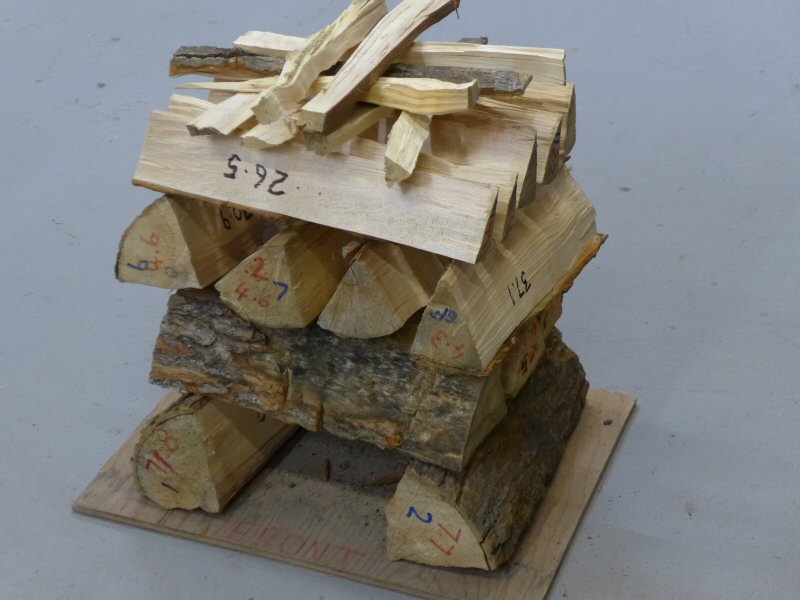

Maple, log cabin stacking, 2345 stacking. Top ignition
62.0 lbs including 2.0 lbs kindling
33.6% moisture. 2345 stacking.
Cold firebox 64F

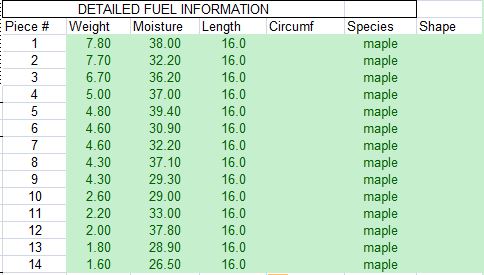

Pieces are numbered from the bottom up, front-to-back and left-to-right

Fuel load including 2 lbs kindling on top.

Pisla HTT 602 door, 22" wide
Austrian eco firebox, see http://www.heatkit.com/research/lopez-2014-03-01.html

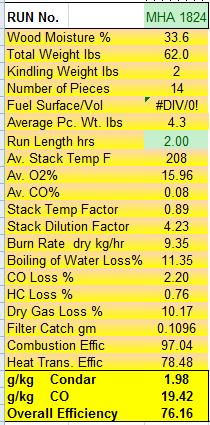

Summary sheet calculated at 120 minutes

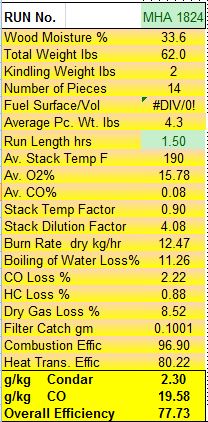

Condar spreadsheet summary panel, calculated at 90 minutes. Calculated at 120 minutes

Testo Raw Data

Lab Notes

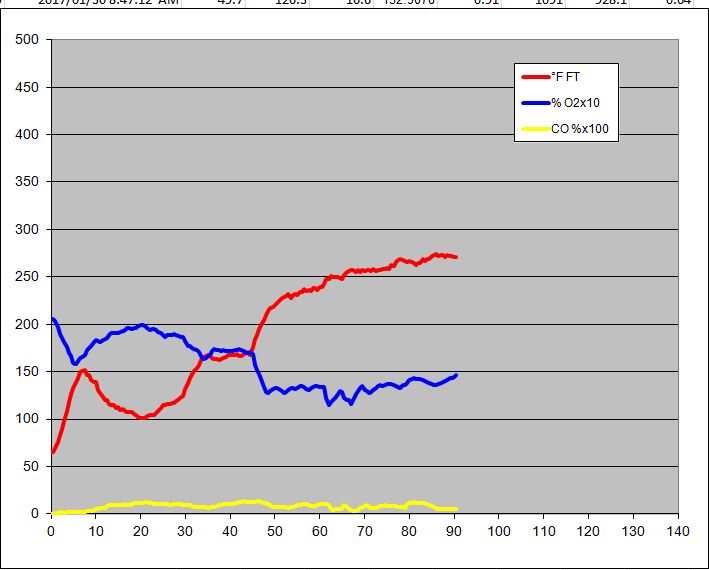

Flue gas graph to 90 minutes.
Note: CO curve is from a Horiba analyzer, and not from the Testo.

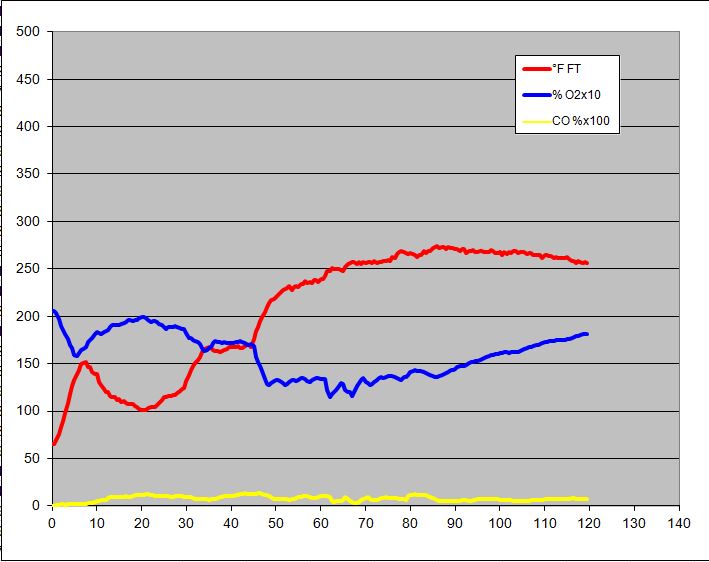

Gas graph taken to 120 minutes.

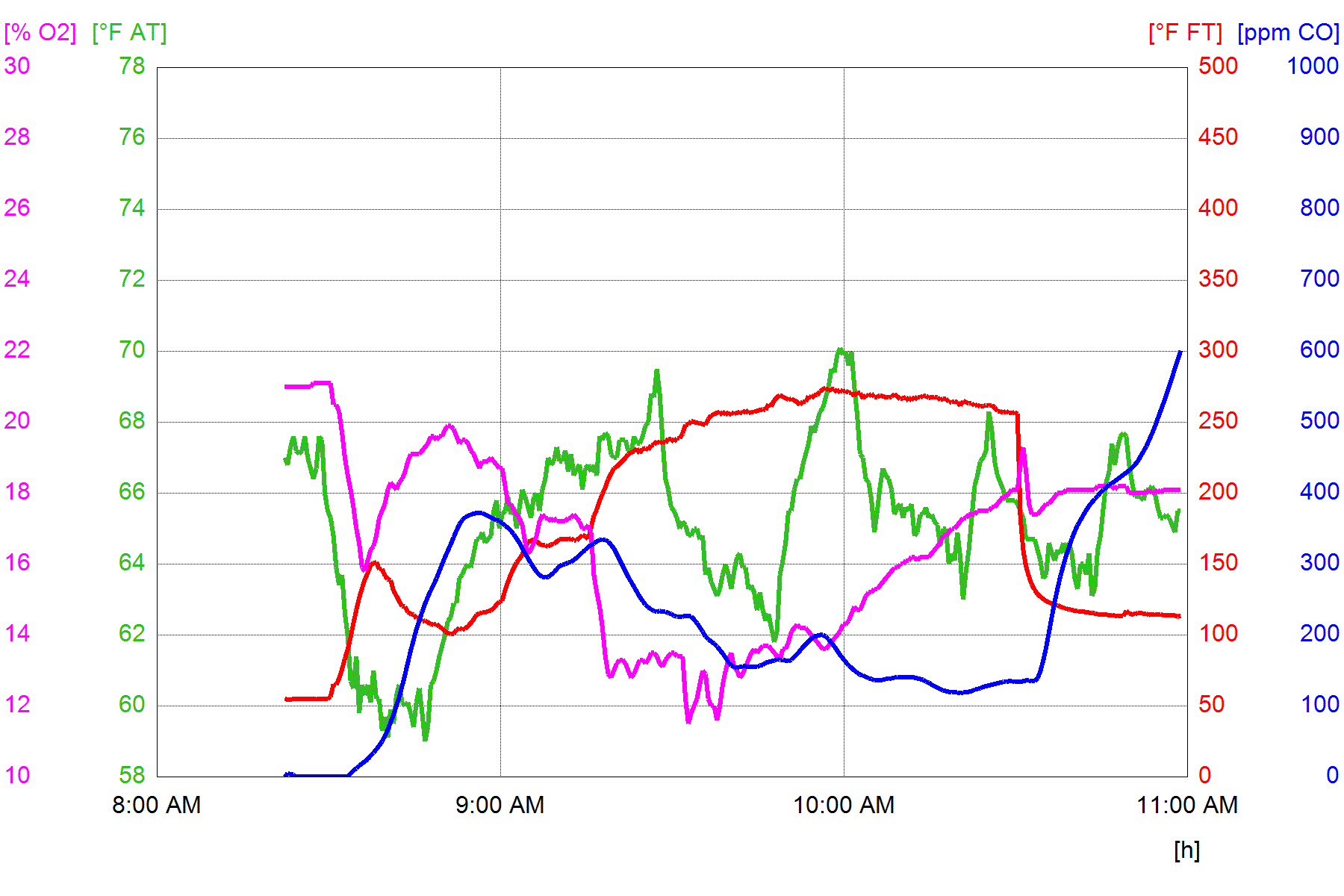

Testo gas graph.
Note: CO curve is inaccurate due to failing sensor. Backup CO data has been used for calculations.
Red line is stack temperature and green line is room temperature.

Maple, cut this year

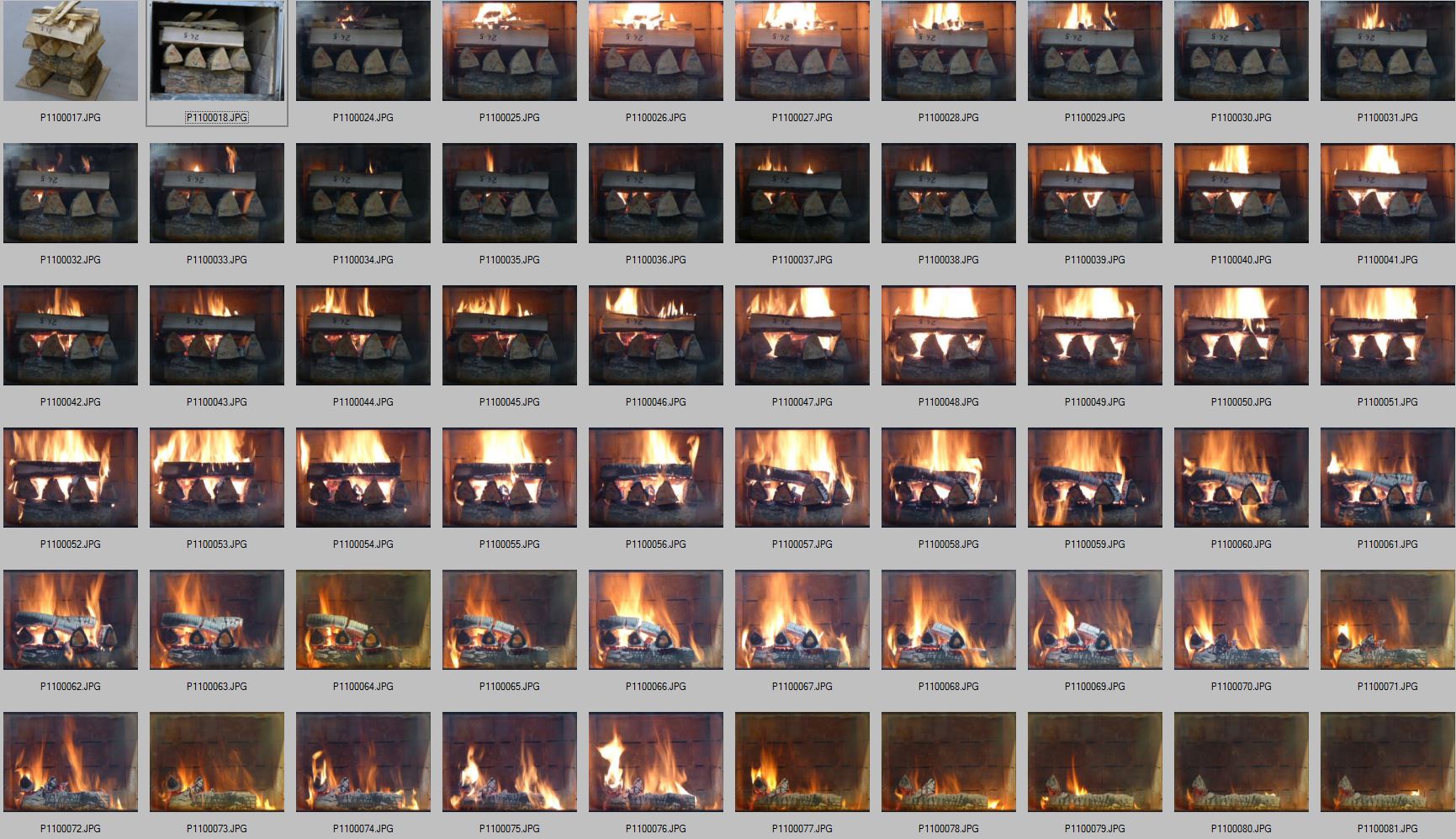

Burn sequence.
Time lapse taken at 2 minute intervals, fixed focus and fixed exposure.
Notice the burn progression. Delayed start due to wet wood. Compare with gas curves.
