2018 MHA Research Heater Tests

Test MHA-1823
February 16, 2018

Heat exchanger reconfigured from downdrafting parallel channels
to a serial channel.

Repeat of standard 14 piece stacking from MHA-1801 - MHA-1816
Same wet weight, same kindling, different species, higher moisture

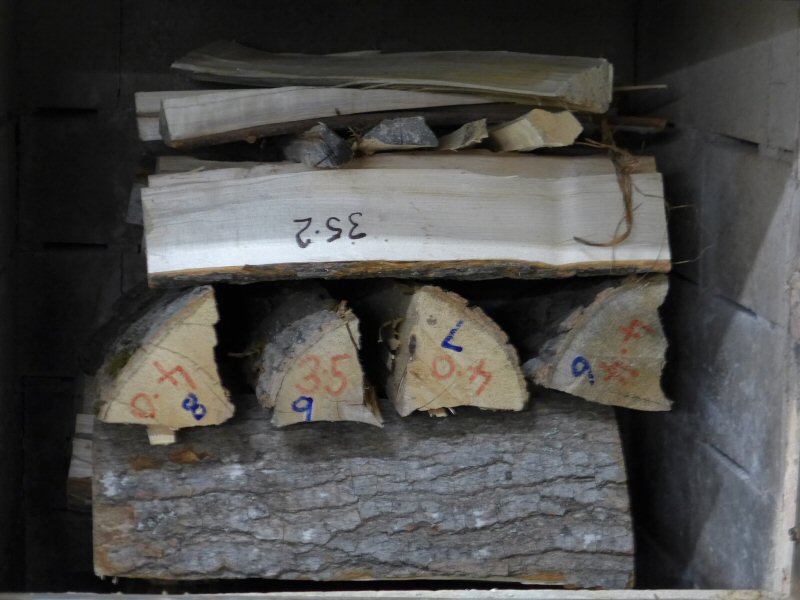

Maple, log cabin stacking, 2345 stacking. Top ignition
62.0 lbs including 2.0 lbs kindling
30.9% moisture. 2345 stacking.
Warm firebox, 184F

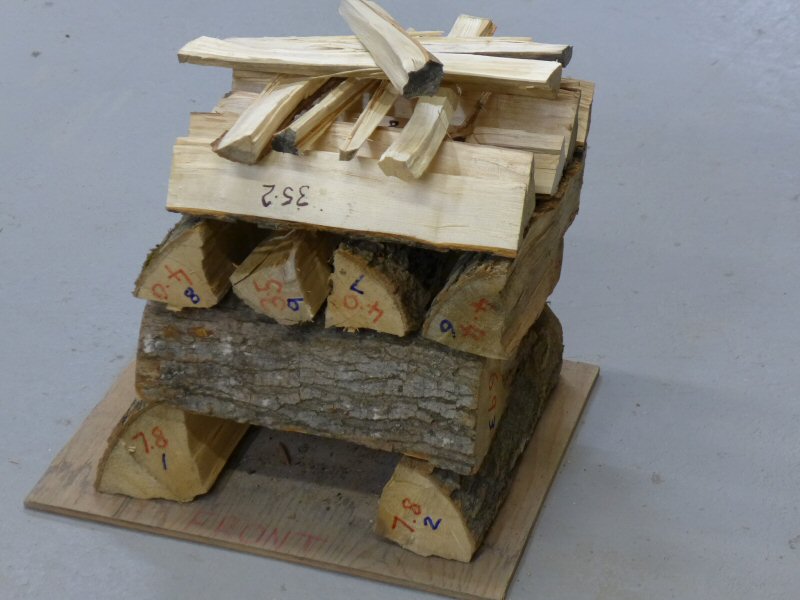

Pieces are numbered from the bottom up, front-to-back and left-to-right

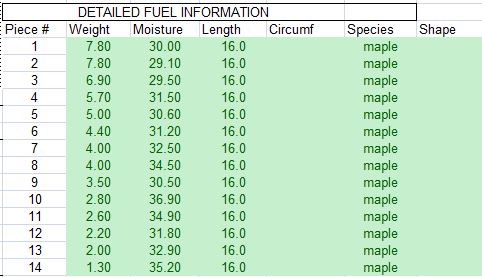

Fuel load including 2 lbs kindling on top.

Pisla HTT 602 door, 22" wide
Austrian eco firebox, see http://www.heatkit.com/research/lopez-2014-03-01.html

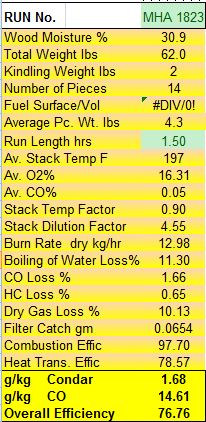

Condar spreadsheet summary panel, calculated at 90 minutes.

Testo Raw Data

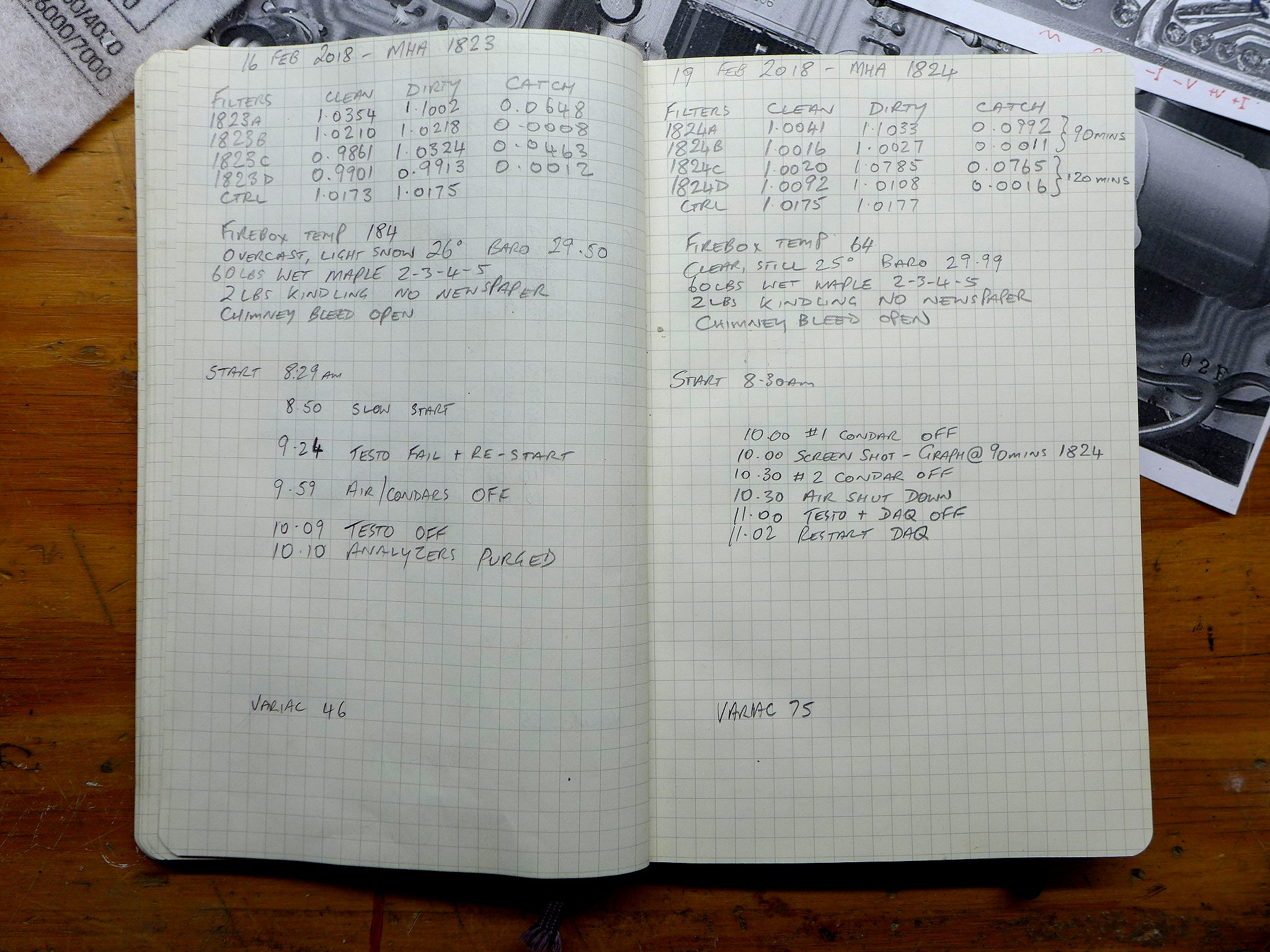

Lab Notes

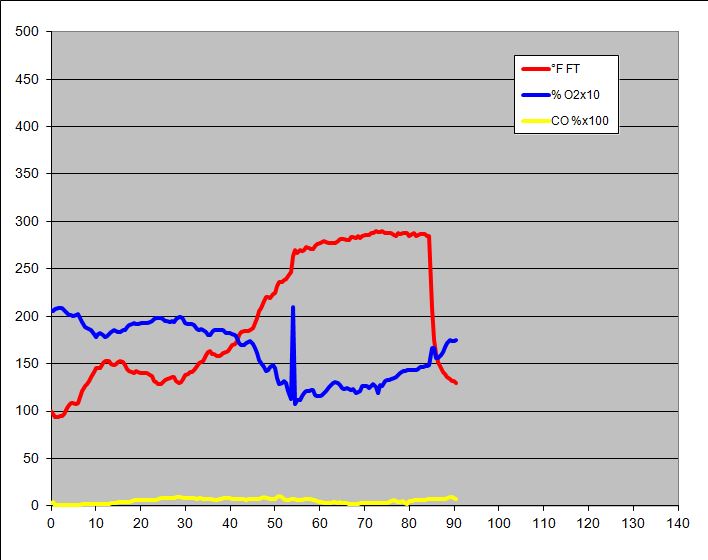

Flue gas graph to 90 minutes.
Note: CO curve is from a Horiba analyzer, and not from the Testo.

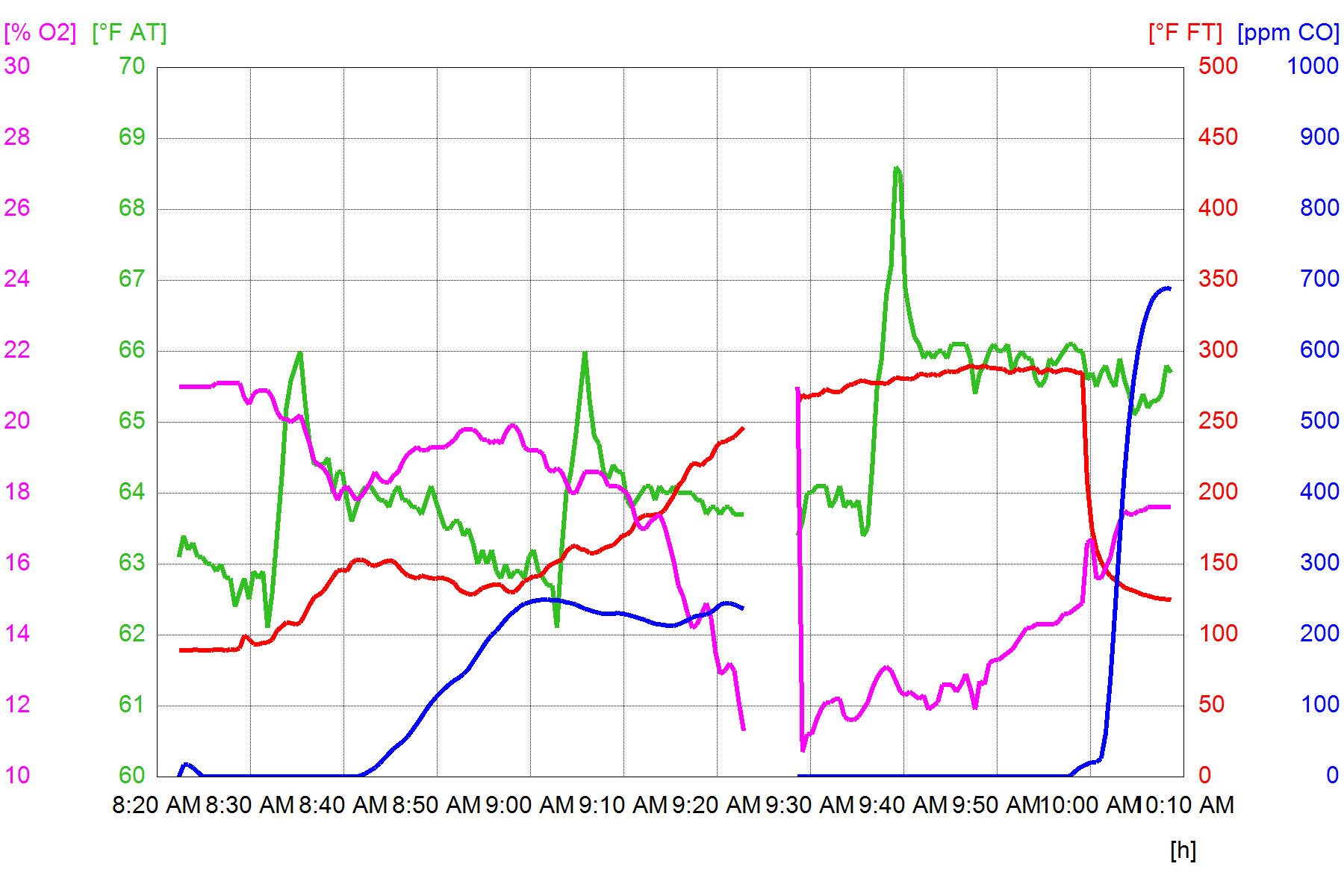

Testo gas graph.
Note: CO curve is inaccurate due to failing sensor. Backup CO data has been used for calculations.
Red line is stack temperature and green line is room temperature.

Maple, cut this year

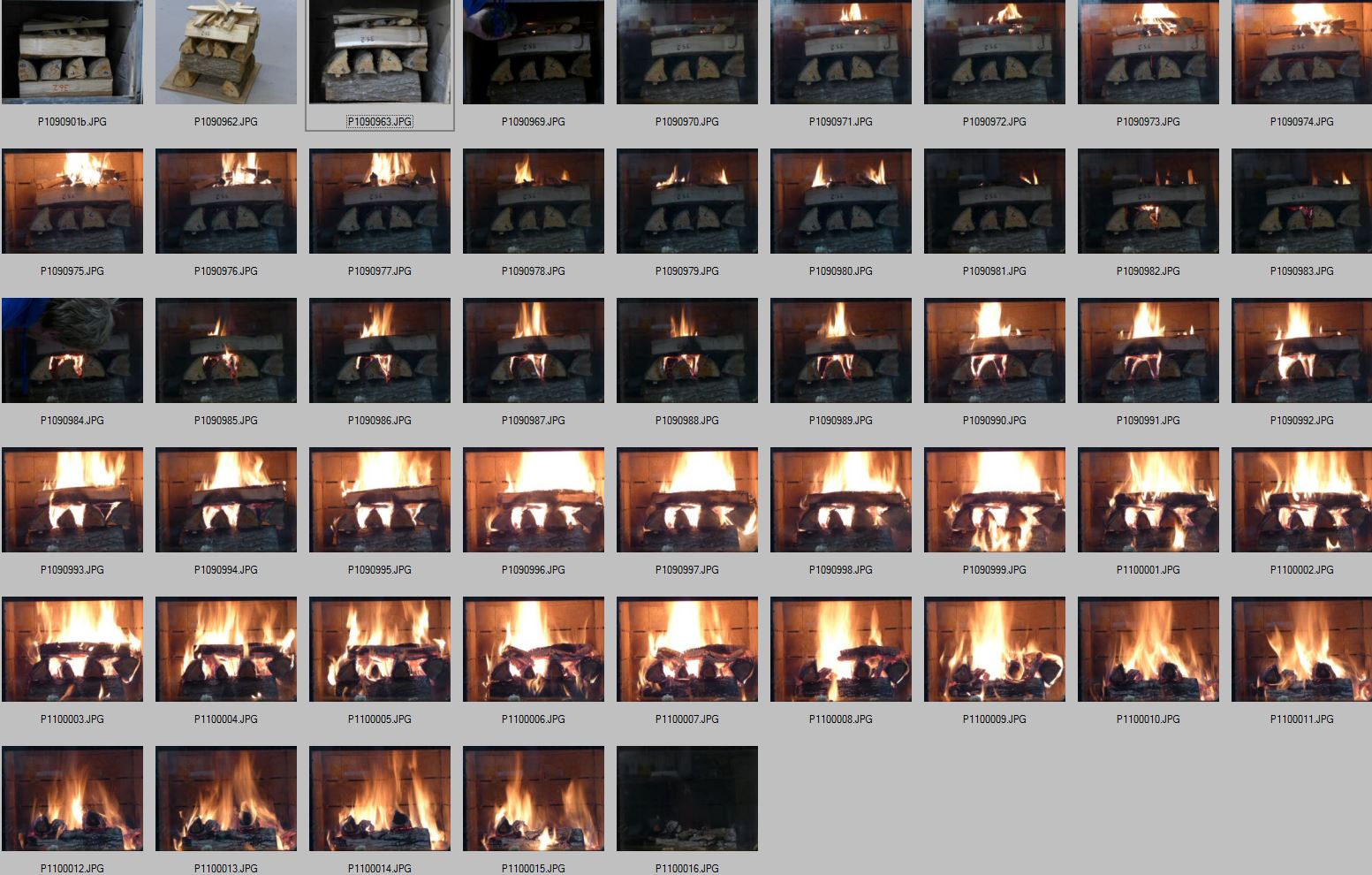

Burn sequence.
Time lapse taken at 2 minute intervals, fixed focus and fixed exposure.
Notice the burn progression. Delayed start due to wet wood. Compare with gas curves.
