2018 MHA Research Heater Tests

Test MHA-1812
January 31, 2018

Heat exchanger reconfigured from downdrafting parallel channels
to a serial channel.

First run of "Substantially Similar" study with reconfigured heat-exchanger
Run #10 of "Substantially Similar" study
Red oak, log cabin stacking, top ignition
62.0 lbs including 2.0 lbs kindling
22.1% moisture. 2345 stacking.

Pisla HTT 602 door, 22" wide
Austrian eco firebox, see http://www.heatkit.com/research/lopez-2014-03-01.html

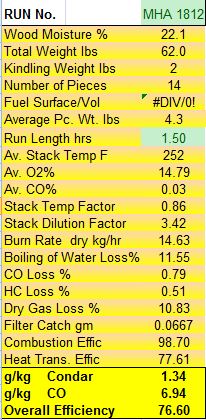

Condar spreadsheet results, calculated at 90 minutes.

Testo Raw Data

Lab Notes

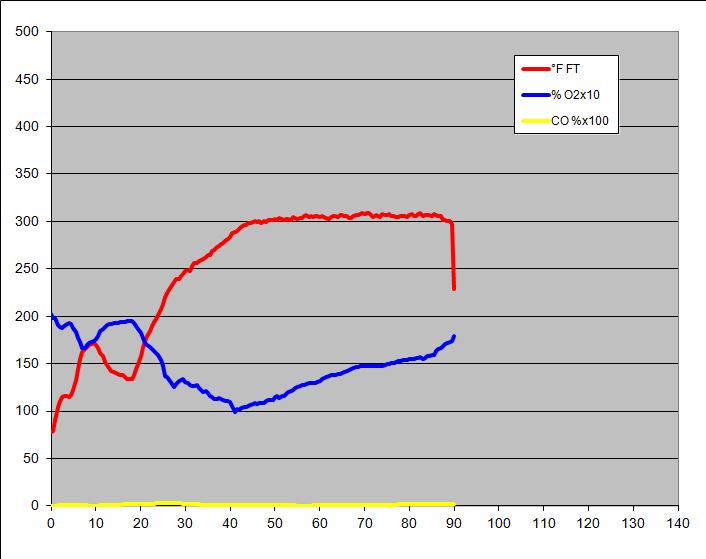

Flue gas graph to 90 minutes.
Note: CO curve is inaccurate due to failing sensor. Backup CO data has been used for calculations.
Compare graph with graphs MHA-1806 - MHA-1809, with the previous heat exchanger configuration.

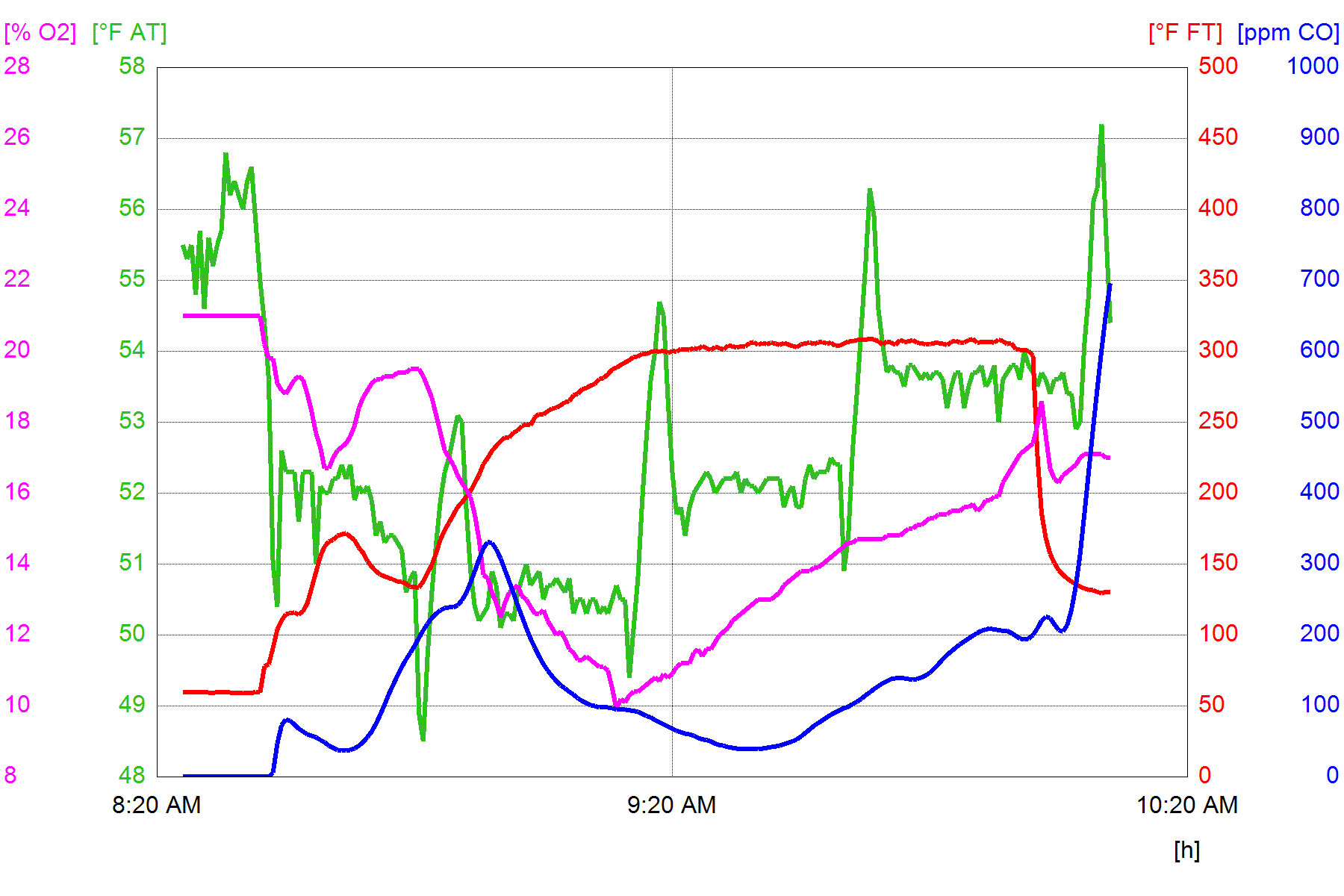

Testo gas graph.
Note: CO curve is inaccurate due to failing sensor. Backup CO data has been used for calculations.
Red line is stack temperature and green line is room temperature.

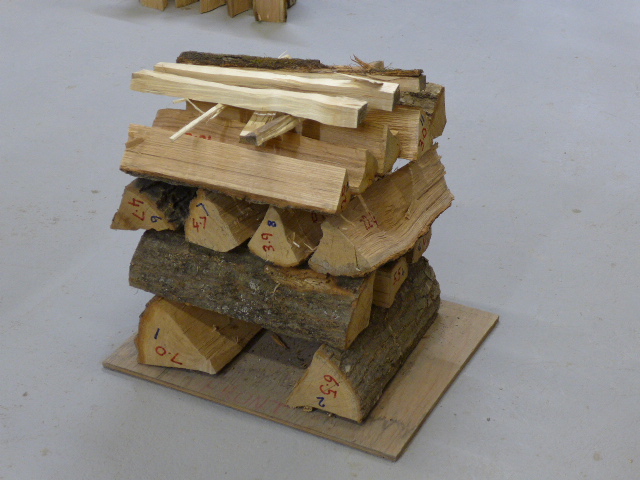

Red oak, same fuel batch as last series of 2017

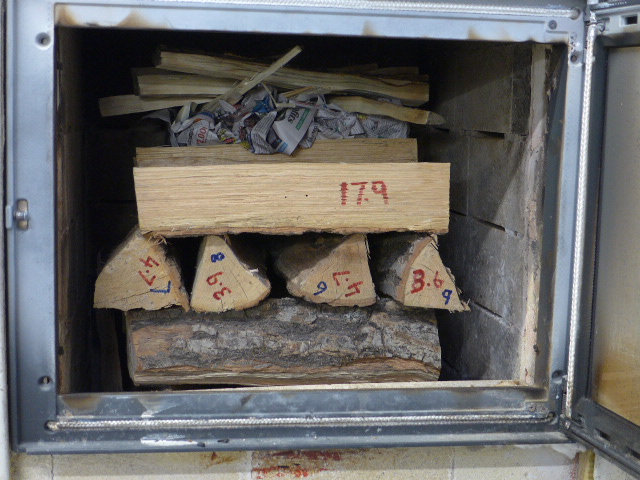

Log cabin stacking, top ignition
62.0 lbs including 2.0 lbs kindling
22.1% moisture.

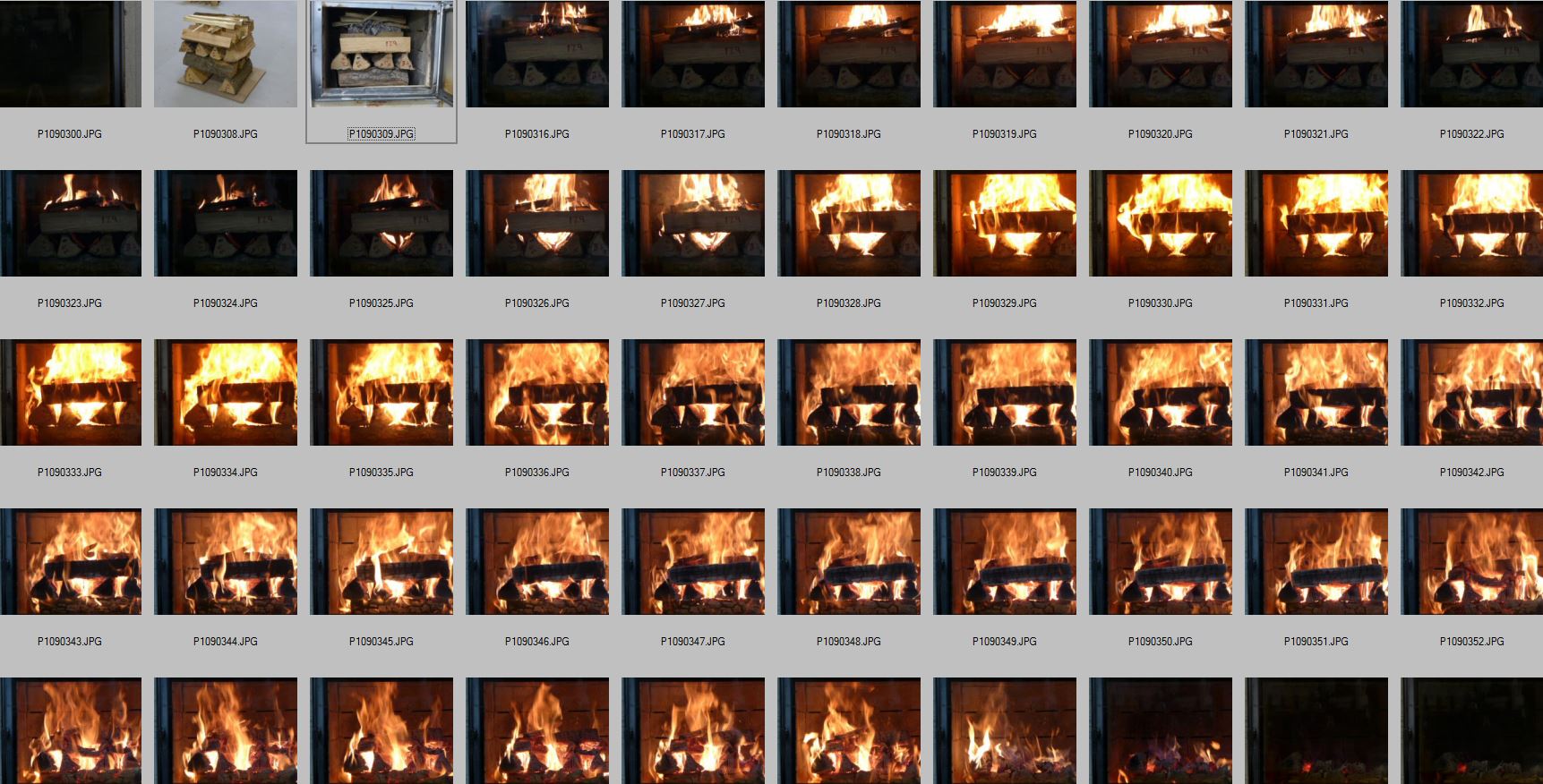

Burn sequence.
Time lapse taken at 2 minute intervals, fixed focus and fixed exposure.

This page was updated on February 7, 2018
This page was created on January 31, 2018
