2014 Heater Fuel Tests at Shawville

Test HK-M33
March 19, 2014

Red oak cordwood, big pieces
Side ignition.  Newspaper 3/4 up the kindling pile.
60.7 lbs including 5.5 lbs kindling
16.4% moisture.

Stack temperature corrected for height.
Pisla HTT 602 door, 22" wide
Austrian eco firebox, see
Custom air frame, setup "D"
Rear grate closed

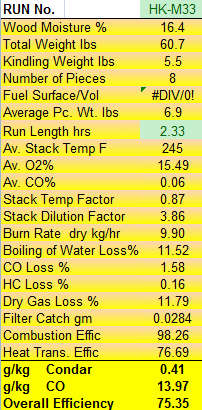

Condar Spreadsheet

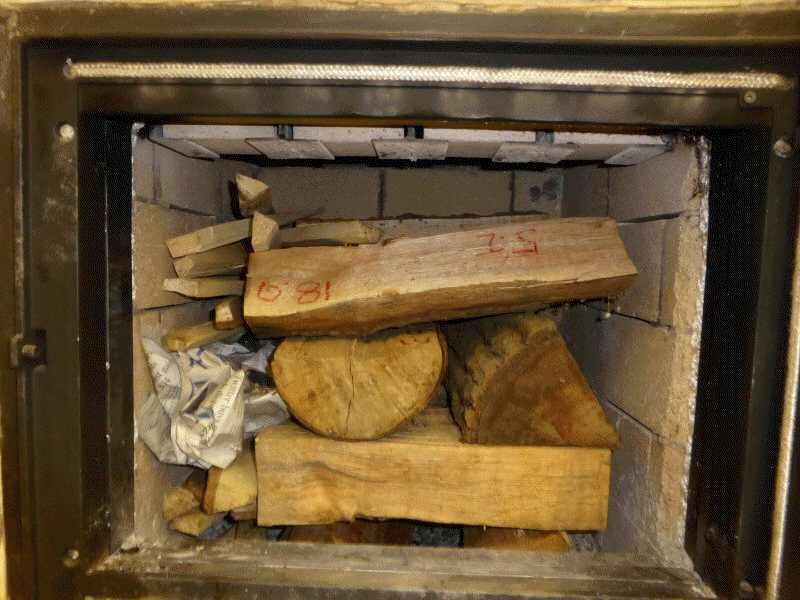

Animation,  5 minute intervals.  Newspaper is located half way up the kindling stack.

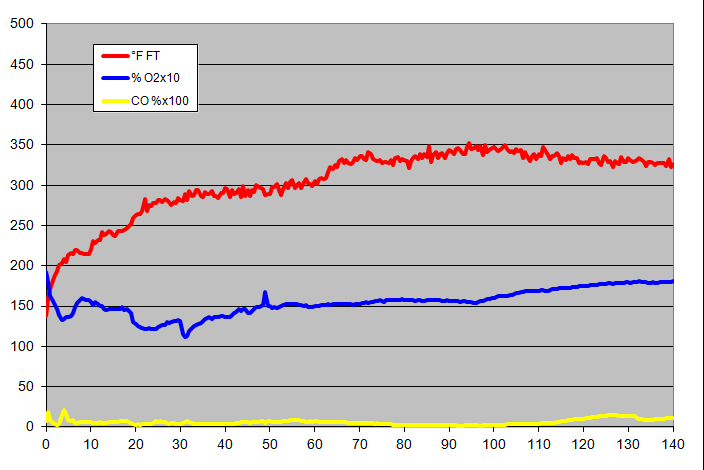

Flue gas curves.

TESTO Excel data file

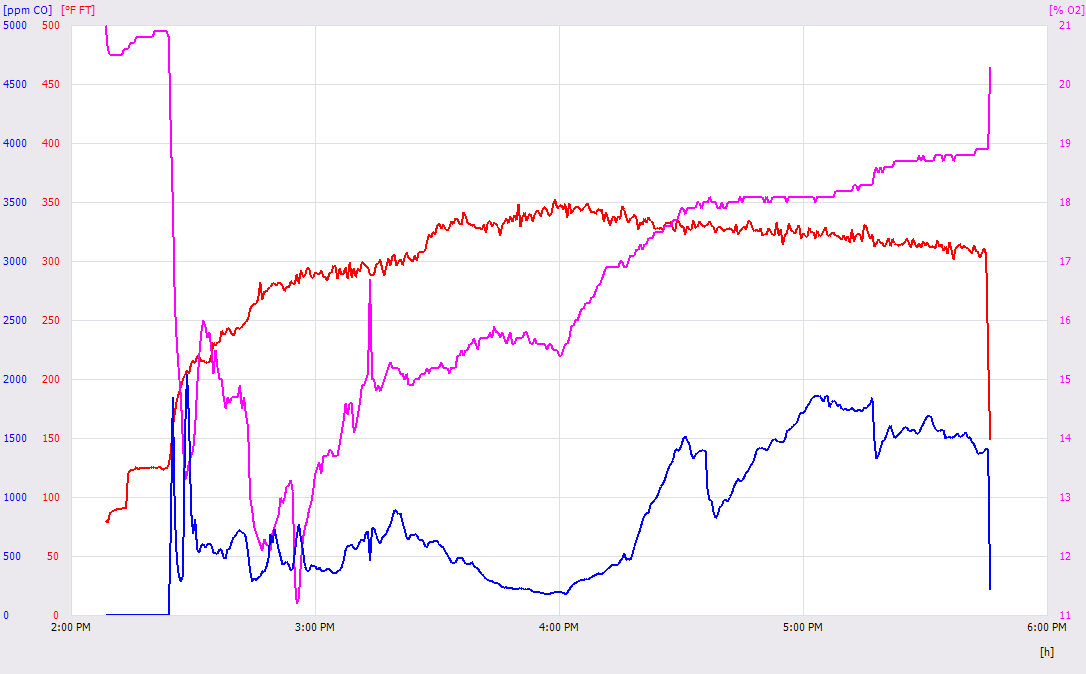

Testo graph
Testo gas graph, entire cyle.

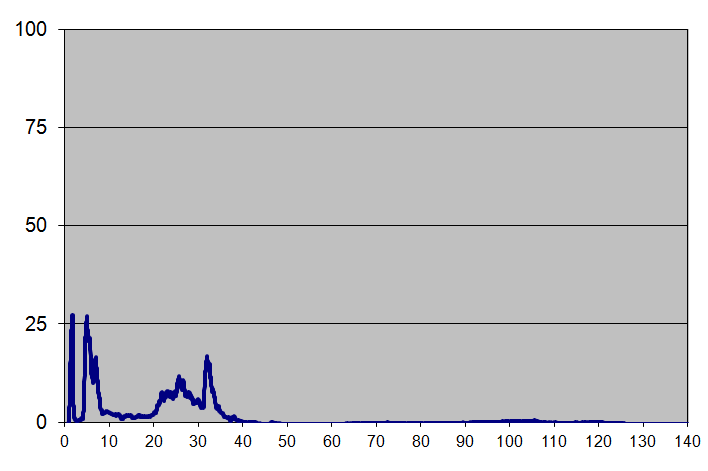

Opacity graph.

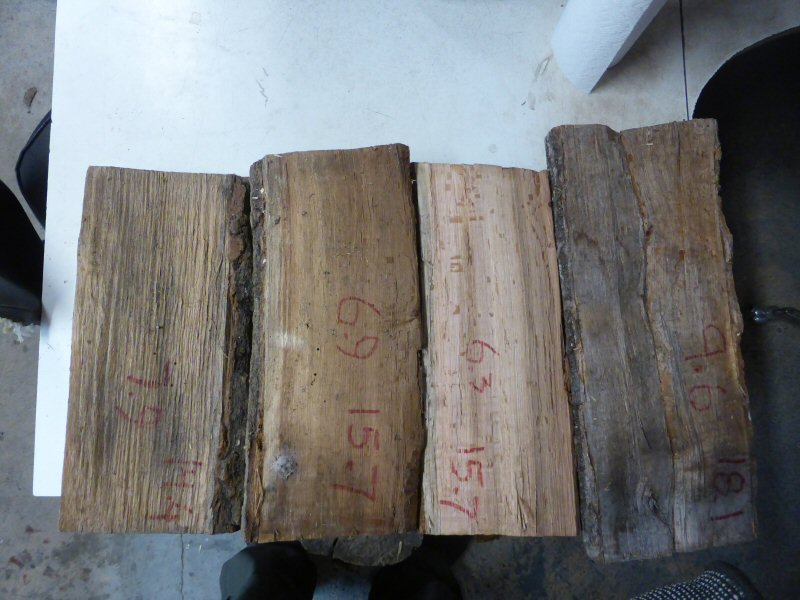

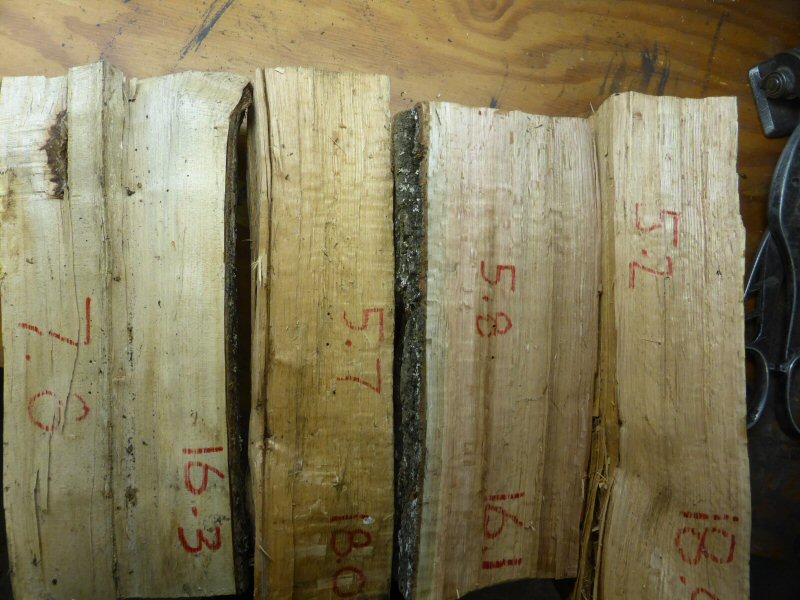

Red oak cordwood.  Largest pieces were placed at the bottom, smallest pieces at the top.

Stacked in firebox

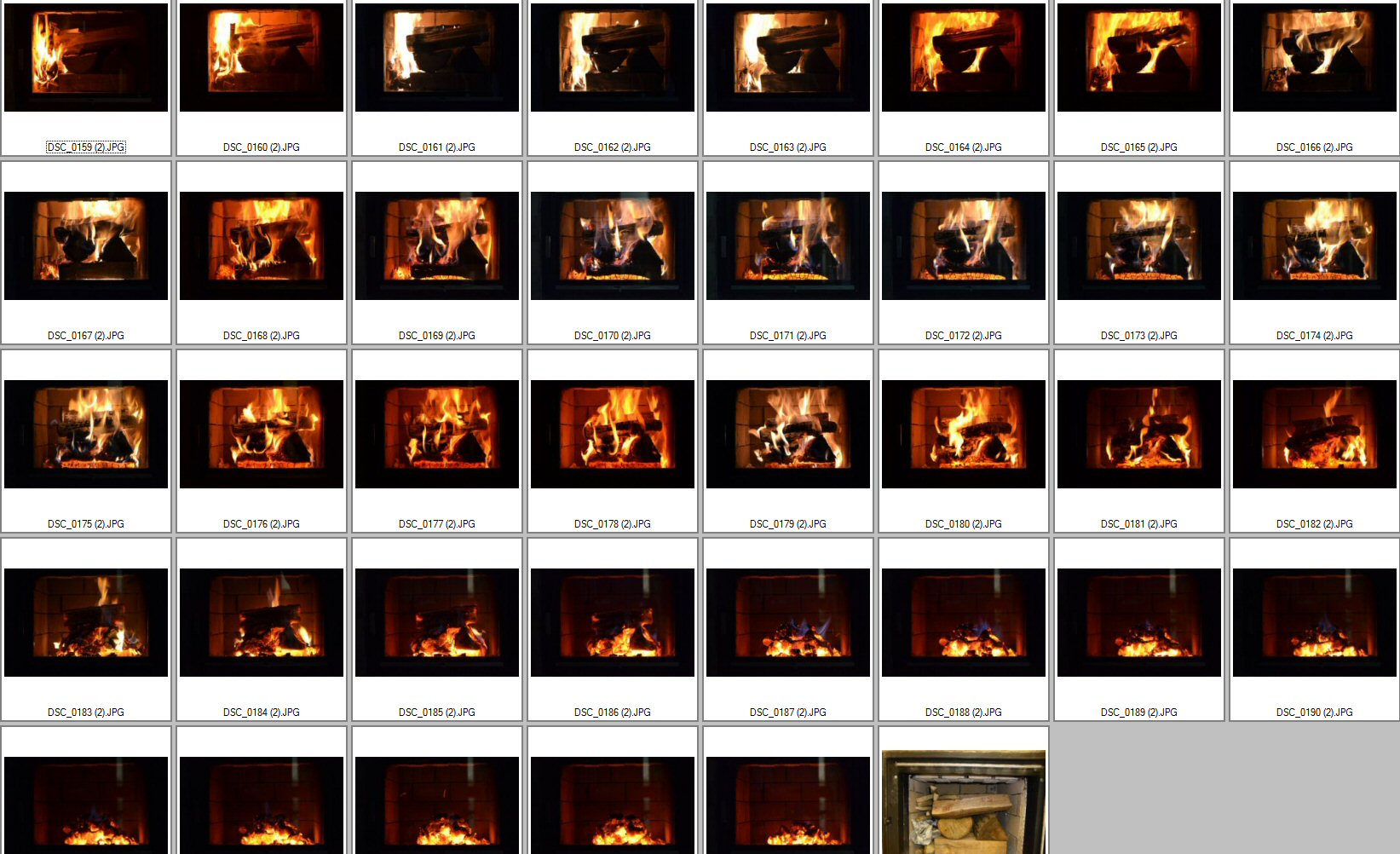

Burn sequence 5 minute intervals

This page was updated on April 2, 2014
This page was created on April 2, 2014
