2014 Heater Fuel Tests at Shawville

Test HK-M21
March 3, 2014

White birch cordwood. Large wood, top ignition
57.2 lbs including 4.0 lbs kindling
15.5% moisure
Stack temperature corrected for height.

Pisla HTT 602 door, 22" wide
Austrian eco firebox, see
Custom air frame, setup "D"
Rear grate closed

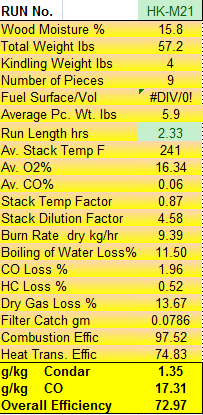

Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

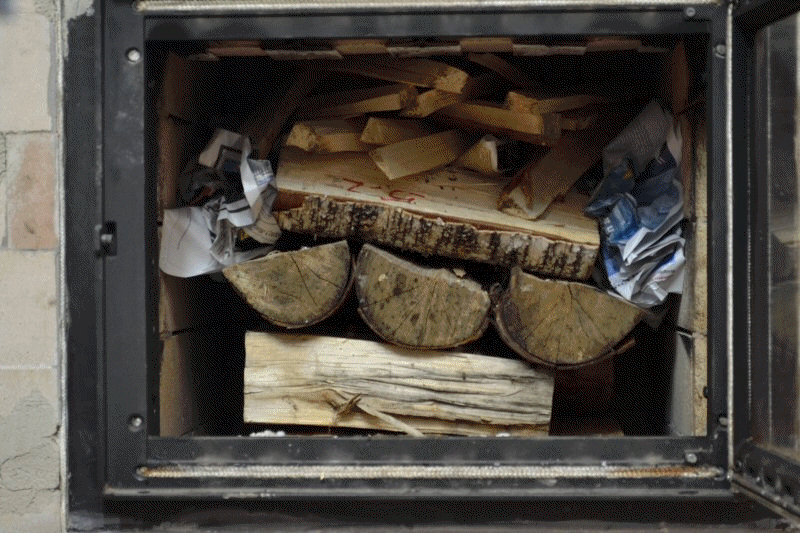

Animation,  5 minute intervals.  Top ignition. Sequence extended to 140 minutes.
See burn videos, below.

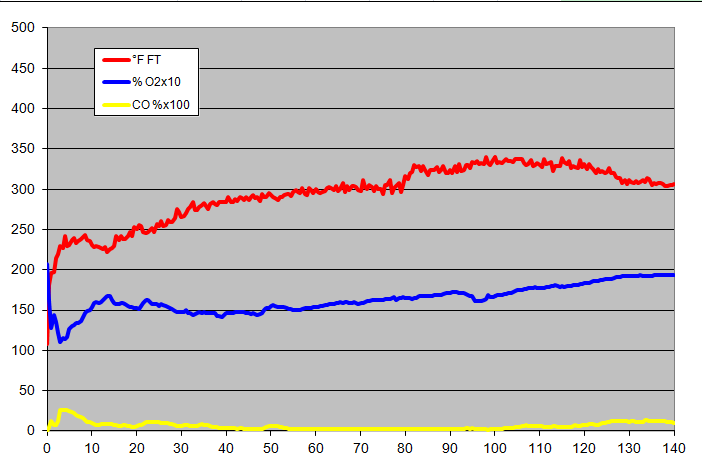

gas analysis
Flue gas
- top ignition. Extended to 140 minutes. See Testo graph, below, for entire burn.

TESTO Excel data file

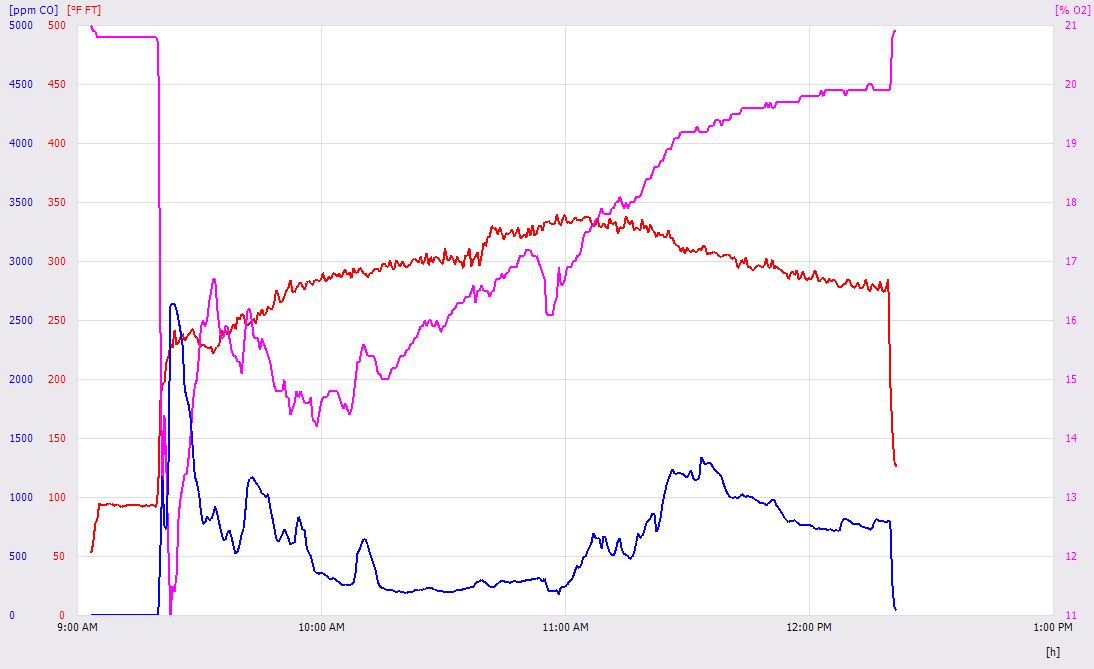

Testo graph
Testo gas graph, entire cyle
Burn was ended at 3 hours with coals still in the firebox. Note O2 jump at end of graph.

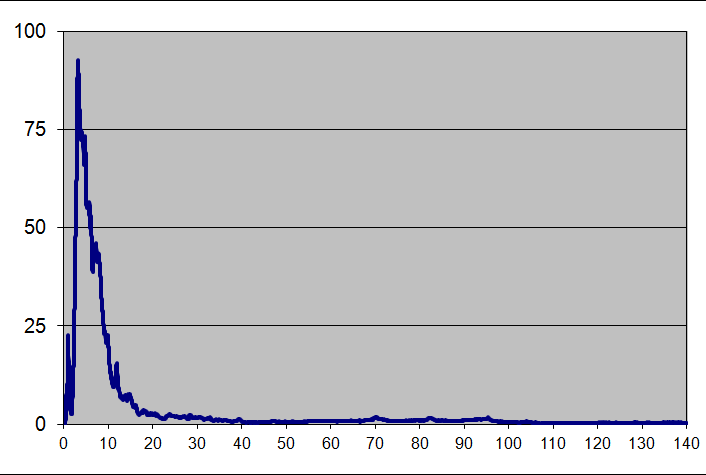

Opacity graph.
Very large soot spike upon lighting 4 lbs of poplar kindling at top of pile. The Condar filter was plugged at 27 minutes.
The Condar was left running at full power, the filter was not exchanged. Therefore actual PM value would be slightly higher,
judging from the opacity graph. Filter was surprisingly light, indicating pure soot with no volatiles.

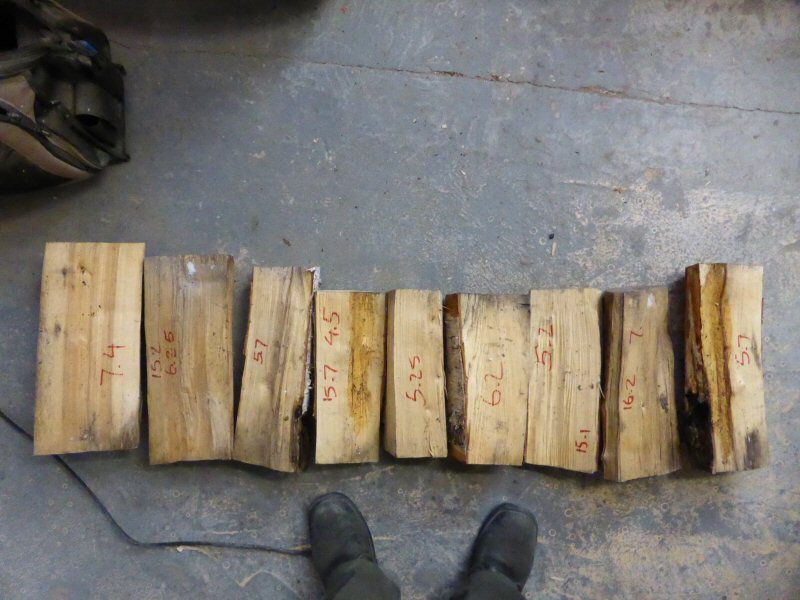

fuel load
Fuel load.

Stacked in firebox

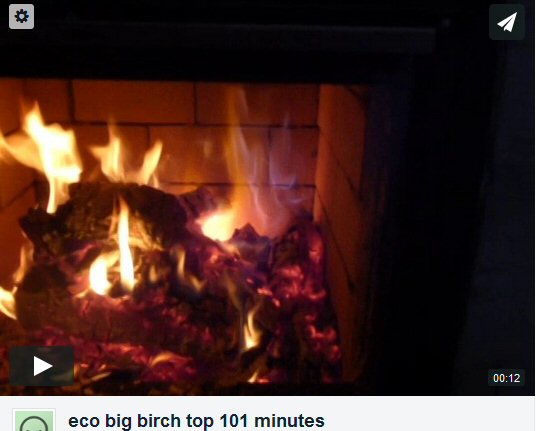

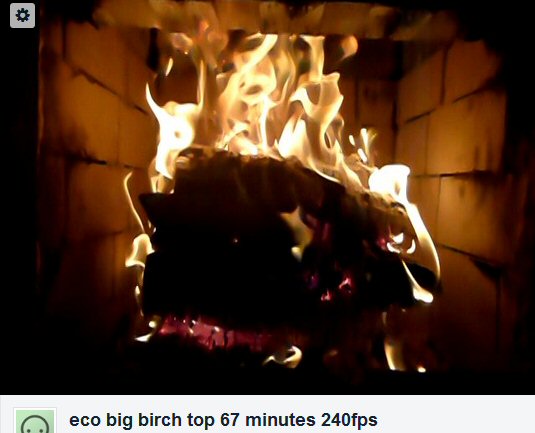

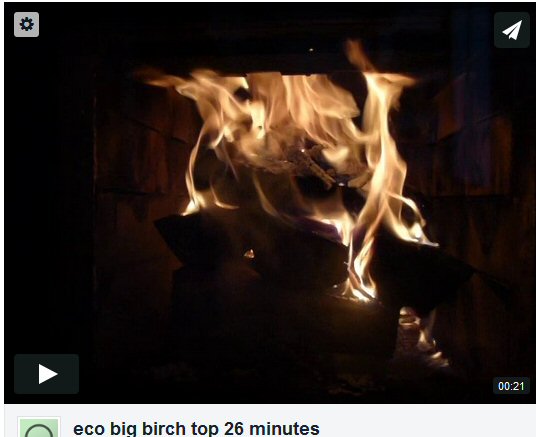

Burn sequence

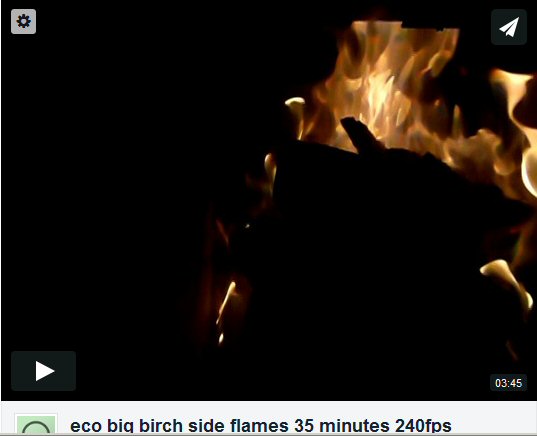

Note the smoke coming from the front of the pile. It does not really show up on the
opacity graph.

Note the blue carbon dioxide flame igniting at the second course right rear air slot.
