2014 Heater Fuel Tests at Shawville

Test HK-M18
February 19, 2014

White birch
47.1 lbs including 4.25 lbs kindling
18.2% moisure
Stack temperature corrected for height.

Pisla HTT 602 door, 22" wide
Custom air frame, setup "C"
Rear grate reduced 50%,

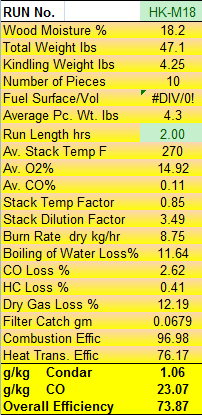

Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

Animation
Animation,  5 minute intervals.

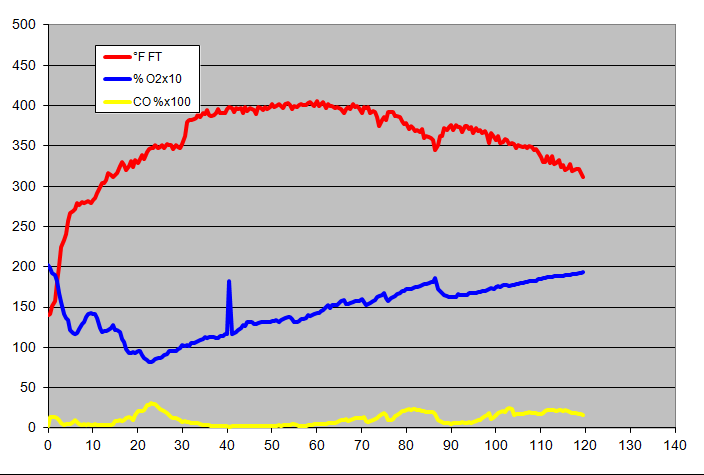

gas analysis
Flue gas
- from lighting kindling underneath crib.

TESTO Excel data file

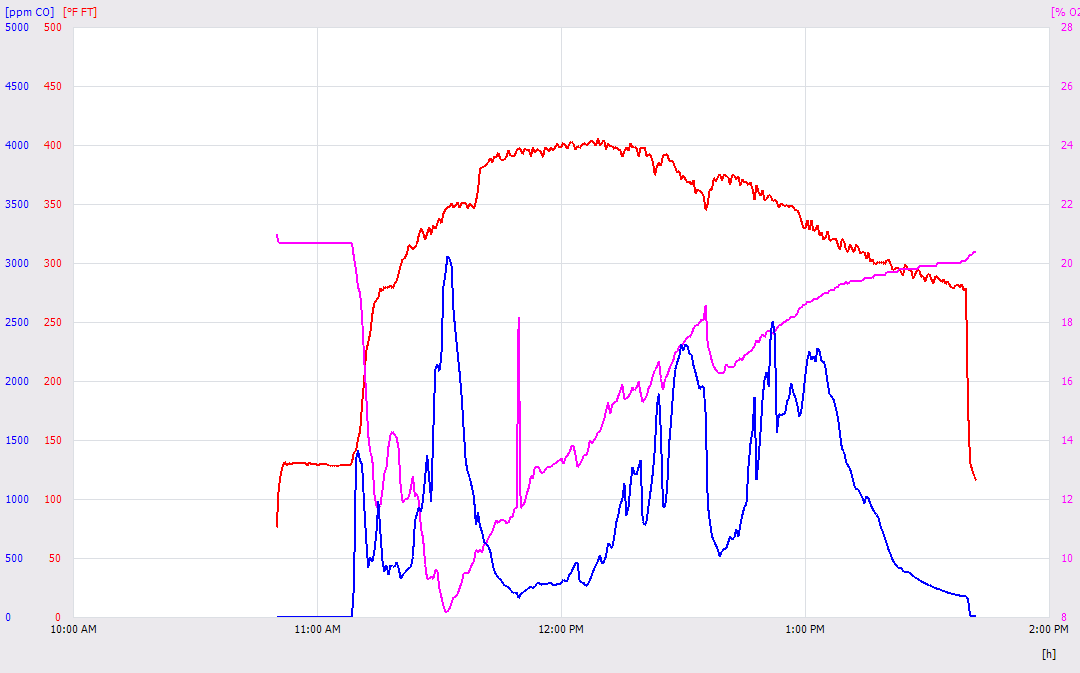

Testo graph
Testo gas graph, entire cyle

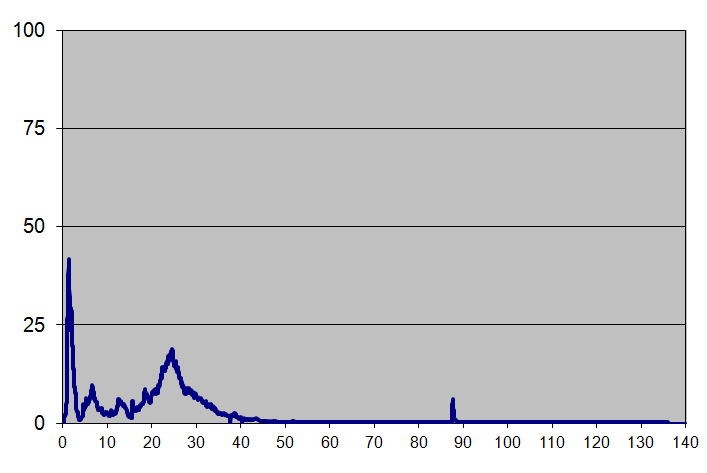

Opacity graph.

Opacity

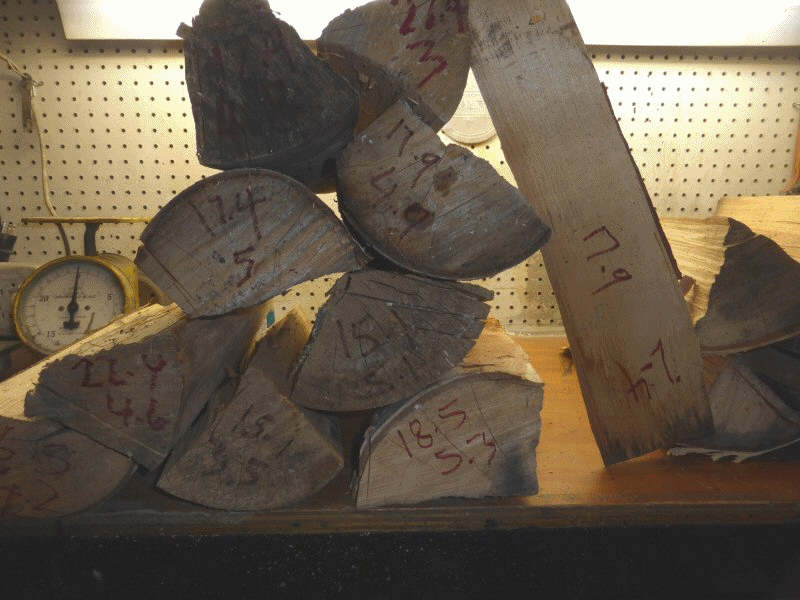

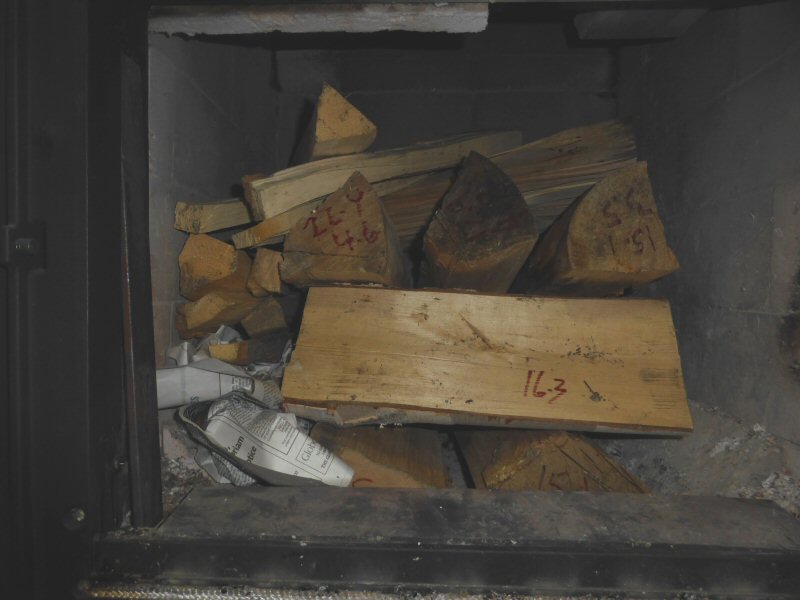

fuel load
Fuel load.


Stacked in firebox/

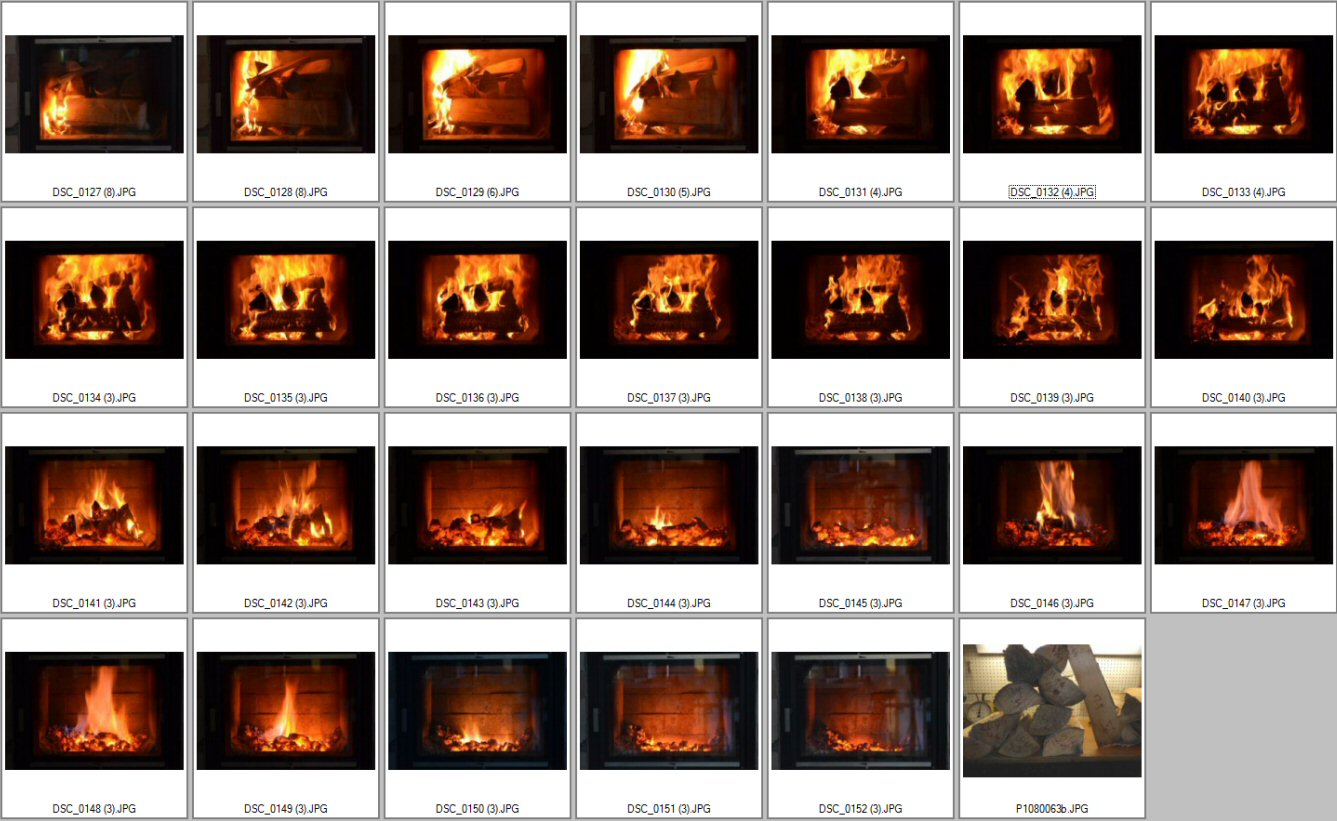

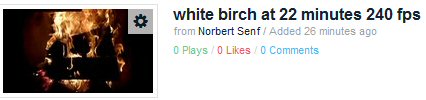

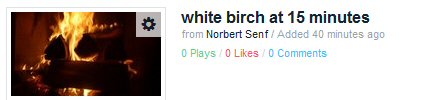

Burn sequence

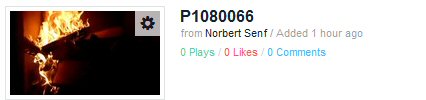

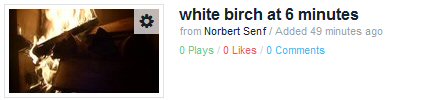

White birch at 6 minutes, 240 frames per second
