2014 Heater Fuel Tests at Shawville

Test HK-M16
February 8, 2014

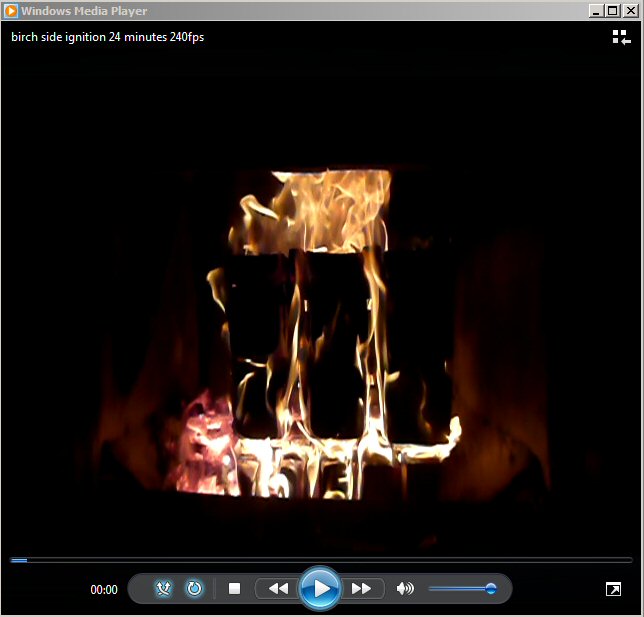

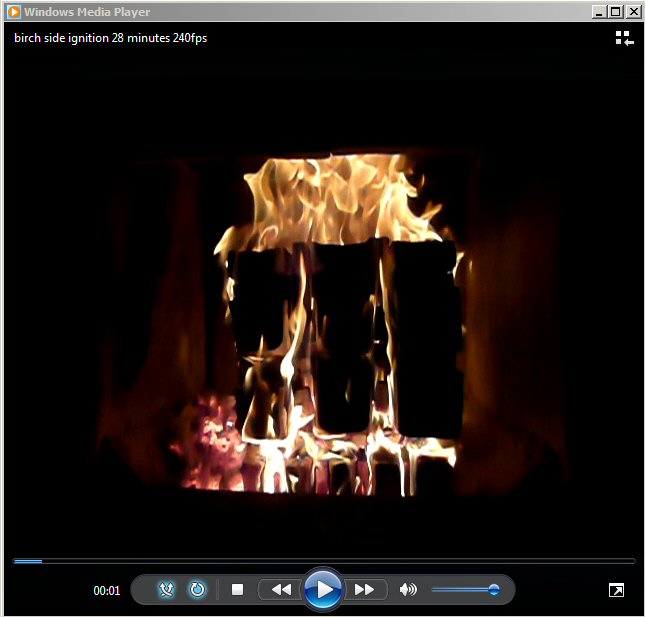

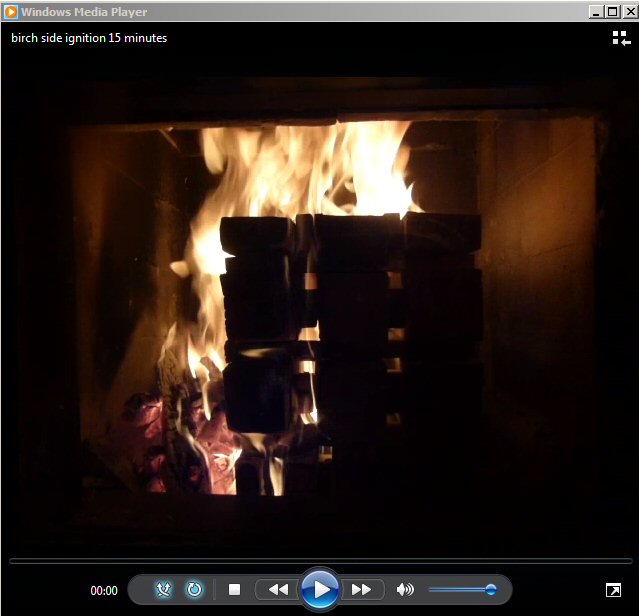

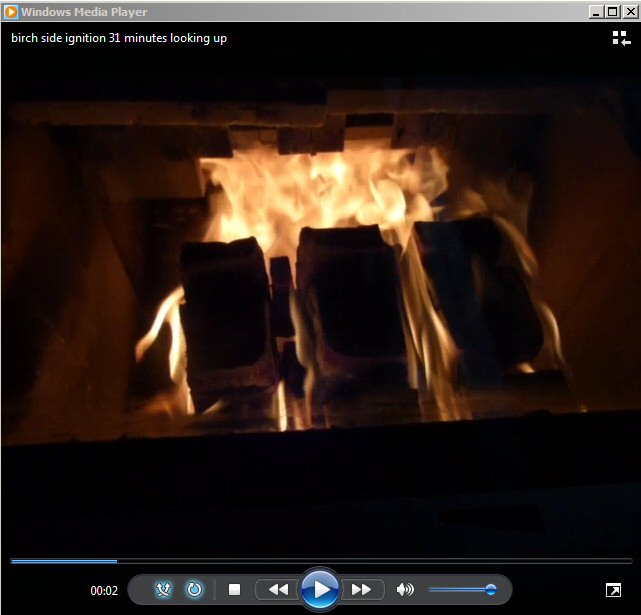

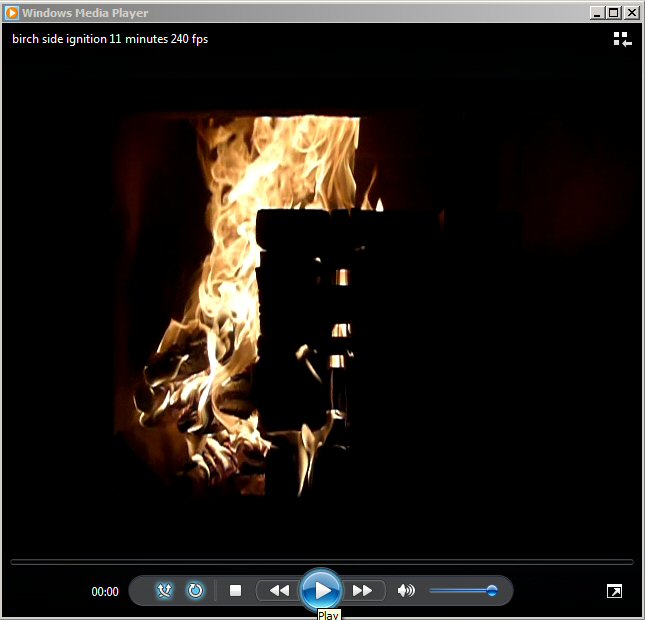

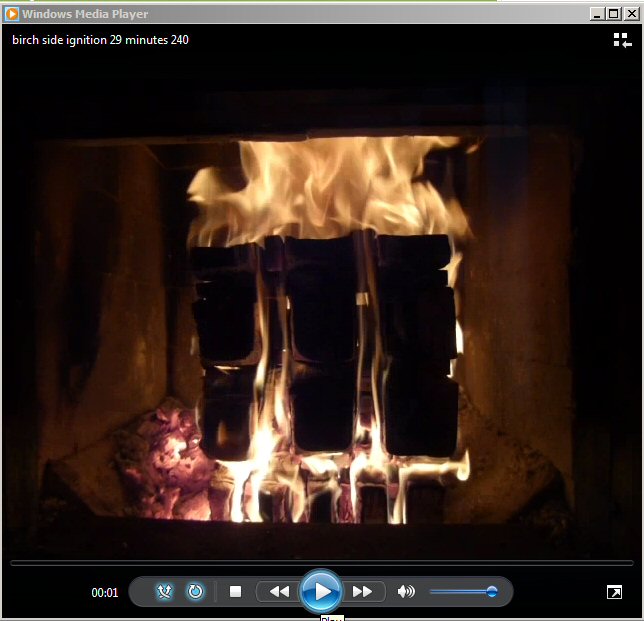

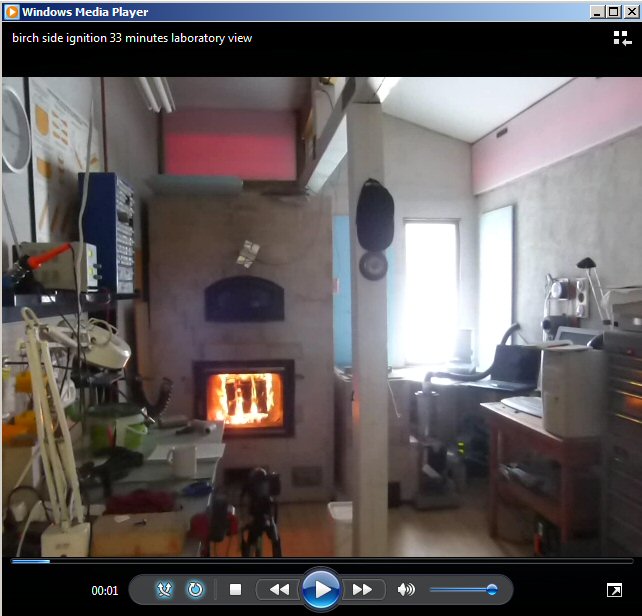

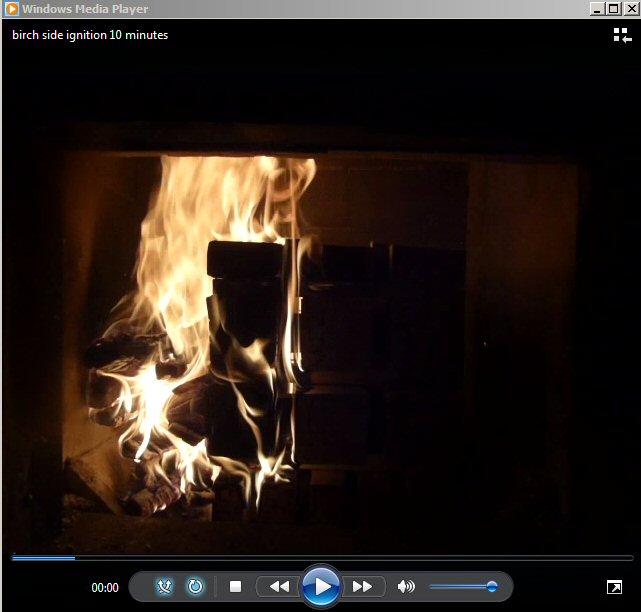

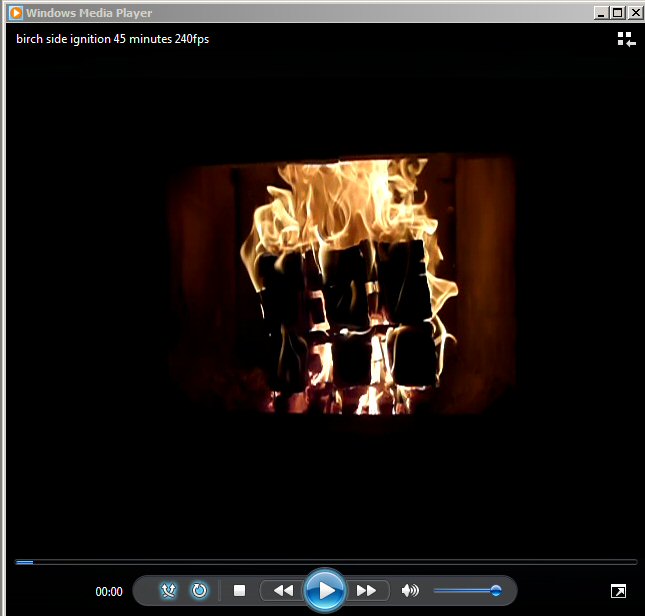

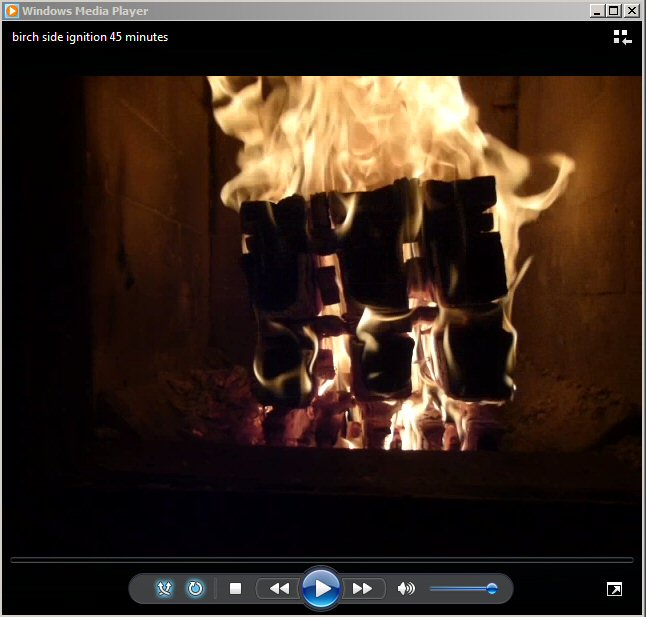

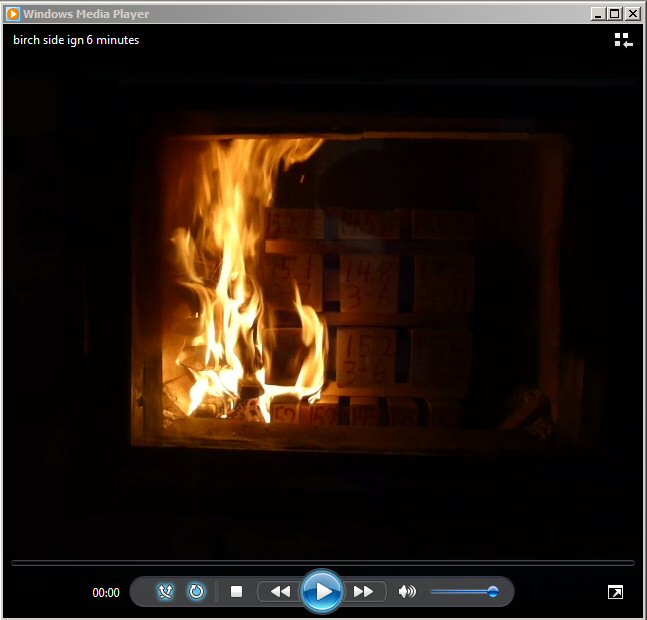

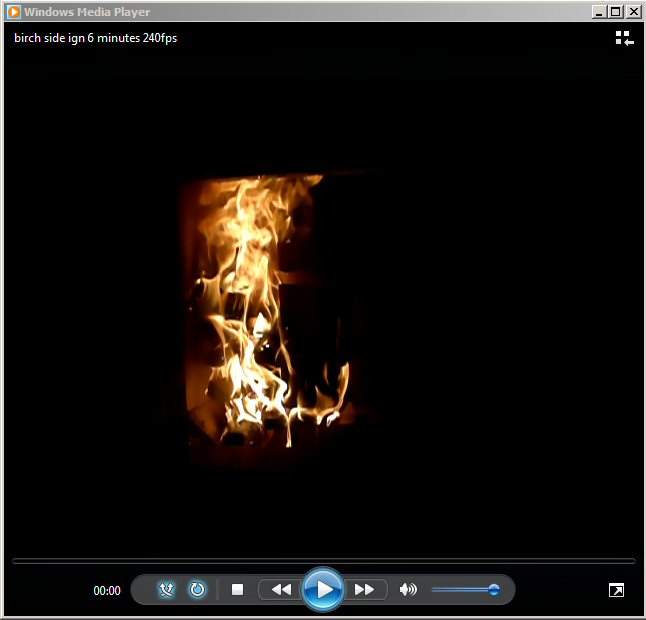

Scroll to bottom of page for exensive video documentationigniting

White birch 3.5"x3.5" crib,
37.3 lbs including 3.75 lbs kindling
15.8% moisure
ASTM spec for crib stacking
Stack temperature corrected for height.

Pisla HTT 602 door, 22" wide
Custom air frame, setup "C"
Rear grate reduced 50%,

Repeat run of HK-M14, with the kindling changed from bottom ignition to side ignition.

HK-M14:   bottom ignition   2.41g/kg PM     46.77g/kg CO      71.14 efficiency
HK-M16:  side ignition         1.37g/kg PM     35.17g/kg CO      71.41 efficiency

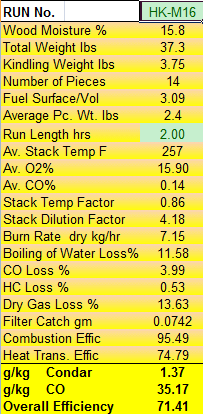

Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

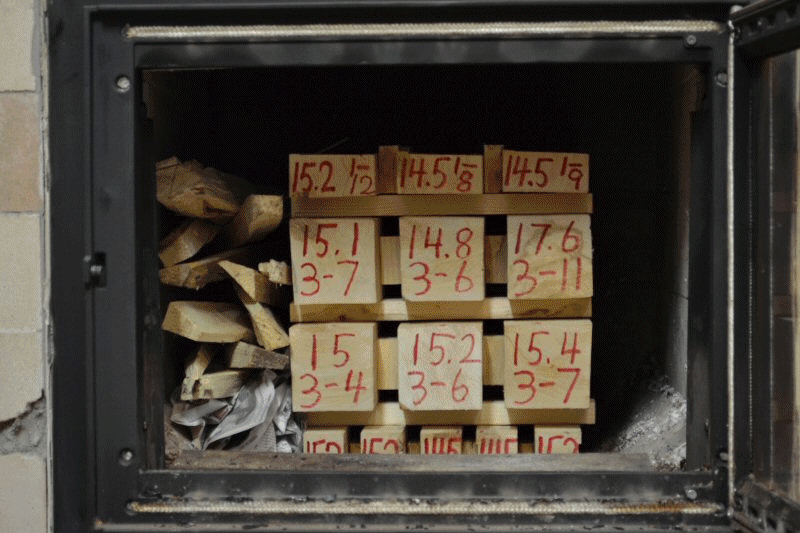

Animation,  5 minute intervals. Note the very smokey start upon lighting the kindling.

gas analysis
Flue gas
- from lighting kindling underneath crib.

TESTO Excel data file

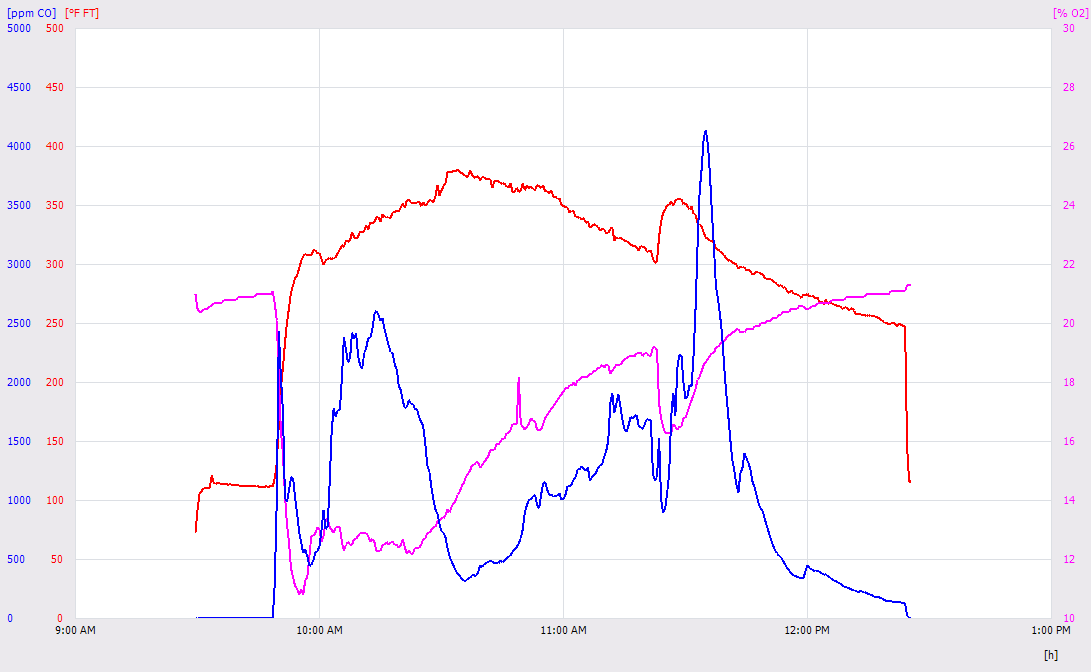

Testo graph

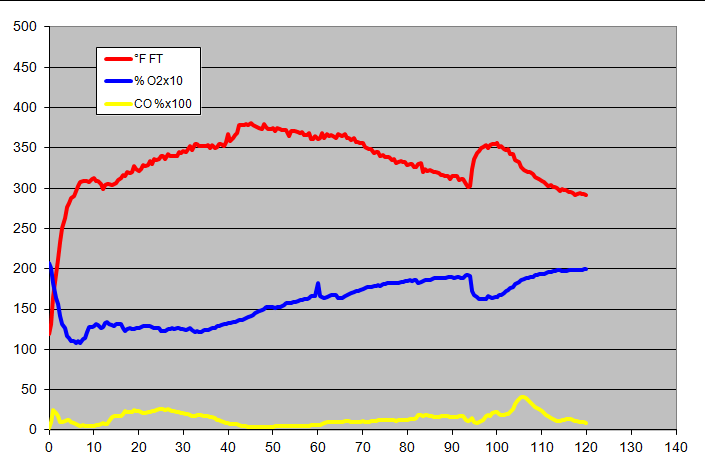

Testo gas graph, entire cyle

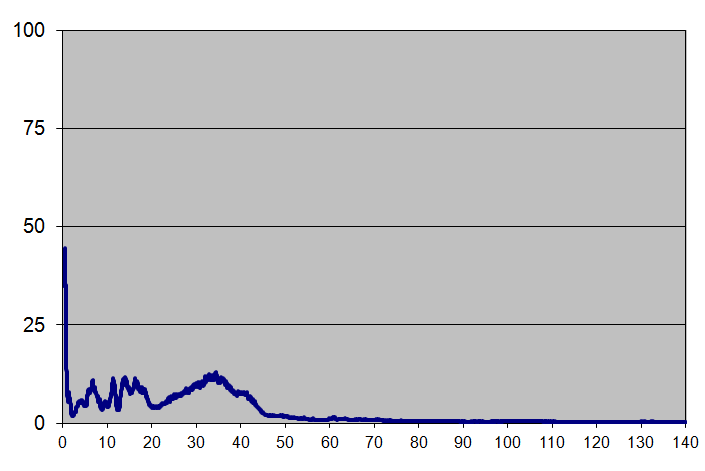

Opacity graph.

fuel load

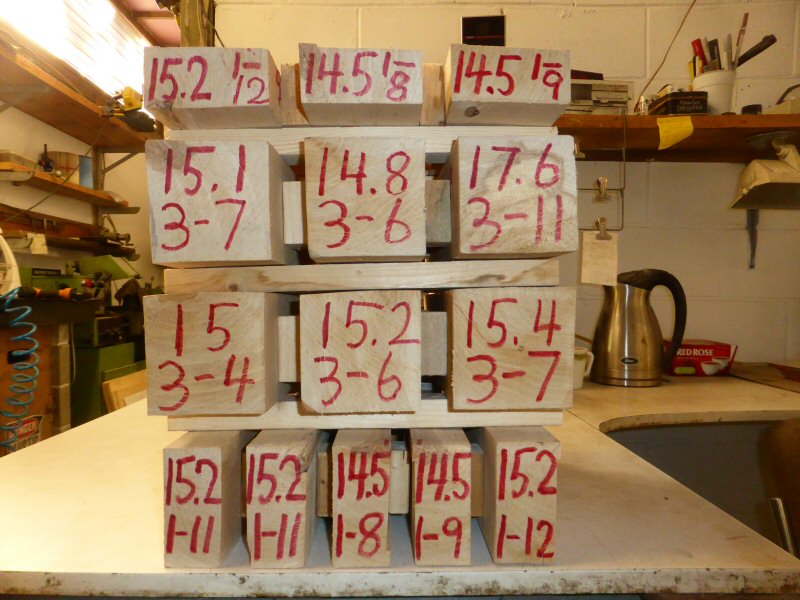

Fuel load.

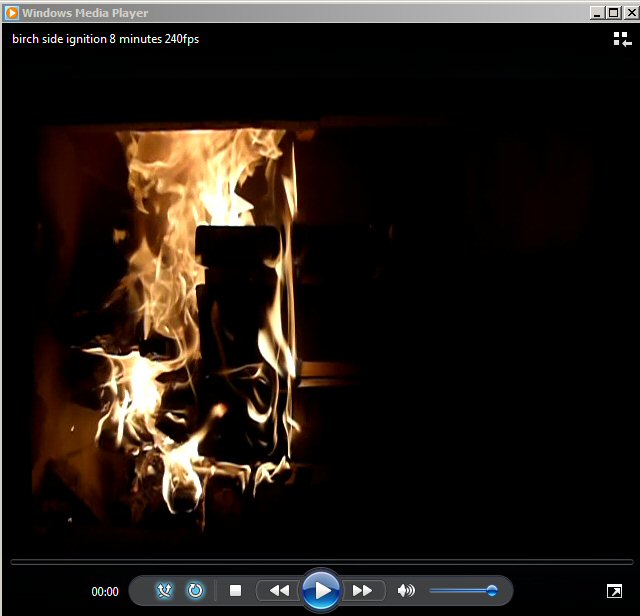

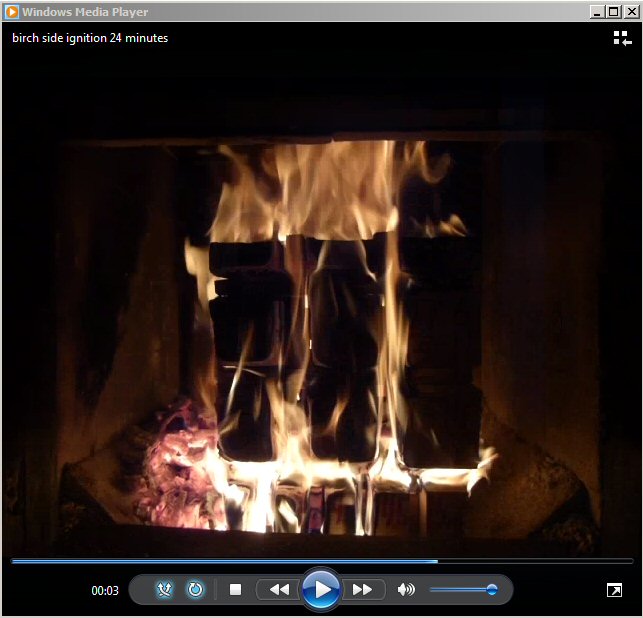

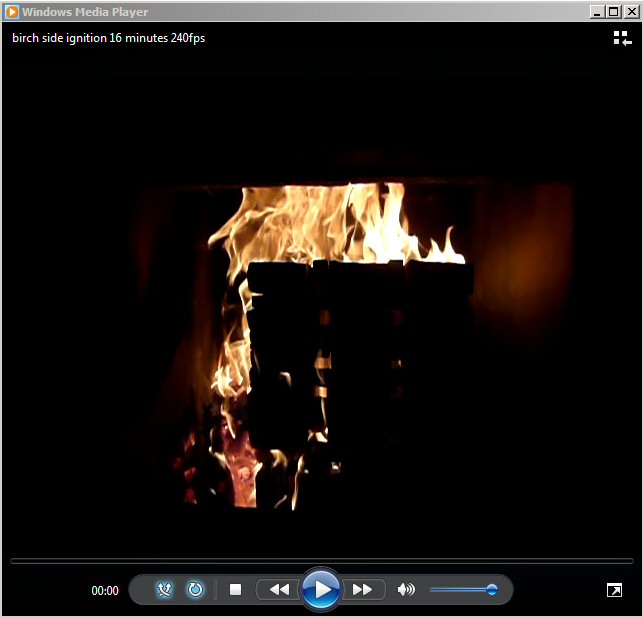

Burn sequence.
