2014 Heater Fuel Tests at Shawville

Test HK-M10
February 2, 2014

Hard maple 4x4 crib, 61.9 lbs, 20.8% moisure, 7 lbs kindling
ASTM spec for crib stacking
Stack temperature corrected for height.

Pisla HTT 602 door, 22" wide
Custom air frame, setup "C"
Rear grate reduced 50%,

3rd repeat of run HK-M07

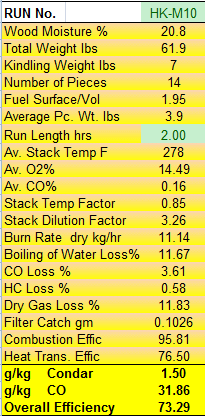

Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

Animation
Animation,  5 minute intervals.

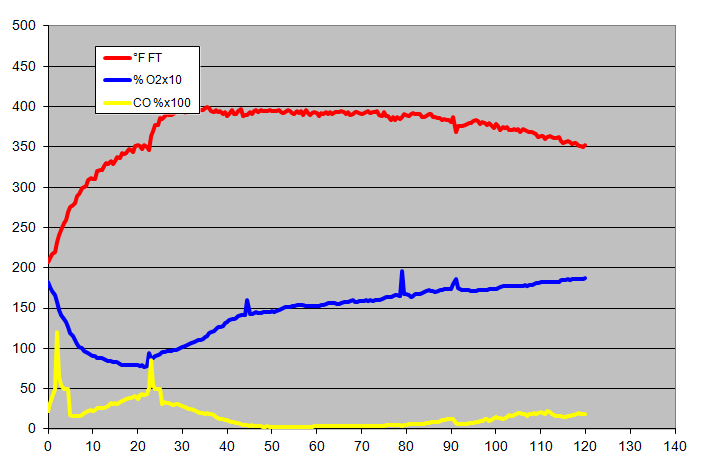

gas analysis
Flue gas
- from loading of crib onto kindling coal bed.

TESTO Excel data file

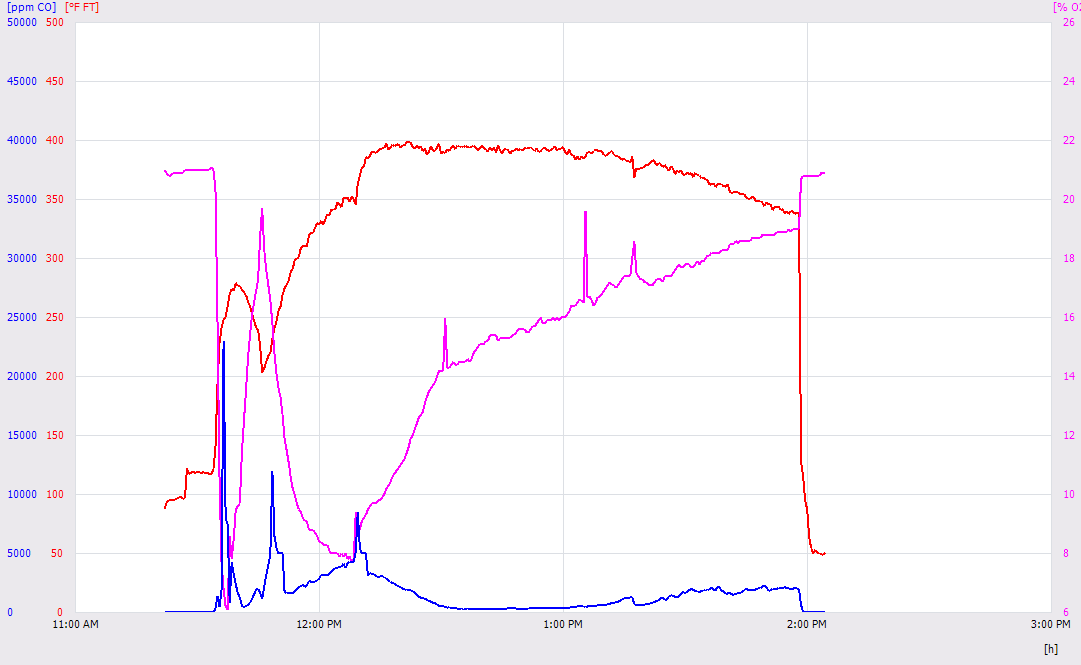

Testo graph
Testo gas graph, entire cyle

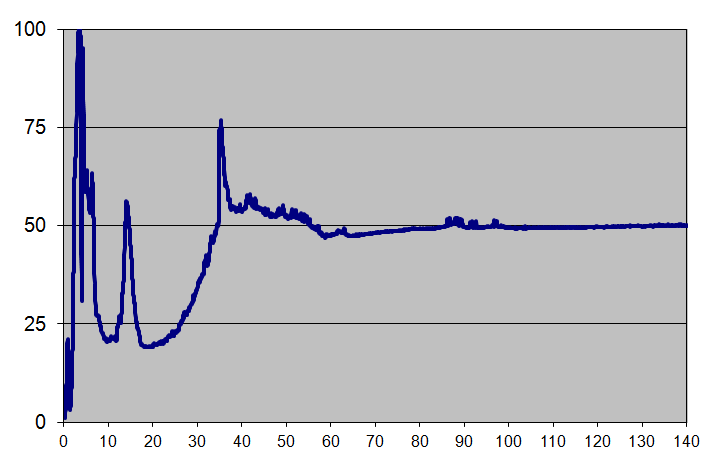

Opacity graph. First large spike is the kindling. This got the sensor dirty, hence the 50% opacity flat line for the second
half, which should be close to zero, as in previous graphs.
Opacity

fuel load

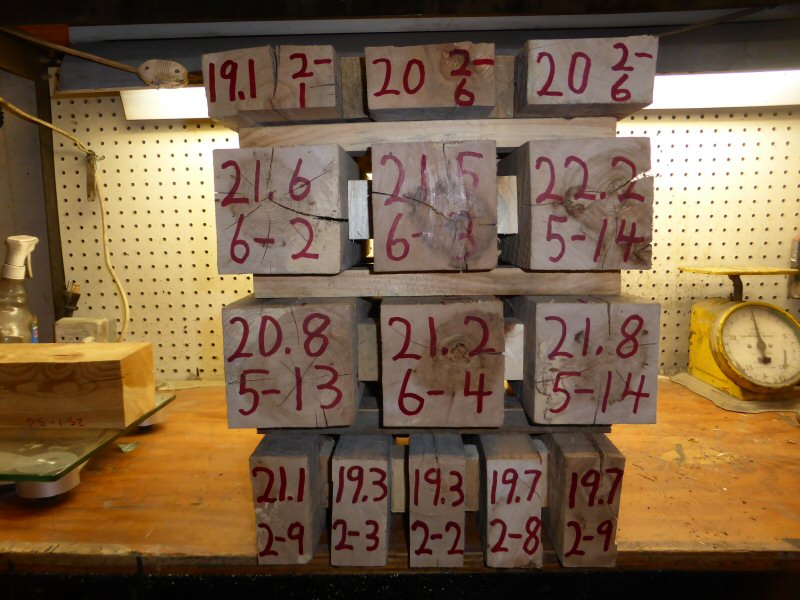

Fuel load.
Maple 4x4's were purchased by Alex Chernov in 1012, and stored inside.

fuel load
Kindling is 7 lbs of split poplar at 15.5% moisture. Reload was at 17.3 O2 (approx 70%  O2 recovery). Faster  kindling fire,
higher PM spike, lower oxygen minimum than HK-M07 - M09.
