2010 Heater Fuel Tests at Shawville

Test HK-L17
February 20, 2010

Second test of a control pair with cordwood. Matched set of fuel loads. Warm heater.
White birch, 53.1 lb total, incl. 3.75 lbs kindling. 28.3% moisture.
North-South loading. Largest pieces first. Loaded onto a coal bed (Colorado method)
Efficiency is calculated at 95% oxygen recovery (Colorado method).
Stack temperature corrected for height.

For this test, the bell attached to the heater was modified. A diverter brick was added
inside. The average stack temperature dropped 13 degrees, and the efficiency increased
by 1.5%.

Top view of bell, through the ceramic glass lid.
Gases exit the heater at the top left. Two 13.5" high bricks have been added as a diverter, with
space at the sides for bypass.
Gases enter the chimney at the lower right.

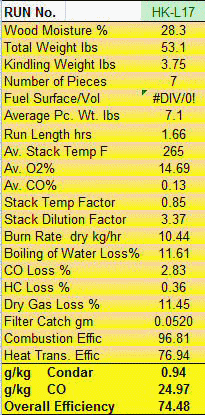

Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

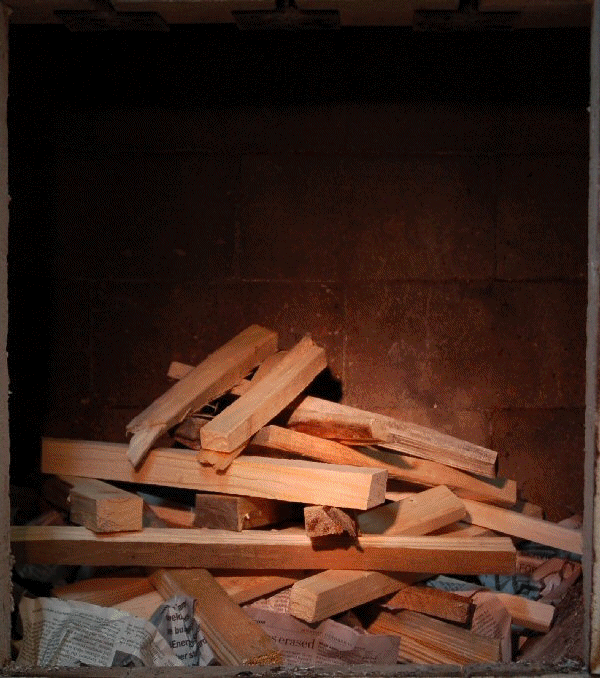

Animation, 2 minute intervals.

gas analysis

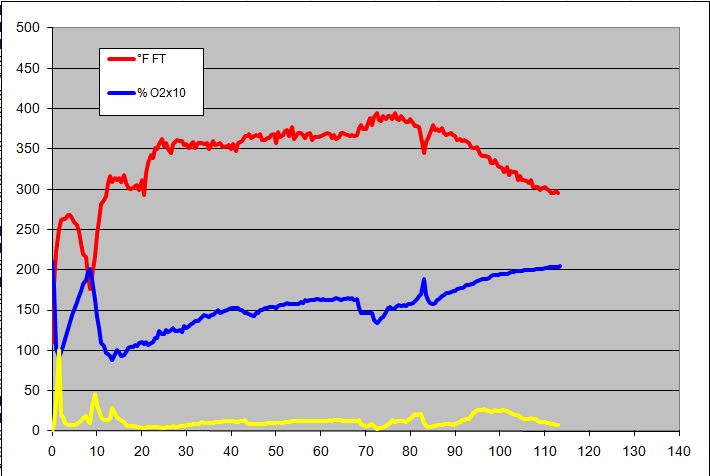

Flue gas

Testo graph

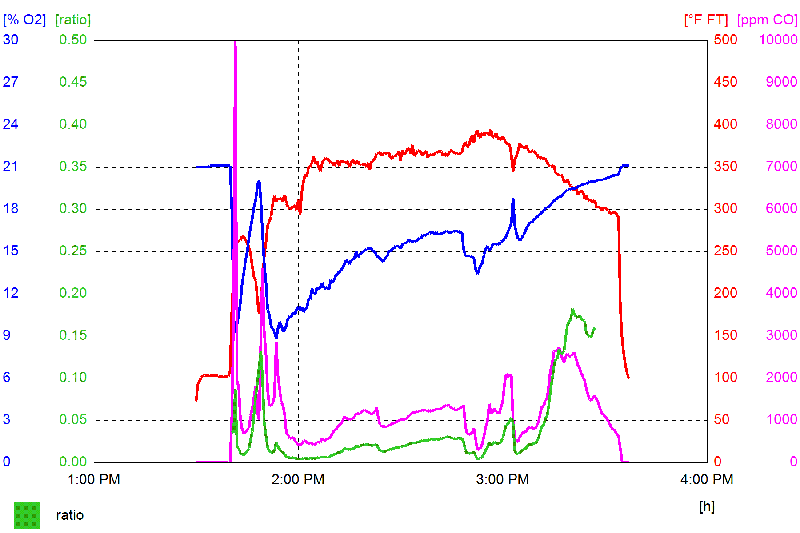

Graph from Testo analyzer. 30 second sampling intervals.
The green line tracks the CO/CO2 ratio.

TESTO Excel data file
Raw data file

First 3 minutes of data missing. The tallest spike is when the main fuel load went in (bottom ignition from the coal bed).

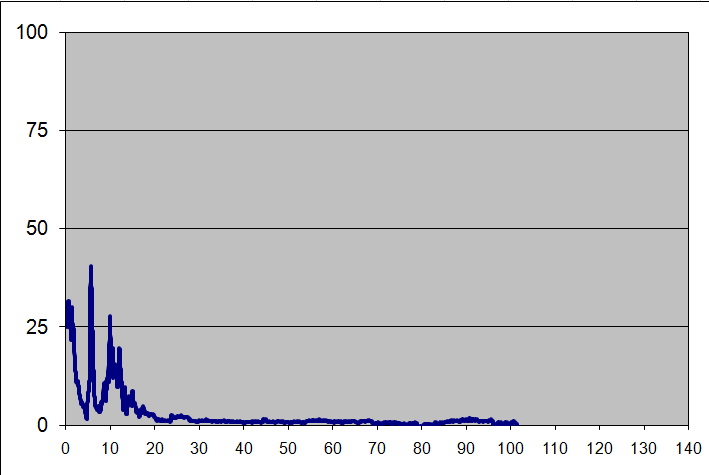

PM measurement started at 8 minutes, and does not include the kindling burn.

fuel load
Fuel load.

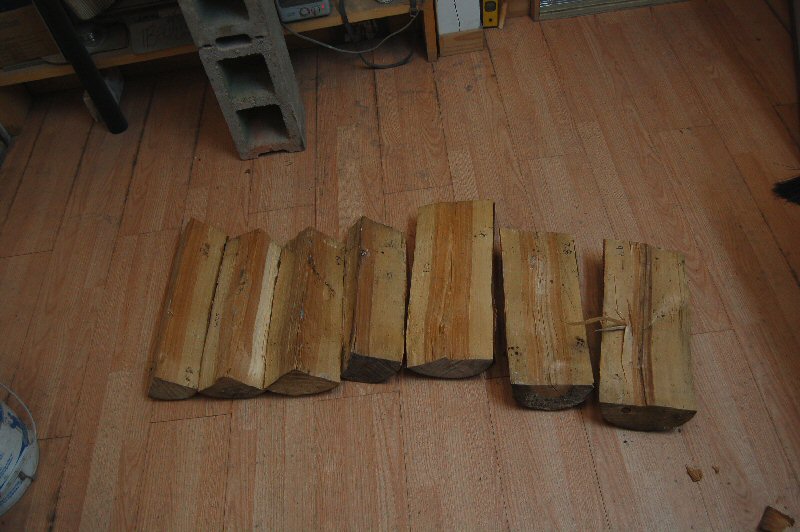

Stacking is North-South, with largest pieces on bottom, onto a coal bed.
fuel load
Fuel load. Pieces are ordered smallest to largest, left to right. Stacking was from right to left (largest pieces on the bottom).

burn sequence

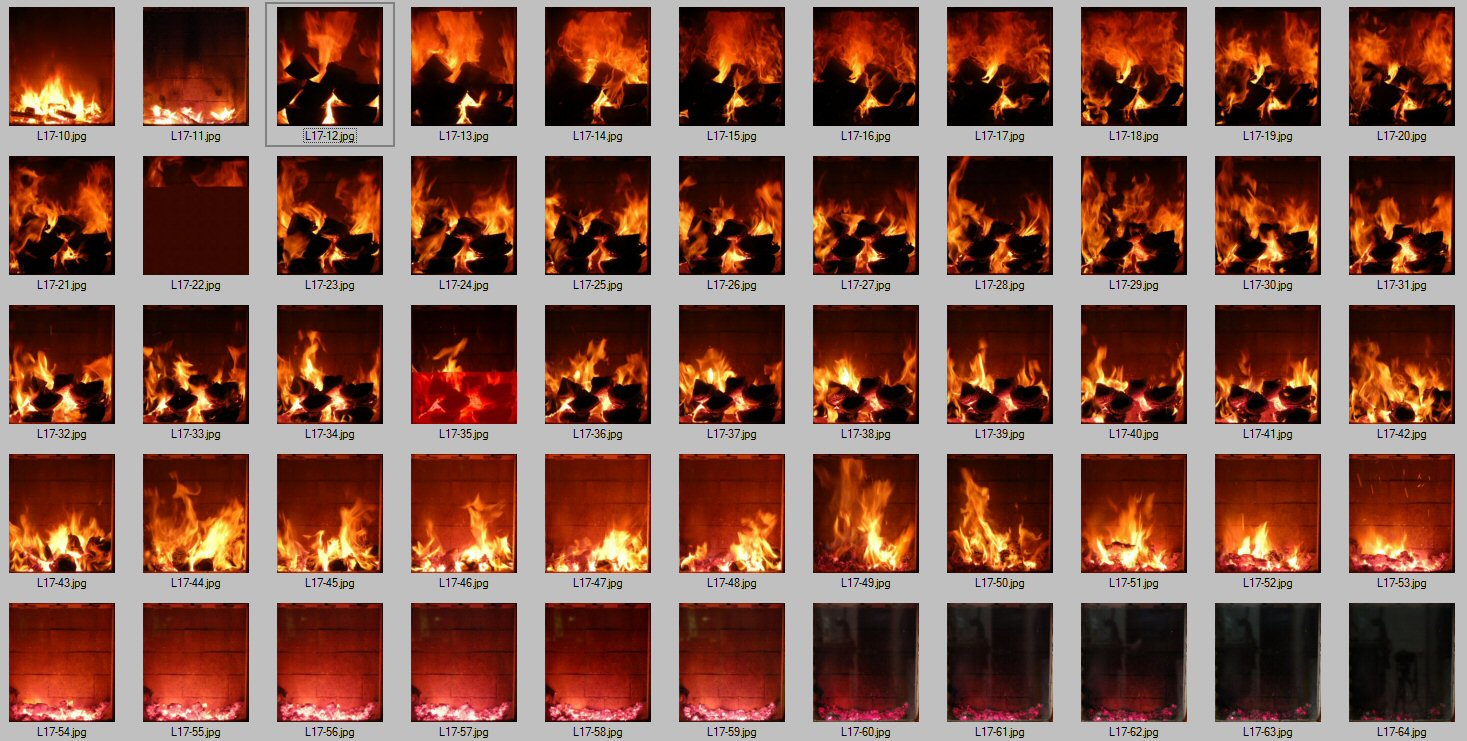

Burn sequence.
