2010 Heater Fuel Crib Tests at Shawville

Test HK-L09
January 23/10

Series 2: Test #1 of a 2 test pair with matched cribs at 16.1% moisture.Warm heater.
Colorado M-4 (MHA Fueling Protocol).
Loading factor 0.15. Reload
3.75 lbs kindling + 25.8 lb crib (16.28% moisture) + reload w. 25.8 lb crib (15.82% moisture).
Efficiency is calculated at 95% oxygen recovery (Colorado method).
Stack temperature corrected for height.

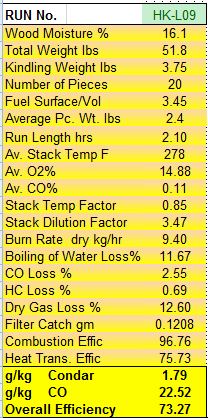

Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

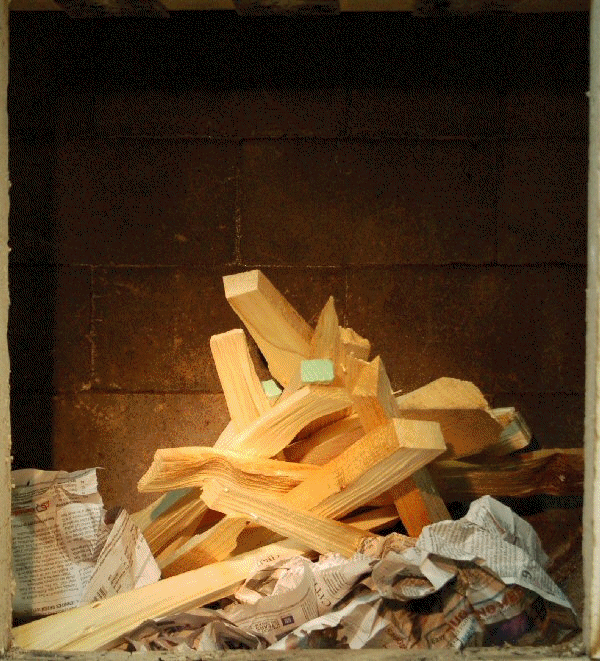

Animation, 2 minute intervals.

gas analysis

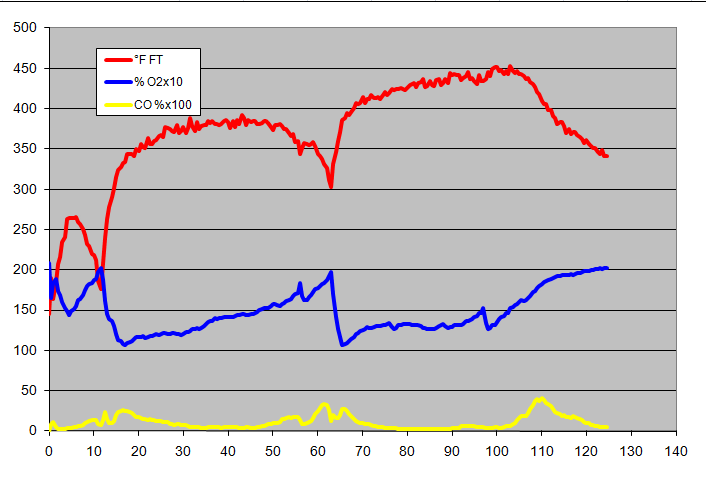

Flue gas.

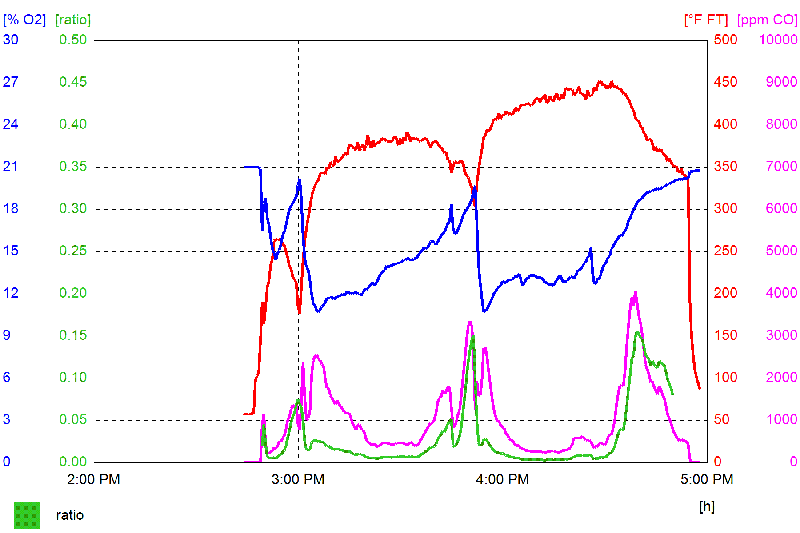

Testo graph L09
Graph from Testo analyzer. 30 second sampling intervals.
The green line tracks the CO/CO2 ratio.

TESTO Excel data file


fuel load

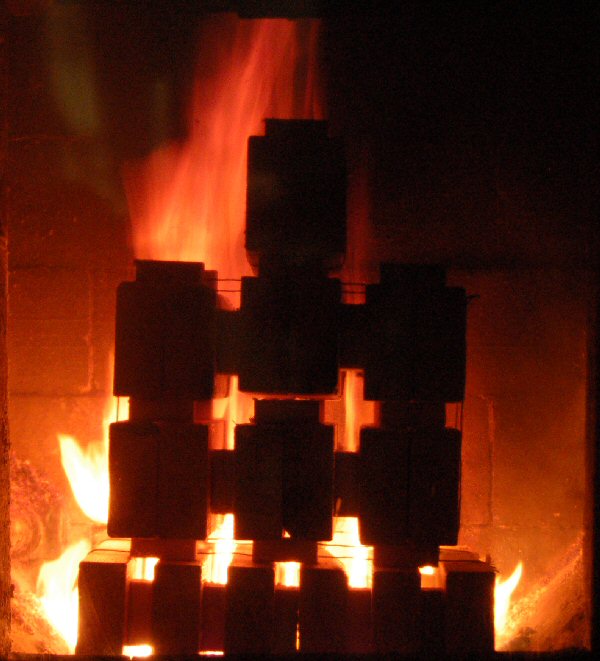

First crib.

Detailed crib moisture statistics. The top 2 cribs were used for this test.

Burn sequence L09

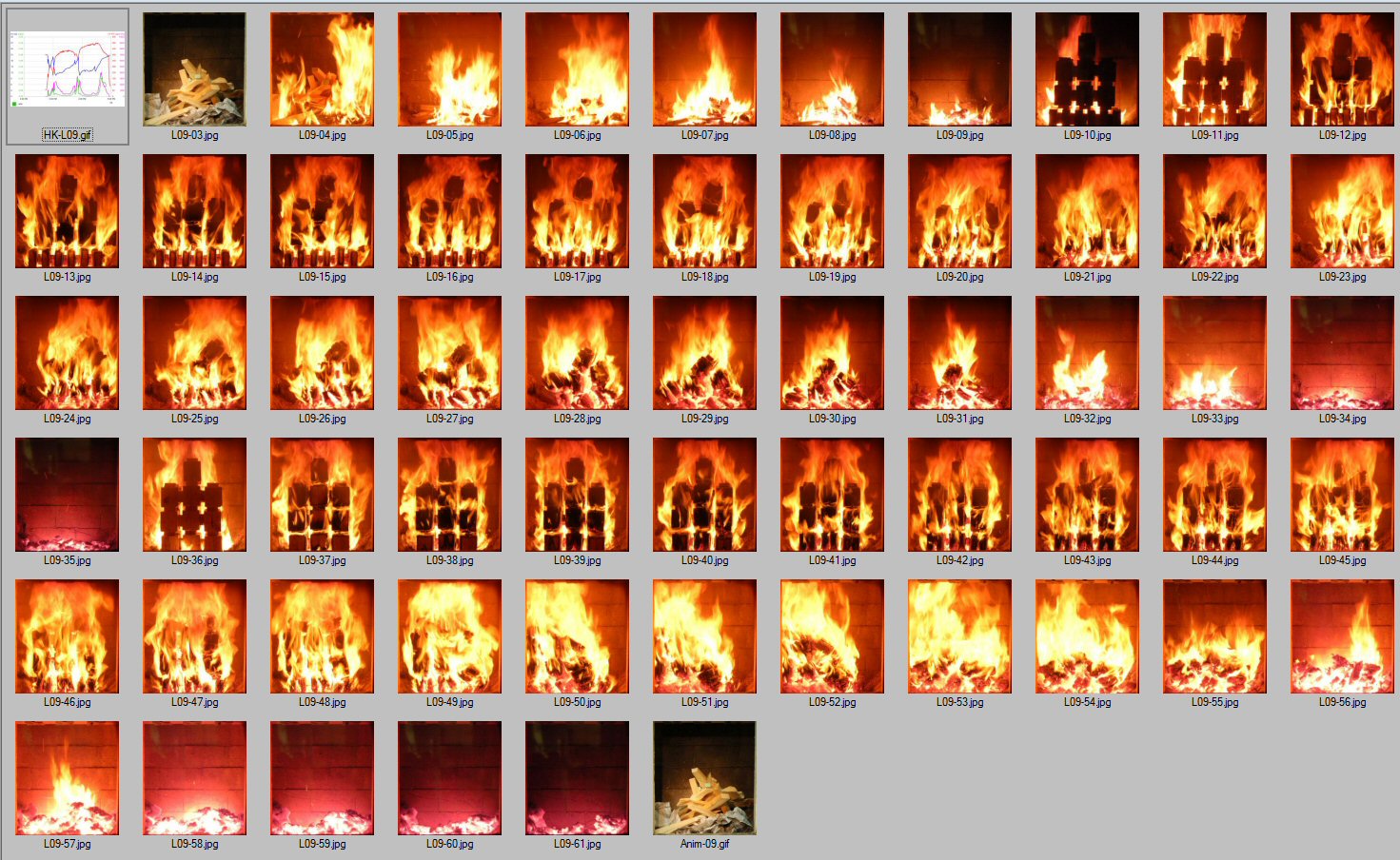

Burn sequence.
