2009 Heater Tests at Shawville

Test HK-K12
January 19/09

Warm heater
White Birch, 20% moisture
7 pieces, 4.5 lbs kindling, 63.0 lbs total

Air closed at 115 minutes. Damper cut back. Closed at 275 minutes.
Somewhat tight stacking, resulting in a bit of PM.
Large kindling, slower start.

Animation HK-K
Animation, 2 minute intervals.
Yellow flames that are not real hot look a lot redder with a digital camera, which is very sensitive
in the near-infrared range.

gas analysis
Flue gas
Notice the very even oxygen curve, lacking a dip at the beginning, and a corresponding CO spike.
Poke at 55 minutes. Largest bottom piece placed on top, so that it will burn with the others.

TESTO Excel data file


Condar Spreadsheet Results
Condar Spreadsheet Results

Condar Spreadsheet (includes detailed fueling data)

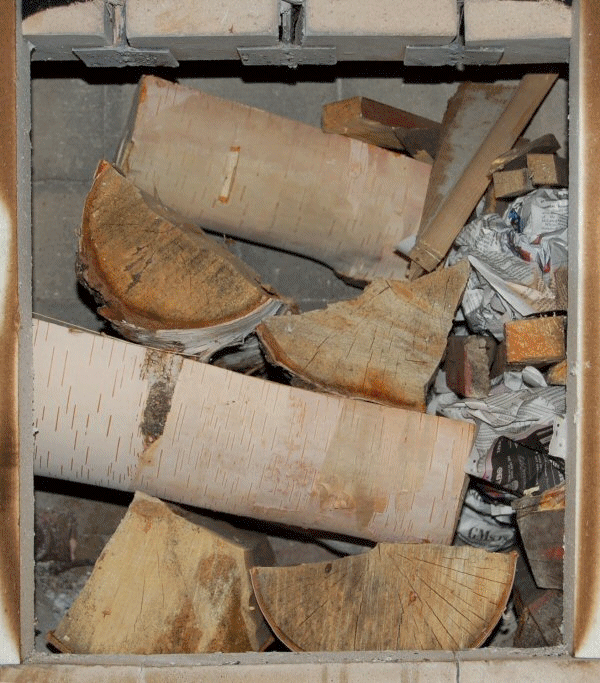

Fuel stack. Kindling is on the right side, layered with newspaper.

fuel pile

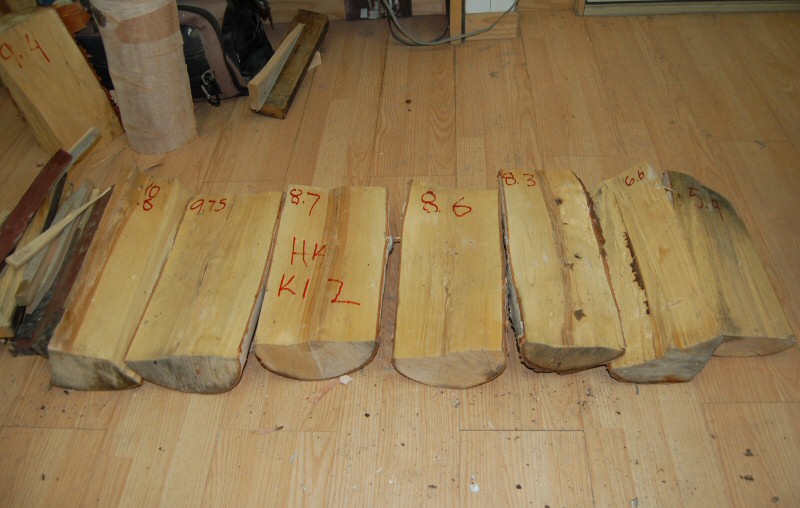

Fuel pieces, numbered 1 - 7 from left to right, heaviest to lightest piece.
