2007 Heater Testing at Shawville

Test HK-H18
March 10/07

Large maple. Medium warm heater. 49lbs
Previous fire: 36 hours.
Grate air closed. Ashbox door open (similar to old HeatKit air)
Slow start after kindling burned.
Low opacity (particulates), medium CO, medium efficiency.
For a lukewarm heater with this air supply, the fuel was too large for
the load size. A better burn would be had with smaller fuel, or more fuel.

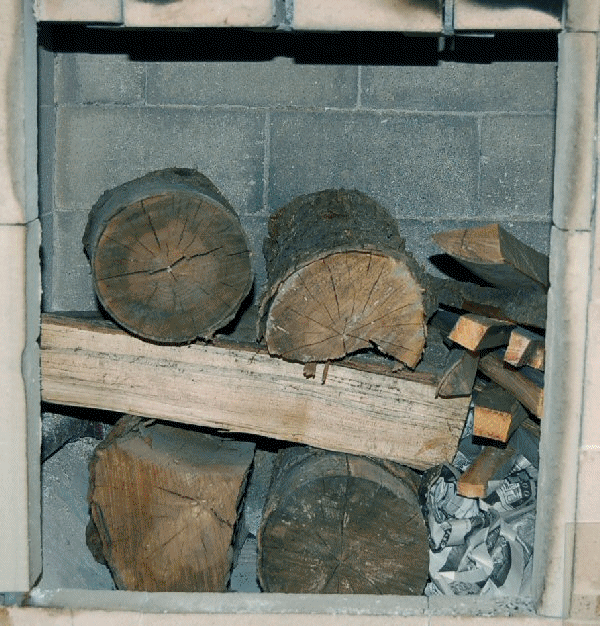

Animation HK-H
Animation, 2 minute intervals.

gas analysis

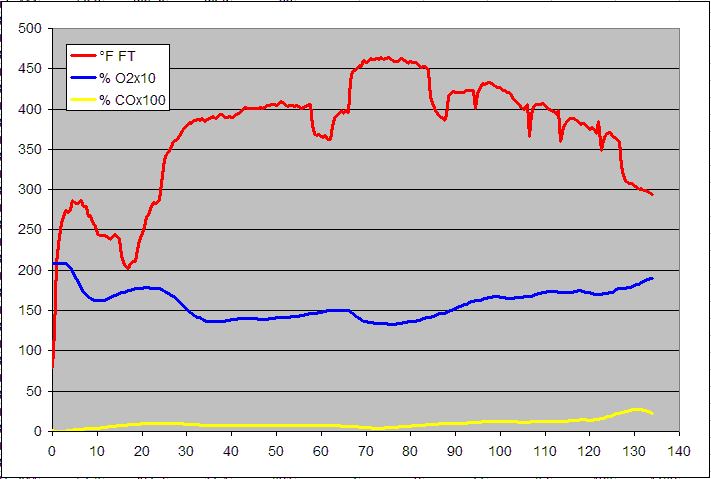

Flue gas analysis

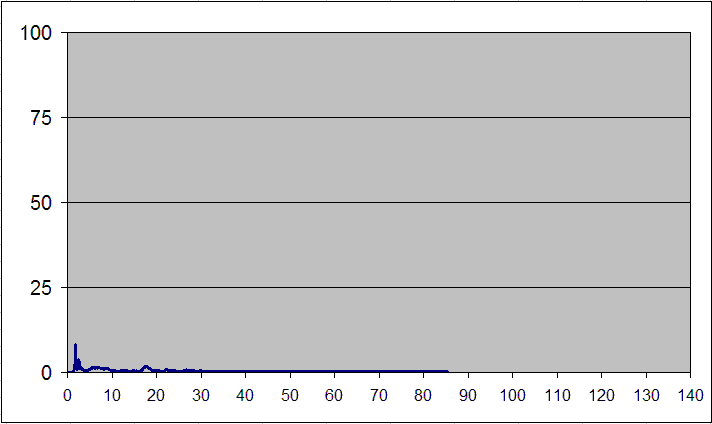

Ohm reading: 250 start, 261 finish. Likely 11 ohm drift from deposit on the mirror, or lamp fading.
At 24 minutes, reading was 273 ohms, and a very slight amount of blue smoke was visible from chimney exit.
At 34 minutes, reading was 265 ohms, and no smoke was visible.

Fuel Load

TESTO Excel data file

Fueling data
