2007 Heater Testing at Shawville

Test HK-H09
February 25/07

Mixed.
19% moisture (estimated)
7 pieces , stacked 2221. Left side ignition.
Cold heater. 3 days since last burn.
Air open. Air setting unchanged during burn.

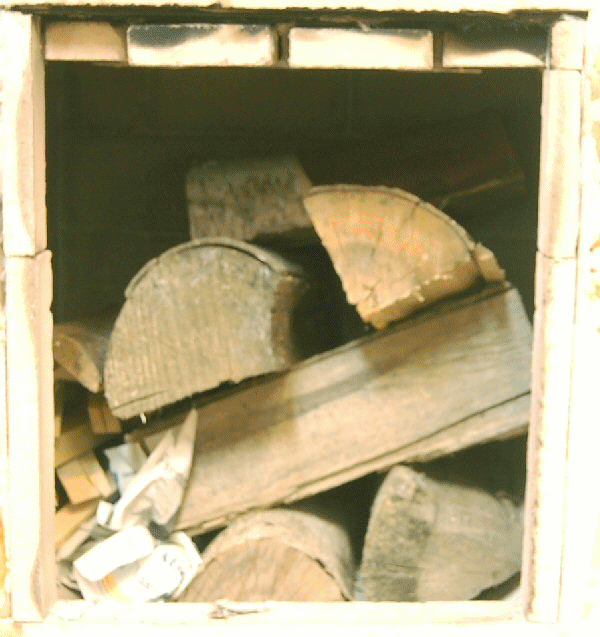

Animated Gif below, taken at 2 minute intervals.
test 070222

gas analysis

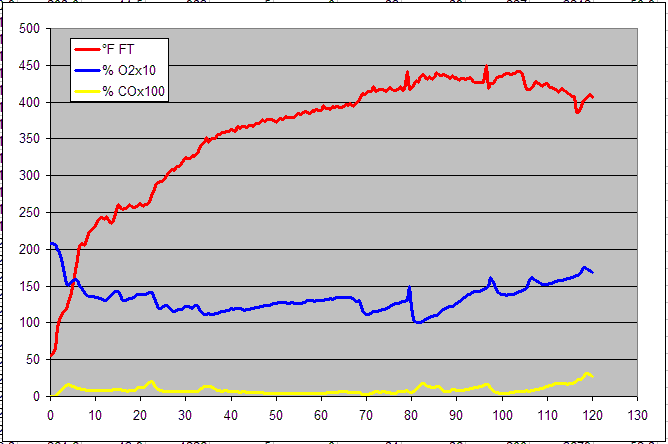

Flue gas analysis

opacity

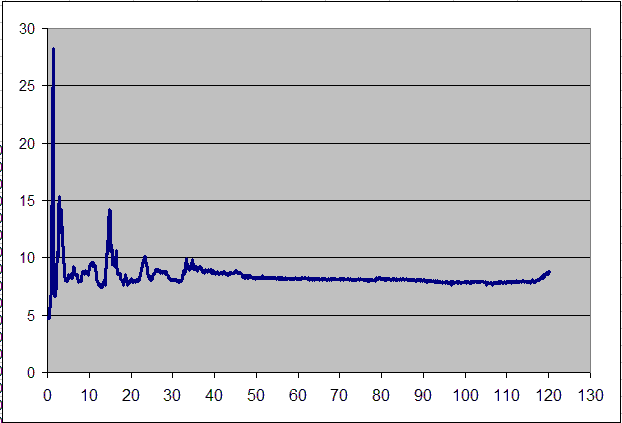

Opacity.
The laser light source has been replaced with a flashlight. There seemed to be aborption of the laser by CO2 in the flue gas,
giving a positive offset to the opacity reading. Note that there are no dips corresponding to pokes of the fire.
Scaling issues to be investigated. More notes to follow.

HK08 fuel load
Fuel Load

TESTO Excel data file

Fueling data
