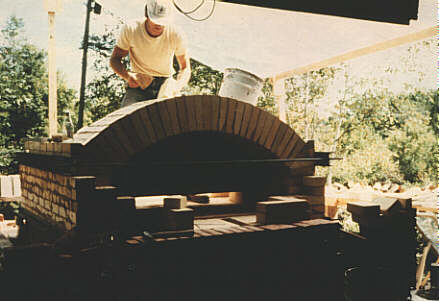

Commercial Bakeoven Designs

French

drawing

German, 1930's

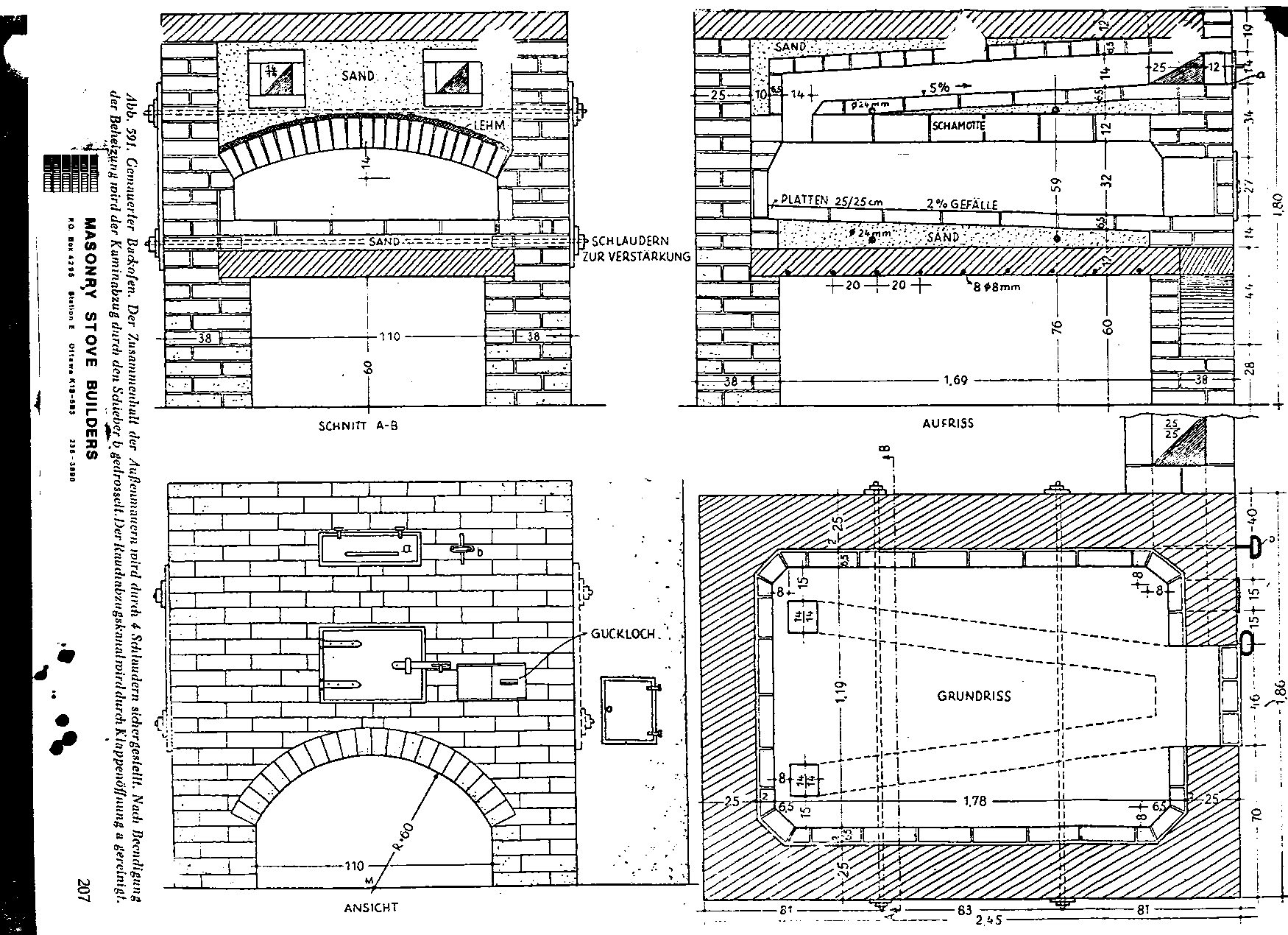

This design appears in a German masonry textbook from the 1930's. Click on image for additional detailed views (82 Kb).

Spanish Fajas

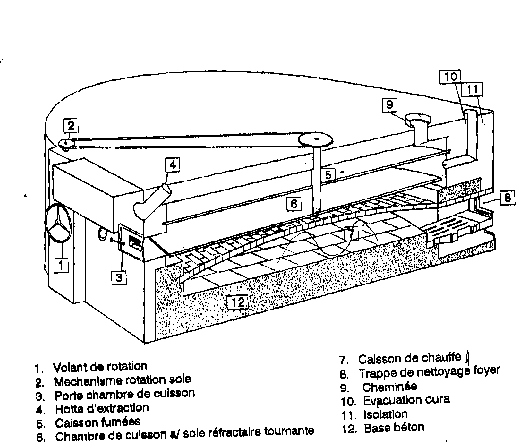

This is a current commercial Spanish oven with a round revolving hearth. We have seen versions of this oven in New Orleans, Montreal, and Berkely. Click on image for enlarged drawing with additional details. Click on thumbnail photos below for larger views.

Main loading door. Unloading is done at a separate door.

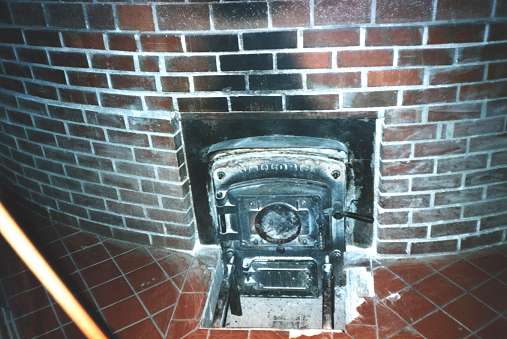

Firebox

Detail inside firebox
