CHIMNEY

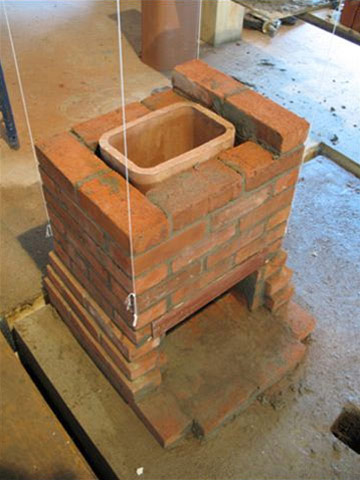

The chimney consists of an 8 x 12 inch clay tile surrounded by 7 bricks, which, with bricks of this format, leaves a half inch free space between the tile and the brick. This half inch free space is a code requirement. To ensure the space remains free, it is necessary to build up two feet of brick and insert a 2 foot tile, rather than the contrary.

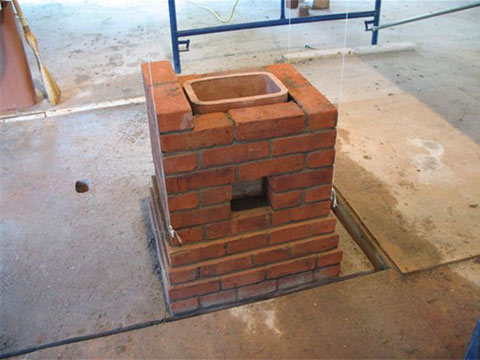

By code the chimney must have an access door.
This door also gives access, through the chimney flue, into the heaters manifold to which it is connected.

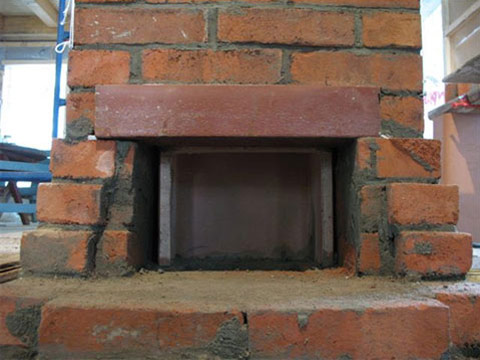

The chimney's point of connection to the heater. In this case the connection will be the middle of the right side channel.

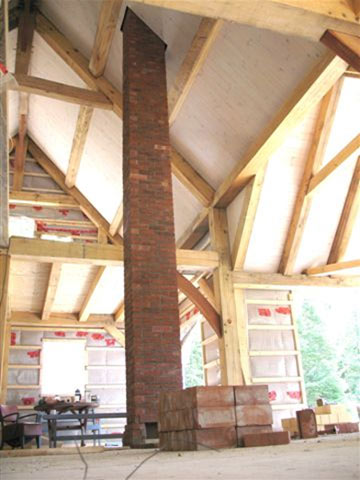

Plumb lines are set, and followed until the brickwork reaches the ceiling.

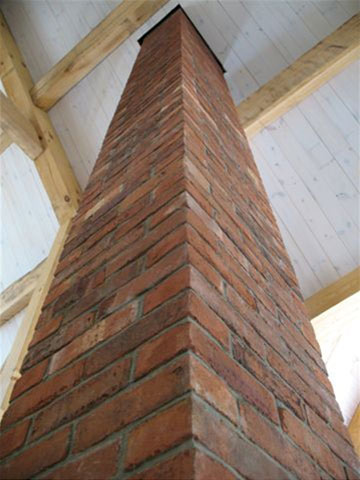

The finished chimney.

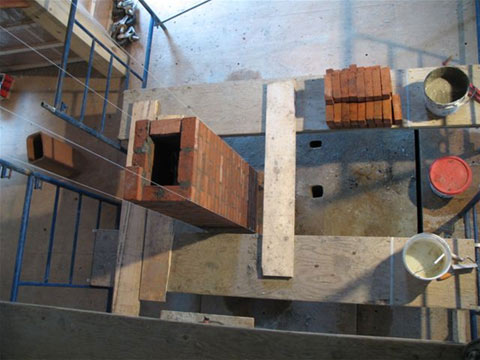

View from course 10 up.

There are several ways of closing the smoke path.
The guillotine damper illustrated is made of one quarter inch thick steel and is inserted between two liner tiles. A plate, not shown here, slides into the frame through a slot in the chimneys brick work, allowing the chimney to be closed after each fire, and variable adjustments to the draw to be made during combustion.

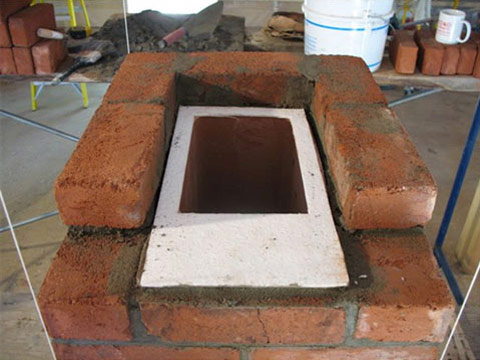

The damper frame plate is cushioned with a ceramic paper gasket, between it and the two tiles between which it is installed.
These dampers are usual installed 6 feet up the face of the chimney, ideally within view of the heaters fire box, allowing instant visual assessment of the fire immediately after each adjustment.

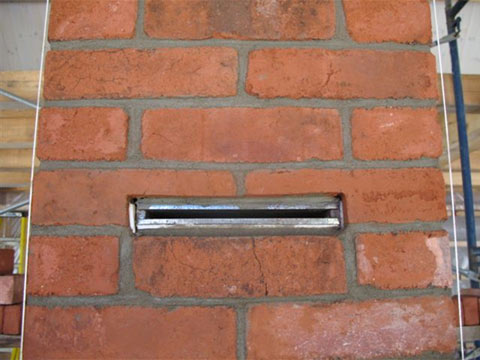

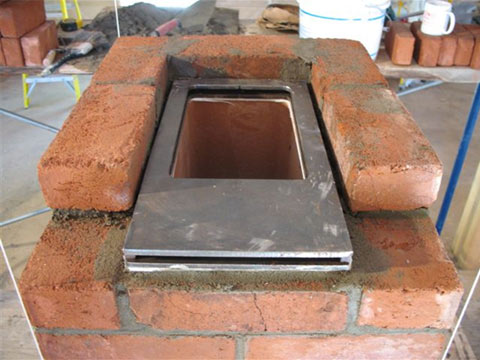

The installed frame before the cover plate is attached.

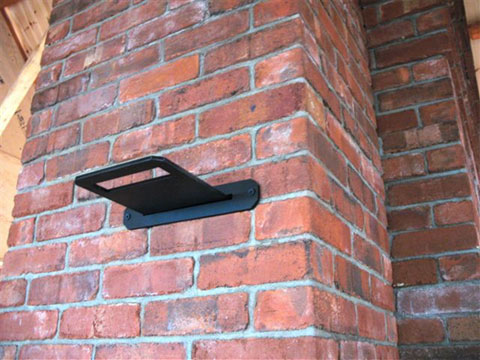

Damper with cover plate. This image is of a double flue chimney. Not the single flue chimney in the previous or following images.

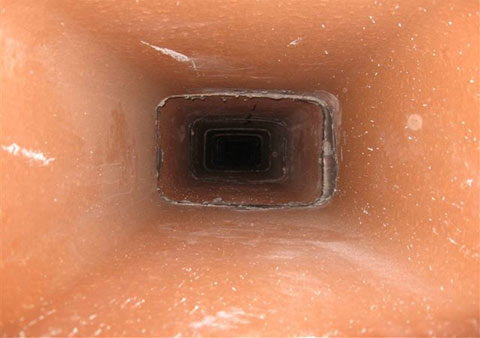

View inside the 6 x 10 inch flue. Exterior dimensions of the tile are 8 x 12. Layed in refractory mortar.

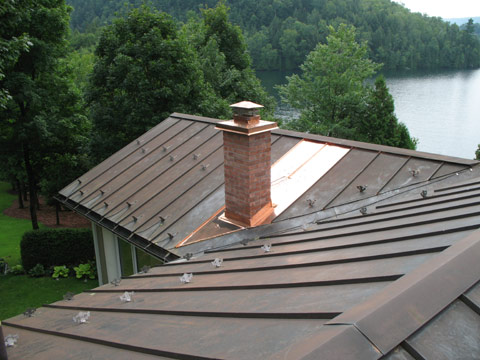

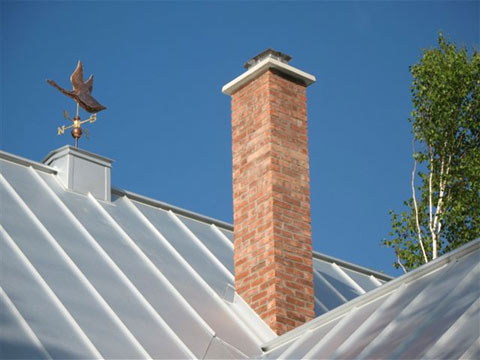

The exterior portion of the chimney. The chimney is finished with an air entrained concrete cap, with drip line, and stainless steel rain hat.

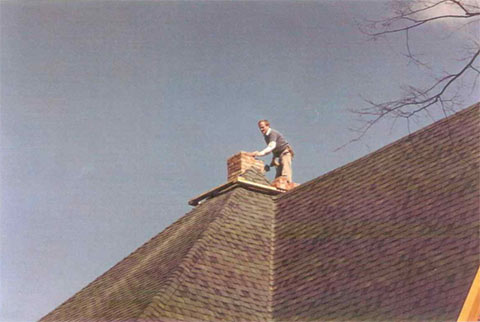

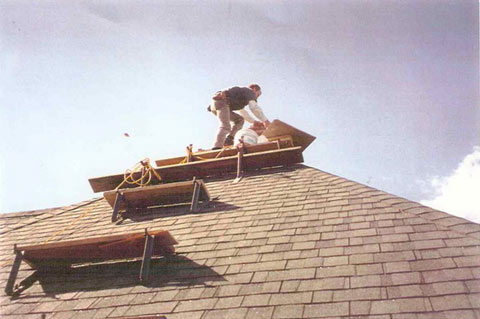

This chimney will rise three feet above the roofs pinion.

The building code requires that the chimney be at least 2 feet higher than any object within a 10 foot radius, and three feet higher than the lowest point at which the chimney breaks through the roof. The tile must protrude 3 inches above the cap.

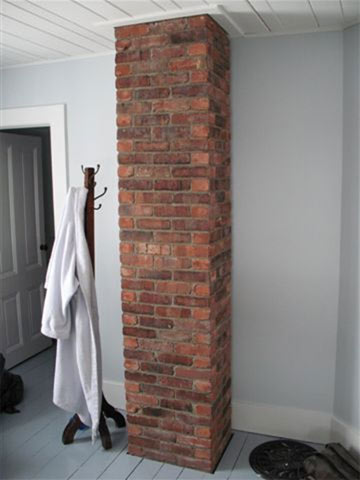

This single flue chimney passes through a bed room on the upper floor. The round black grill on the floor allows heat to rise into the room, from directly above the heater.

Keeping weather off, and out of, the chimney and especialy the tile is of importance. Rain entering the flue will cause the damper frame to rust and may wash out the refractory mortar from the joints between the tiles.
