2007 Free Gas Movement (FGM) Tests

Test HK-I05
October 14/07

White birch, 20% moisture
Previous fire: 20 hours.
Medium to large wood, large load of kindling (7 lbs)
Very dirty burn - too much kindling, overamped the fire, couldn't get enough air.
Large bottom piece on left partially blocked both front and rear air supplies.
Reference dirty burn.

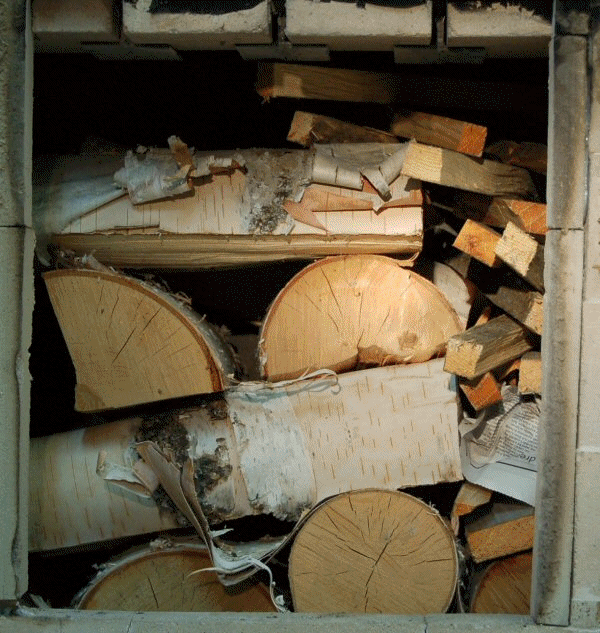

Animation HK-H
Animation, 2 minute intervals. 60 frames.

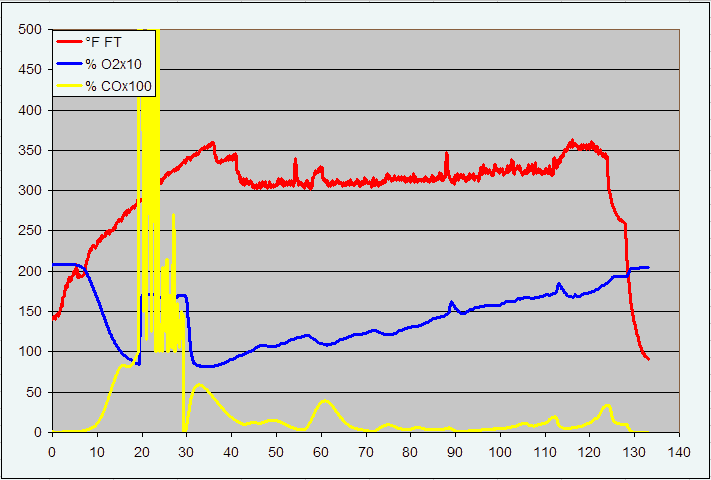

gas analysis
Flue gas

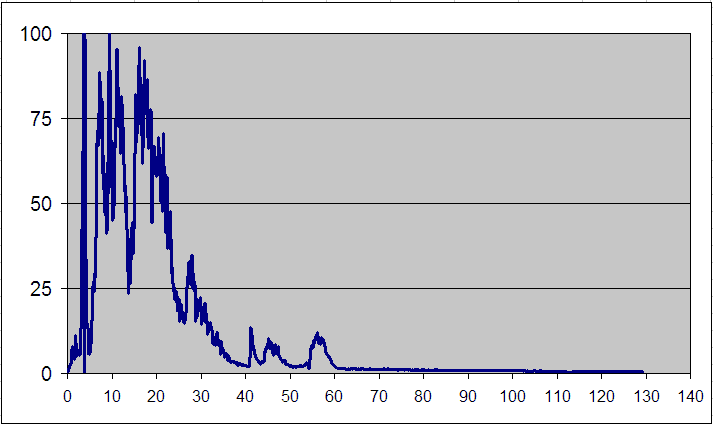

opacity
Opacity.

HK
Fuel stack. Kindling on left.

HK

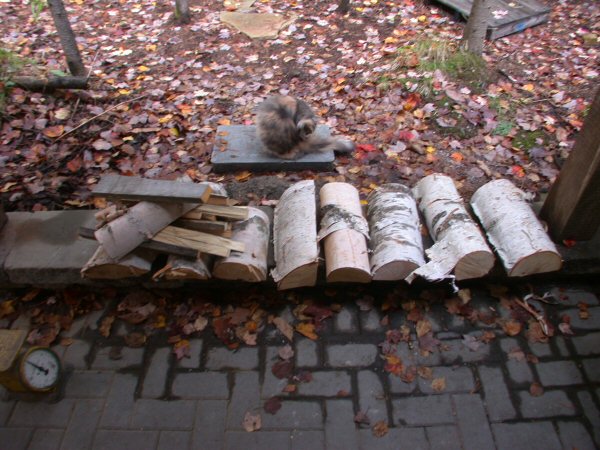

Fuel pieces 1-8, left to right. 3 lbs kindling on left.

TESTO Excel data file

Fueling data (not posted yet)
