2007 Free Gas Movement (FGM) Tests

Test HK-I04
October 13/07

White birch, 20% moisture
Previous fire: 24 hours.

Animation HK-H
Animation, 2 minute intervals. 60 frames.

gas analysis

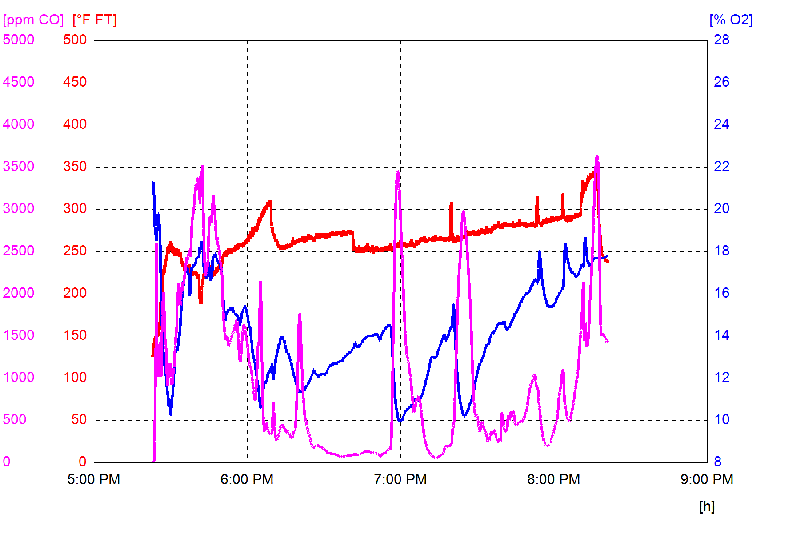

Flue gas analysis

This is the graphic file from the analyzer. The dataset was lost due to a software glitch, so no Excel graph in standardized format is available.
CO curve is scaled differently and not directly comparable to the Excel graphs.

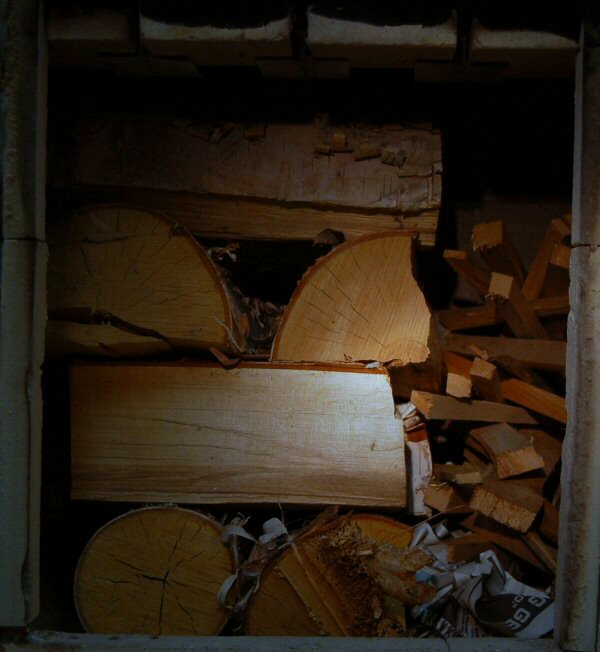

Fuel stack. Kindling on left.

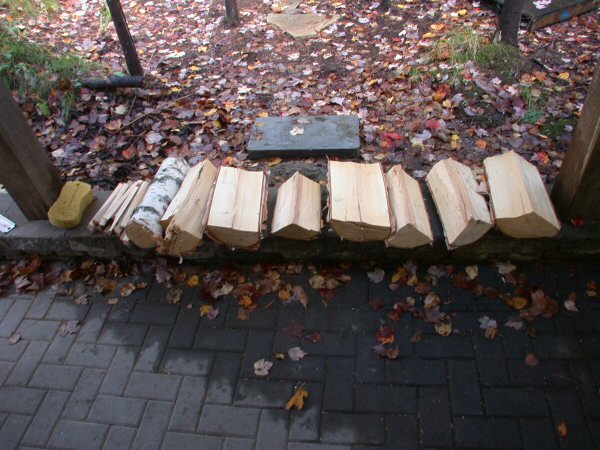

Fuel pieces 1-8, left to right. 3 lbs kindling on left.

TESTO Excel data file

Fueling data
